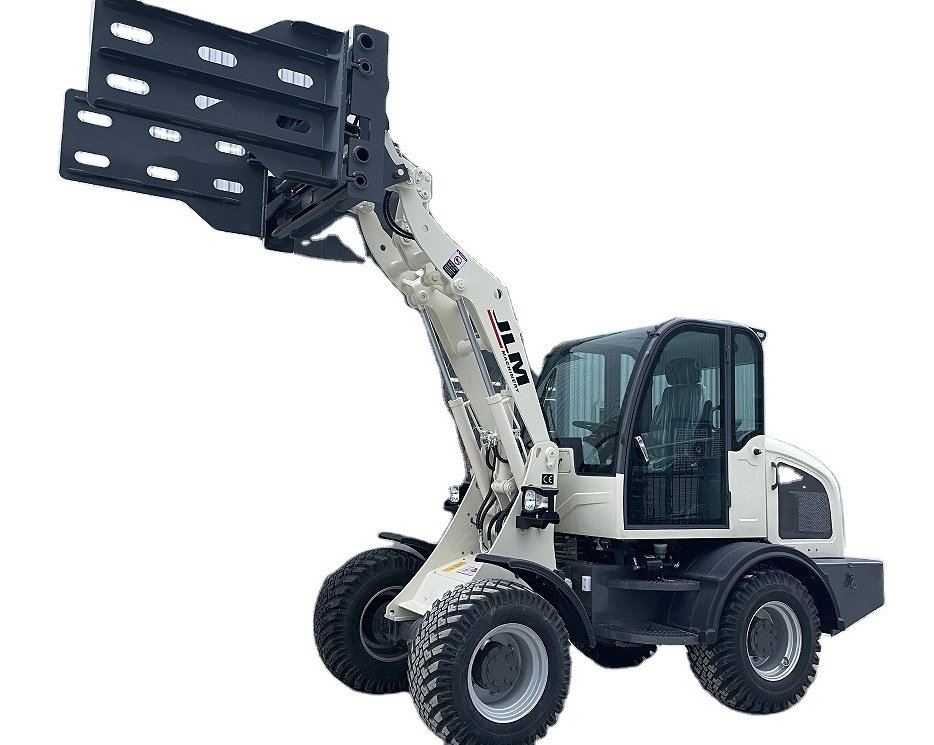

1 ton 2 ton 3 ton JIELI Wheel loader with joystick control made in CHINA
1 ton 2 ton 3 ton JIELI Wheel loader with joystick control made in CHINA
1 ton 2 ton 3 ton JIELI Wheel loader with joystick control made in CHINA
1 ton 2 ton 3 ton JIELI Wheel loader with joystick control made in CHINA
1 ton 2 ton 3 ton JIELI Wheel loader with joystick control made in CHINA
1 ton 2 ton 3 ton JIELI Wheel loader with joystick control made in CHINA
1 ton 2 ton 3 ton JIELI Wheel loader with joystick control made in CHINA
1 ton 2 ton 3 ton JIELI Wheel loader with joystick control made in CHINA

1 ton 2 ton 3 ton JIELI Wheel loader with joystick control made in CHINA

FOB Reference Price: Get Latest Price
≥1 Sets
US $8500
≥3 Sets
US $8300
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Shandong, China
Dimension(Long * Breadth * High):
5000mm*1700mm*2650mm
Machine Weight:
3860 kg
Bucket capacity:
0.7m3
Color:
Customization

Quick Details

Engine Brand:
XinchaiA498BT1/Xinchai4102/Yanmar
Power:
36.8/53 kw
Brand Name:
Jieli
Place of Origin:
Shandong, China
Dimension(Long * Breadth * High):
5000mm*1700mm*2650mm
Machine Weight:
3860 kg
Bucket capacity:
0.7m3
Color:
Customization
Product Overview

JIELI 1.5 ton earth- moving construction machinery mini wheel loaders

This Mini Excavator delivers power and performance in a compact size to help you work in the tightest applications. Its ability to fit through a narrow doorway makes it an excellent machine for indoor demolition work.
FEATURES AT A GLANCE
SMALL TURNING RADIUS
COMPACT DIMENSIONS
TWISTED JOINT
UNDERCARRIAGE
SAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY
EXTENDING
QUICK-CHANGE CONNECTOR
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Main Specification for ZL15
Item
Data
1
Model
ZL-15
2
Rated load(kg)
1500
3
Bucket capacity(m3)
0.8
4
Wheel distance(mm)
96kN
5
Axle-base(mm)
96kN
6
Loader clearance radius(mm)
60kN
7
Mini base to the ground(mm)
310
8
Dump clearance(mm)
2700
9
Distance acc.to the height(mm)
900
10
Time of raise(s)
4
11
Hydraulic cycle time(s)
8.5
12
Turns to pick the strength mose greatly(kn)
45
13
Drive ways
four are drive
14
Torque Converter Model
YJ280
15
Gear Shift
2 forward & 2 reverse shift
4 forward & 4 reverse shift
16
Tyre size
15.5/60-18
17
Operating weight(kg)
4000
18
Overall dimensions(mm)
5000*1700*2550
19
Engine model
Xinchai euro-3,Yunnei Euro-5
20
Engine Type
Four strokes, Water cooling, Inline, injecting combustion chamber
21
Cylinder No.-Bore*Stroke(mm)
4-102*115
22
Engine rated power(kw)
45KW
23
Engine rated output(rpm)
2500
Packing & Delivery

Install the cabinet

All our products are fully protected when entering the shipping cabinet, which is to show the best side of the products to customers

Assistive device in the cabinet

For accessories, we will try our best to put together with the product, so that customers can save a fee, if not put down, we will think of other ways
Why Choose Us
Our products use modern spraying process, accessories molding once, not only in the appearance of more outstanding, in the protection of products has been greatly improved
Hinge joint
Our products are all hinged connections, which are more flexible and maneuverable than other products.
Seventeen years of experience
QINGZHOU JIELI is an old brand, we continue to wash in the long river of history, continuous improvement, continuous progress, is now a set of development, manufacturing, sales as one of the large factory, we are not only selling products, but also service customers, we and other customers so many years of cooperation, has become a close friend, constantly learn from each other, Mutual progress
Attachment
Our auxiliary equipment
We have a wide range of accessories, such as Pallet fork、 Hydraulic fork、 EU grapple fork、 Grapple fork、 360 rotating fork、 4 in one bucket、 Digger bucket、 Grapple bucket、 Gain bucket、 Mixer bucket、 Rock bucket、 High-dumping Bucket、 Salt Spreader、 Ditcher and so on， We can also customize it.
SIMILAR PRODUCTS
FAQ
Q: Are you a manufacturer?
A: Yes, we are a professional R&D and manufacture of small construction machine in China.
Q: Can you make custom machines?
A: Yes, we can supply custom machines according to your requirements.
Q: How is your after-sales service?
A: We have A number of after-sales services that provide 24-hour technical support via phone and mail.
Q: What is your lead time?
A: It takes 20 days for normal goods and 30 days for customization.
Q: Is it convenient to visit your factory? How do I get there?
A: Welcome you to visit our factory. We'll pick you up when you arrive.
