Quick Details
-
Material:
-
Carbon steel ASTM A105, A350LF2, SS304, SS316,
-
Standard:
-
ANSI B16.11 , MSS SP-79,BS1740,BS3799
-
Techonology:
-
Forged
-
Type:
-
elbow, coupling, cross, half coupling, bushing, plug, etc)
-
Wall thickness:
-
SCH80, SCH160, XXS
-
Pressure:
-
socket-weld 3000, 6000, 9000LBS, threaded: 1000,2000, 3000, 6000LBS
-
Treatment:
-
anti-rust oil, Galvanized
-
Color:
-
primary or yellow/blue zinc
-
Size of raw material:
-
DIA. 19-85MM ROUND BAR
-
Application:
-
Petroleum, chemical, machinery, electric power, shipbuilding, , etc.
Quick Details
-
Technics:
-
Forged
-
Shape:
-
Equal
-
Head Code:
-
Square
-
Material:
-
Carbon steel ASTM A105, A350LF2, SS304, SS316,
-
Standard:
-
ANSI B16.11 , MSS SP-79,BS1740,BS3799
-
Techonology:
-
Forged
-
Type:
-
elbow, coupling, cross, half coupling, bushing, plug, etc)
-
Wall thickness:
-
SCH80, SCH160, XXS
-
Pressure:
-
socket-weld 3000, 6000, 9000LBS, threaded: 1000,2000, 3000, 6000LBS
-
Treatment:
-
anti-rust oil, Galvanized
-
Color:
-
primary or yellow/blue zinc
-
Size of raw material:
-
DIA. 19-85MM ROUND BAR
-
Application:
-
Petroleum, chemical, machinery, electric power, shipbuilding, , etc.

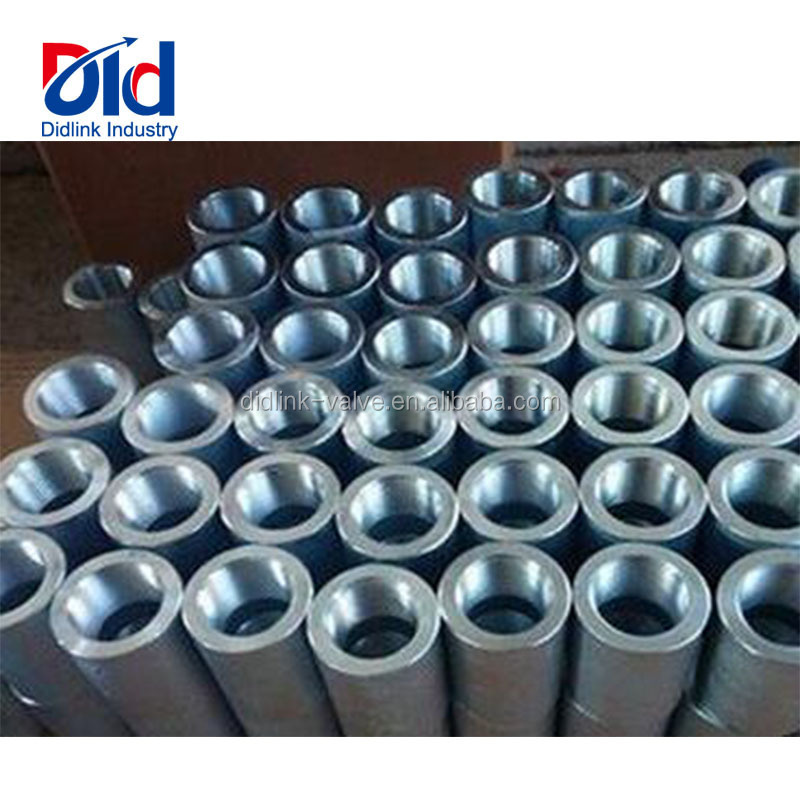

Industrial Pipe And Fitting Copper Water Waste Ansi B16.11 Sch80 2 " Socket Coupling 3000lbs
|
HIGH PRESSURE FORGED STEEL PIPE FITTING |
|
|
Material |
Carbon Steel: 20#,16Mn, ASTM A105, A350 LF2,A420 WPL6 etc.
Stainless Steel: ASTM A182 F304,F304L,F316,F316L,F321,F321H F51,F44 etc.
|
|
Standard |
ANSI B16.11,BS3799,JIS B2316,MSS SP-83,MSS SP-79,etc. |
|
Type |
Elbow,Tee,nipple,full coupling, half coupling,lateral,cross,cap, plug,hex head nipple, swage nipple,union,weldolet,sockolet, threadolet, nipolet, elbolet, latrolet etc. |
|
Conection |
Thread (NPT, BSP) ,Socket Welding |
|
Pressure of products |
Socket weled : 3000LB 6000LB 9000LB (sch80 sch160 xxs) Threaded : 2000LB 3000LB 6000LBS (sch80 sch160 xxs) |
|
Size |
1/8"—6" |
|
Certificate |
ISO,API |
|
Surface Treatment |
Sand blasting, Galvanized.Polished |
|
Application |
Petroleum Chemical,Refinery, Pharmacy Industry, Food & Beverage Industry, Sea Water Desalination,Paper Making, Shipbuilding Industry, Electric power, Offshore & onshore oil&gas, Mining Industry, Water Treatment, Mechanical Making, Chemical fertilizer etc. |
|
Package |
Cartons in wooden cases or as buyer's requirments |
Q1. Can I have a sample order for valve?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q2. Do you have any MOQ limit for valve order?
A: Low MOQ, 1pc for sample checking is available
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional.
Q4. How to proceed an order for valve?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Are you products standard?
A: Our model is standard, if you have specific demand, pls tell us.
Q6: Do you have interest to do our own design items?
A: Absolutely! We have big interest.
