Quick Details
-
Model Number:
-
MTS-1202R+
-
Product name:
-
Total Station
-
Accuracy:
-
2 Sec
-
Reflectorless:
-
800m
-
Working temperature:
-
-20℃ ~ 50℃
-
Magnification:
-
30X
-
Application:
-
Ophthamic Optcal
-
Plummet:
-
Laser Plummet
-
Function:
-
SD card,blue tooth and USB
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
GeoMATO
-
Model Number:
-
MTS-1202R+
-
Product name:
-
Total Station
-
Accuracy:
-
2 Sec
-
Reflectorless:
-
800m
-
Working temperature:
-
-20℃ ~ 50℃
-
Magnification:
-
30X
-
Application:
-
Ophthamic Optcal
-
Plummet:
-
Laser Plummet
-
Function:
-
SD card,blue tooth and USB
Products Description
Factory popular new design with blue tooth GeoMATO MTS-1202R+ total station
Features:
1. The large, bright display, can be clearly viewed from any angle.
2. alphanumeric keyboard data entry easy.
3. The software is intuitive and easy to operate, can be personalized function definition, built more than 20 kinds of measurement procedures. (Road design and stake-out function optional)
1. The large, bright display, can be clearly viewed from any angle.
2. alphanumeric keyboard data entry easy.
3. The software is intuitive and easy to operate, can be personalized function definition, built more than 20 kinds of measurement procedures. (Road design and stake-out function optional)
4.The large-capacity memory, can store 50,000 data points.
5. With 32 CPU processing chip, stable, fast.
6. Using multi-coated optics, imaging bright and clear, reducing eye fatigue observation.
5. With 32 CPU processing chip, stable, fast.
6. Using multi-coated optics, imaging bright and clear, reducing eye fatigue observation.
Details Images
|

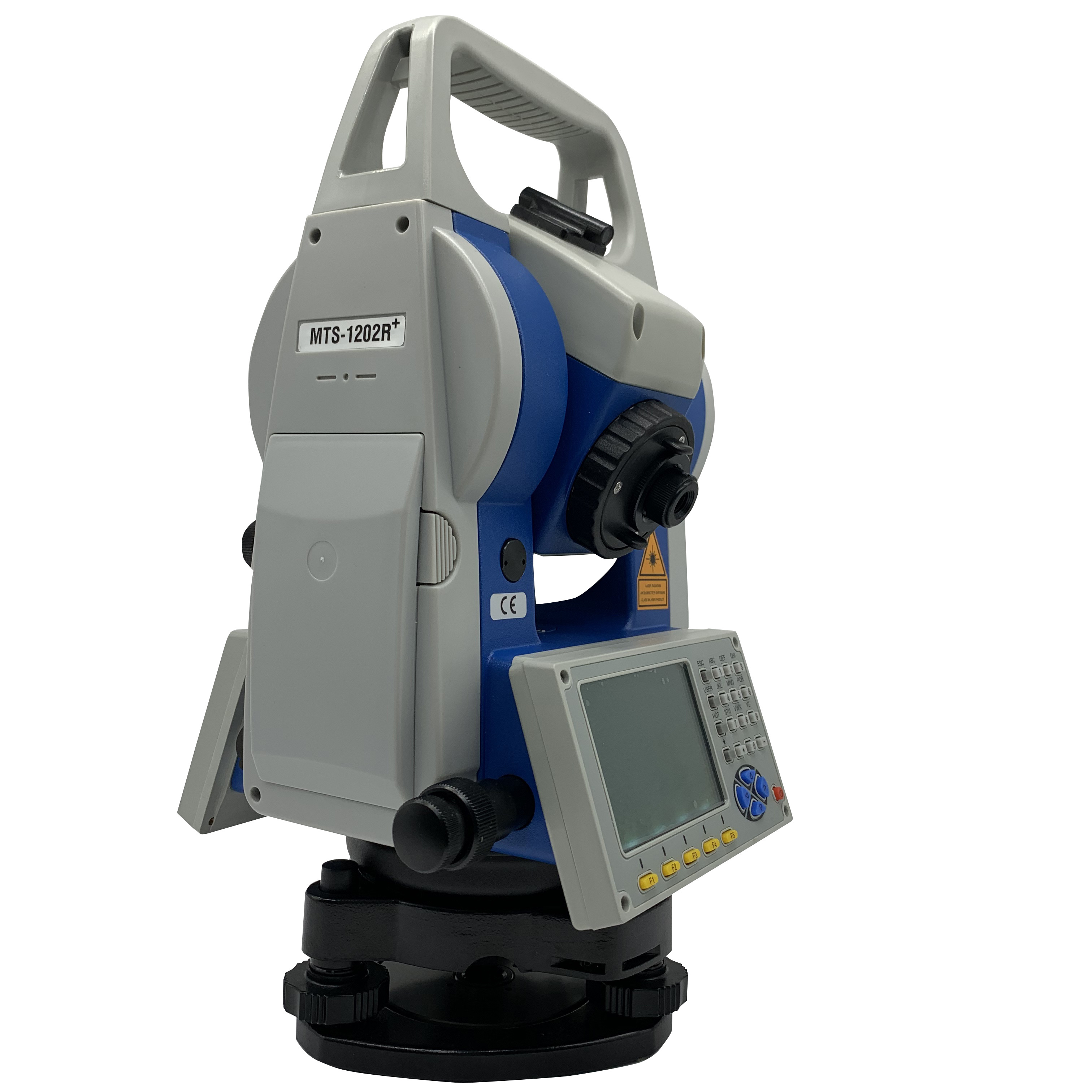

Mts -1202R+ total station
|
|
|
|
|
Erect
|
|
|
Magnification
|
30X
|
|
|
Effective Aperture
|
45mm
|
|
|
Resolving Power
|
4"
|
|
|
Field Of View
|
1°30'
|
|
|
Minimum Focus
|
1.5m
|
|
|
Distance Measurement(under Fair Weather Condition)
|
|
|
|
Range 1 Prism
|
3.0km
|
|
|
3 Prism
|
4.0km
|
|
|
Accuracy
|
2mm+2ppmxD
|
|
|
Minimum Count
|
1mm
|
|
|
Distance Unit
|
ft.Or m selectable
|
|
|
Measuring Time
|
|
|
|
Fine
|
1.8sec.(first time2.5sec.)
|
|
|
Tracking
|
0.4 Sec.
|
|
|
Maximum display
|
999999.999m
|
|
|
Atmospheric Correction
|
|
|
|
Temperature
|
C or F
|
|
|
Atmospheric Pressure
|
hPa/mmH/inHg
|
|
|
Atmospheric Deflection &
Earth Curvature Correction |
k=0.14/0.20/0
|
|
|
Prism Constant
|
0 mm / 30 mm
|
|
|
Angle Measurement
|
|
|
|
Measurement Method
|
ncremental Photoelectronic Encoder
|
|
|
Detection Method
|
|
|
|
Horizontal
|
Dual
|
|
|
Vertical
|
Dual
|
|
|
Accuracy
|
1"
|
|
|
Minimum Readout
|
1"and5"
|
|
|
Sensitivity of Vials
|
|
|
|
Plate Vial
|
30"/2mm
|
|
|
Circular Vial
|
8'/2mm
|
|
|
Vertical Compensation
|
Available
|
|
|
Type
|
Liquid-electric detection/Plate level
|
|
|
Compensation Range
|
+/-3'
|
|
|
Resolution
|
1"
|
|
|
Optical Plummet
|
|
|
|
|
Erect
|
|
|
Magnification
|
3X
|
|
|
Focus Rang
|
0.5m-infinity
|
|
|
Display
|
Double Side, LCD, Four-line Display
|
|
|
Data Port
|
RS-232
|
|
