Quick Details
-
Brand Name:
-
LINK-PP
-
Use:
-
Network
-
Warranty Time:
-
5 Years
-
Product Name:
-
1G SFP Module
-
Vendor Name:
-
Link-PP
-
Form Factor:
-
SFP
-
Max. Data Rate:
-
1.25Gbps
-
Wavelength:
-
1310nm
-
Max. Cable Distance:
-
10km@SM
-
Connector:
-
Duplex LC
-
Media:
-
SMF
-
Optical Component:
-
FP/PIN
-
Temperature Range:
-
0 to 70°C (32 to 158°F)
Quick Details
-
Type:
-
Fiber Optic Transceivers
-
Model Number:
-
1000BASE-LX/LH SFP
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LINK-PP
-
Use:
-
Network
-
Warranty Time:
-
5 Years
-
Product Name:
-
1G SFP Module
-
Vendor Name:
-
Link-PP
-
Form Factor:
-
SFP
-
Max. Data Rate:
-
1.25Gbps
-
Wavelength:
-
1310nm
-
Max. Cable Distance:
-
10km@SM
-
Connector:
-
Duplex LC
-
Media:
-
SMF
-
Optical Component:
-
FP/PIN
-
Temperature Range:
-
0 to 70°C (32 to 158°F)

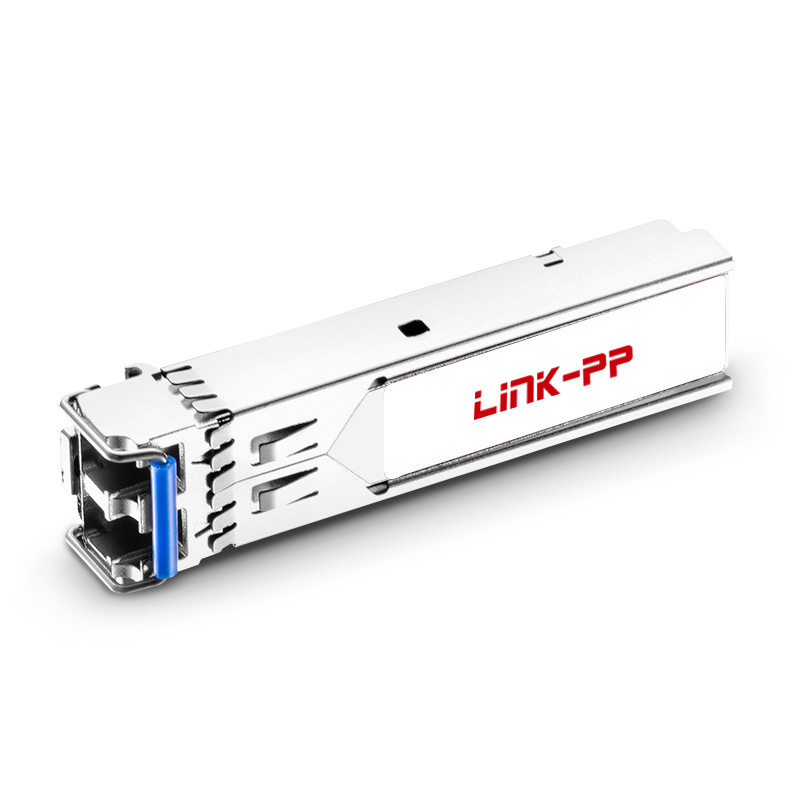

1000BASE-LX/LH SFP 1310nm 10km DOM Single Mode Duplex LC Optical Transceiver Module
Products Description
|
Item
|
1.25G SFP Module
|
|
Vendor Name
|
Link-PP
|
|
Part Status
|
Active
|
|
Form Factor
|
SFP
|
|
Wavelenght
|
1310nm
|
|
Max Data Rate
|
1000Mbps
|
|
Max Cable Distance
|
10km
|
|
Media
|
SMF
|
|
Connector
|
Duplex LC
|
|
Optical Component
|
FP/PIN
|
|
TX Power
|
-9.5 ~ -3dBm
|
|
Receiver Sensitivity
|
< -20dBm
|
|
Power Consumption
|
≤1W
|
|
Receiver Overload
|
-3dBm
|
|
Extinction Ratio
|
>9dB
|
|
EMC (Electro Magnetic Compatibility)
|
Supported
|
|
DDM/DOM
|
Supported
|
|
Temperature Range
|
0 to 70°C (32 to 158°F)
|
|
Protocols
|
IEEE 802.3ah-2004, IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant
|
|
Warranty
|
5 Years
|
|
Sample
|
Available
|
