Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TKT
-
Car Model:
-
Bus
-
Model:
-
air conditioner equipment for buses
-
Application:
-
13~14 meter bus
-
Compressor type:
-
original Bock FKX40/755
-
Installation type:
-
Rooftop mounted system
-
Material:
-
cooper tube and aluminium
-
Condenser fan:
-
6 pcs
-
Evaporator fan:
-
8 pcs
-
Certification:
-
ISO9001:2008, CE
-
Voltage:
-
DC24V
Quick Details
-
OE NO.:
-
Standard
-
Size:
-
4670*1830*210MM
-
Warranty:
-
3 YEAR, 3 years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TKT
-
Car Model:
-
Bus
-
Model:
-
air conditioner equipment for buses
-
Application:
-
13~14 meter bus
-
Compressor type:
-
original Bock FKX40/755
-
Installation type:
-
Rooftop mounted system
-
Material:
-
cooper tube and aluminium
-
Condenser fan:
-
6 pcs
-
Evaporator fan:
-
8 pcs
-
Certification:
-
ISO9001:2008, CE
-
Voltage:
-
DC24V

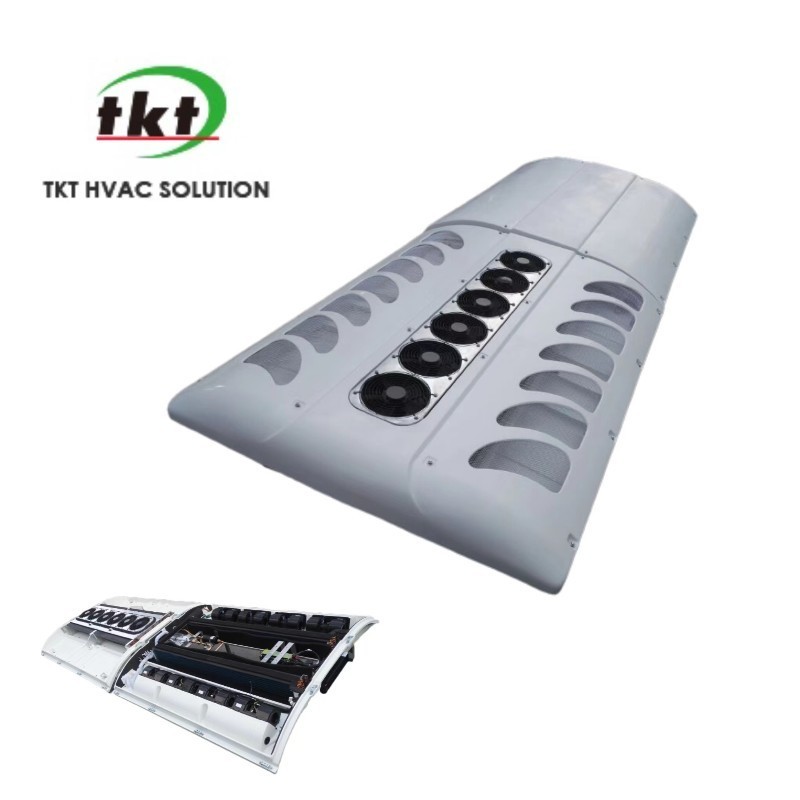

bus air conditioner with compressor TKT-400B
Roof mounted bus air conditioning system with vehicle engine driven with 6 fans carrier bus air conditioner for bus
TKT-400B is designed for 13-14M City Bus, Coach and Intercity Bus(Ambient Temperature 55
℃
). It’s famous in Mid East, South America, Europe, South Africa and Asia because of High Cooling Capacity and Reliable Performance.
|
Product Name |
Coach/City Bus Air Conditioner |
|
|
Model No. |
TKT-400B |
|
|
Structure |
Roof Top Model |
|
|
Cooling Capacity |
40 KW / 136400BTU/ 34400Kcal/h |
|
|
Expansion Valve |
Danfoss, 9.6 T |
|
|
Voltage |
DC24V |
|
|
Power Consumption |
95A |
|
|
Condenser |
QTY of Condenser Fan |
6 PCs |
|
Condenser Coil Type |
Copper Tube & Aluminum Fin |
|
|
Condenser Air Flow |
14400M3/H |
|
|
Evaporator |
QTY of Evaporator Blower |
8 PCs |
|
Evaporator Coil Type |
Copper Tube & Aluminum Fin |
|
|
Evaporator Air Flow |
9020M3/H |
|
|
Refrigerant |
R134A,9.5~ 9.8KGS |
|
|
Dimension of Roof Top Unit |
4670*1830*210MM |
|
|
Weight for Roof Top |
155KGS |
|
|
Compressor
|
Brand & Model No.: Bock(Germany), FX40 |
|
|
Displacement:755CC |
||
|
Pulley Type: 2A2B |
||
|
Alternator & Capacitance Box |
Brand & Model No.: BOSCH(USA) |
|
|
Type: F042308017455 150A, Batteryless |
||
|
Capacitance Box: SZXG-III |
||
|
Application |
12-4M City Bus, Coach and Intercity Bus(Ambient Temperature 55 ℃) |
|
