Quick Details
-
Brand Name:
-
DIJIANG
-
Model Number:
-
OFZAT-04
-

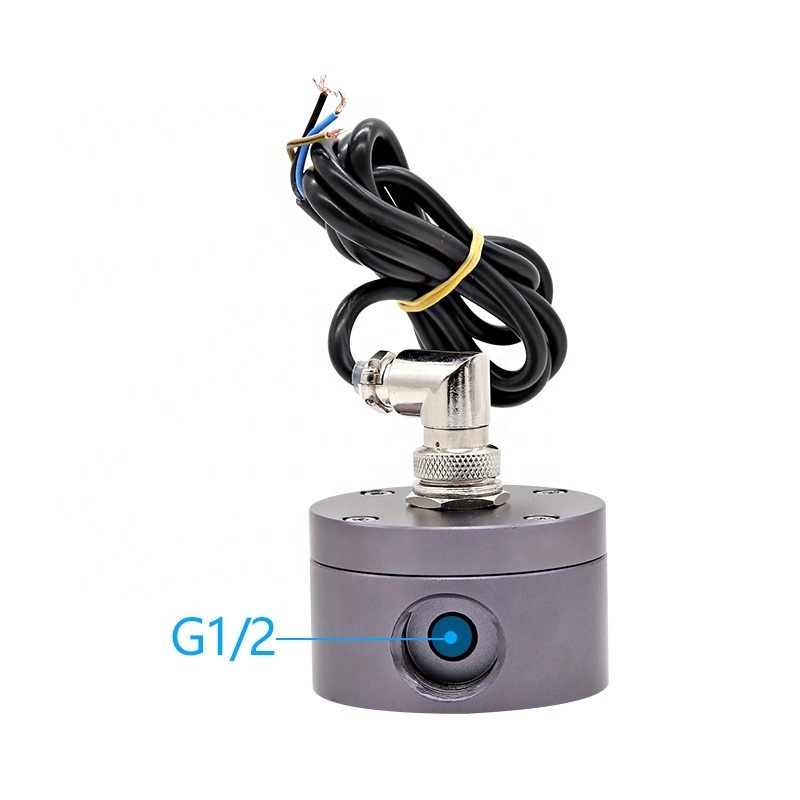

Product Name:
-
Oval Gear Meter Sensor
-
Output Signal:
-
NPN Pulse
-
Material:
-
Aluminum
-
Model No.:
-
OFZAT-04
-
Threaded Connection:
-
G1/2'' Female Female
-
Operating Voltage:
-
DC3.5 - 24V
-
Flow Rate:
-
50-1200L/H
-
Frequency Hz:
-
2.4
-
NPN Pulse:
-
About 144P/L
-
Working Temperature:
-
-10 ~ 70℃
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
No Warranty
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DIJIANG
-
Model Number:
-
OFZAT-04
-
Product Name:
-
Oval Gear Meter Sensor
-
Output Signal:
-
NPN Pulse
-
Material:
-
Aluminum
-
Model No.:
-
OFZAT-04
-
Threaded Connection:
-
G1/2'' Female Female
-
Operating Voltage:
-
DC3.5 - 24V
-
Flow Rate:
-
50-1200L/H
-
Frequency Hz:
-
2.4
-
NPN Pulse:
-
About 144P/L
-
Working Temperature:
-
-10 ~ 70℃
Product Description
|
Model No. |
OFZAT-04 |
| Material | Aluminum |
| Inlet & Outlet Diameter | G1/2'' Female Female |
| Power Supply | 3.5 - 24Vdc |
| Working Current | <10mA |
| Output Pulse High Level | < DC4.7V (input 5vdc) |
| Output Pulse Low Level | < DC0.5V (input 5vdc) |
| Working Temperature | -10°C ~ 70°C |
| Flow Rate | 50 - 1200L/min (test water) |
| Ftequency (Hz) | 2.4 |
| NPN Pulses | About 144P/L |
| Error | +/- 1% |
| Max Pressure | 1.0Mpa |
| Cable / Connector | 3P-100cm bare wires with tinned ends |
| Wire Connection |
RED - vcc, BLACK - gnd, YELLOW - signal |
