Quick Details
-
Brand Name:
-
CORDER
-
Model Number:
-
ASOM-5D
-
Safety standard:
-
IEC 60601
-
Product name:
-
ASOM-5-D Neurosurgery microscope
-
Certificate:
-
ISO
-
Binocular tube:
-
0°~180°variable angle binocular tube
-
maginification:
-
1.8x~21x
-
objective lens:
-
200-450mm
-
focusing:
-
handle control
-
illumination:
-
coaxial illumination
-
light source:
-
LED Lamp
-
Color:
-
white
-
Eyepiece:
-
12.5x
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
China
-
Brand Name:
-
CORDER
-
Model Number:
-
ASOM-5D
-
Safety standard:
-
IEC 60601
-
Product name:
-
ASOM-5-D Neurosurgery microscope
-
Certificate:
-
ISO
-
Binocular tube:
-
0°~180°variable angle binocular tube
-
maginification:
-
1.8x~21x
-
objective lens:
-
200-450mm
-
focusing:
-
handle control
-
illumination:
-
coaxial illumination
-
light source:
-
LED Lamp
-
Color:
-
white
-
Eyepiece:
-
12.5x
Recommend Products
Products Description

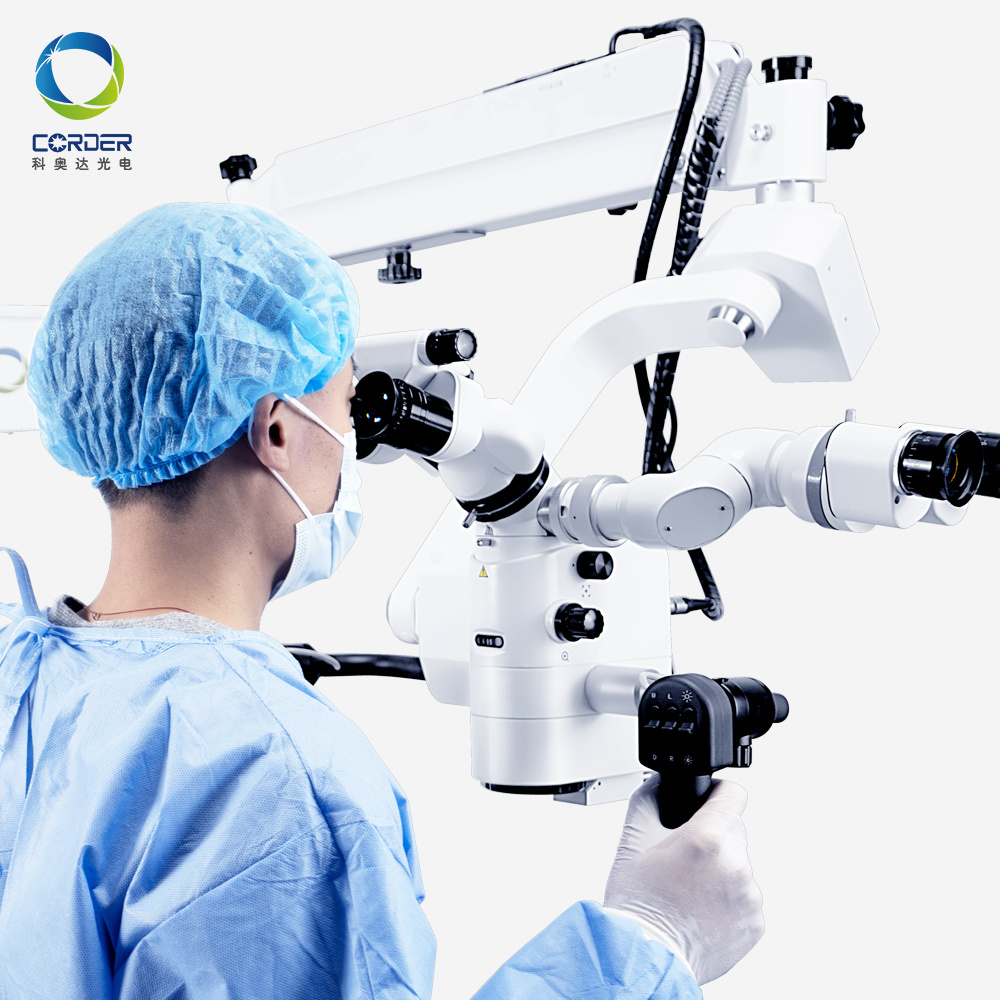

Multifunctional neurosurgical operating
Autofocus microscope
Asom-5-d is a neurosurgical operating microscope. It also has the conditions for operating microscope operations in Ophthalmology, otolaryngology, orthopedics, dentistry and other departments. It is a multifunctional operating microscope instrument and equipment.
Excellent microscope
According to the ergonomic design, the handle can control a variety of functions, and the microscope can adjust different angles according to the operation requirements, so that the doctor can operate more conveniently.
LIGHTING SYSTEM
1. It adopts American ultra long-life medical LED white light source, with color temperature of 5500k, high color rendering index, brightness greater than 100000 lux, strong reduction degree and no fatigue after long-term use.
2. LED has low energy consumption and service life of up to 100000 hours.
3. The spare halogen bulb can be switched with LED, and can also be turned on at the same time, so as to make the light color softer and prevent long-term operation visual fatigue.
Multifunctional electric control handle
The multi-functional handle designed according to ergonomics can easily complete the operations of electric continuous zoom, electric continuous zoom, brightness adjustment, photographing and video recording.
In line with the engineering principle, it can ensure that clinicians can obtain the clinical sitting posture of ergonomics, and can effectively reduce and prevent the muscle strain of waist, neck and shoulder. So that clinicians can stay away from cervical spondylosis and lumbar spondylosis.
Auxiliary microscope position adjustable
The assistant mirror position can change the left and right positions according to the needs of surgical operation, which can more conveniently cooperate with the leading physician for surgery.
Balance system
The angle of the microscope head can be adjusted freely according to the actual operation needs. The fixed angle can be easily selected through the handle control button, making the doctor easier in the operation process.
Product Paramenters
|
Product model
|
ASOM-5-D
|
|
Function
|
neurosurgery
|
|
Eyepiece
|
The magnification is 12.5 times, the adjustment range of pupil distance is 55mm ~ 75mm, and the adjustment range of diopter is + 6D ~ - 6D
|
|
Binocular tube
|
0 ° ~ 200 ° variable inclination main knife observation, pupil distance adjustment knob
|
|
Magnification
|
6:1 zoom, motorized continuous, magnification 1.8x~21x; field of view Φ7.4~Φ111mm
|
|
Coaxial assistant’s binocular tube
|
Free-rotatable assistant stereoscope, all direction circumvolve freely, magnification 3x~16x; field of view Φ74~Φ12mm
|
|
Illumination
|
80w LED lifetime more than 80000 hours , illumination intensity＞100000lux
|
|
Focusing
|
Motorized 200-450mm
|
|
X-Y swing
|
The head can swing in X direction +/-45 °motorized, and in Y direction +90°,and can stop in any angle
|
|
Filiter
|
Yellow filter, green filter and ordinary filter
|
|
Maximum length of arm
|
Maximum extension radius 1380mm
|
|
New stand
|
swing angle of the carrier arm 0 ~300°,height from objective to floor 800mm
|
|
Handle controller
|
10 functions (zoom, focusing, X-Y swing, take vedio/photo,browse pictures )
|
|
Optional function
|
Autofocus, built-in CCD image system
|
|
Weight
|
169kg
|
