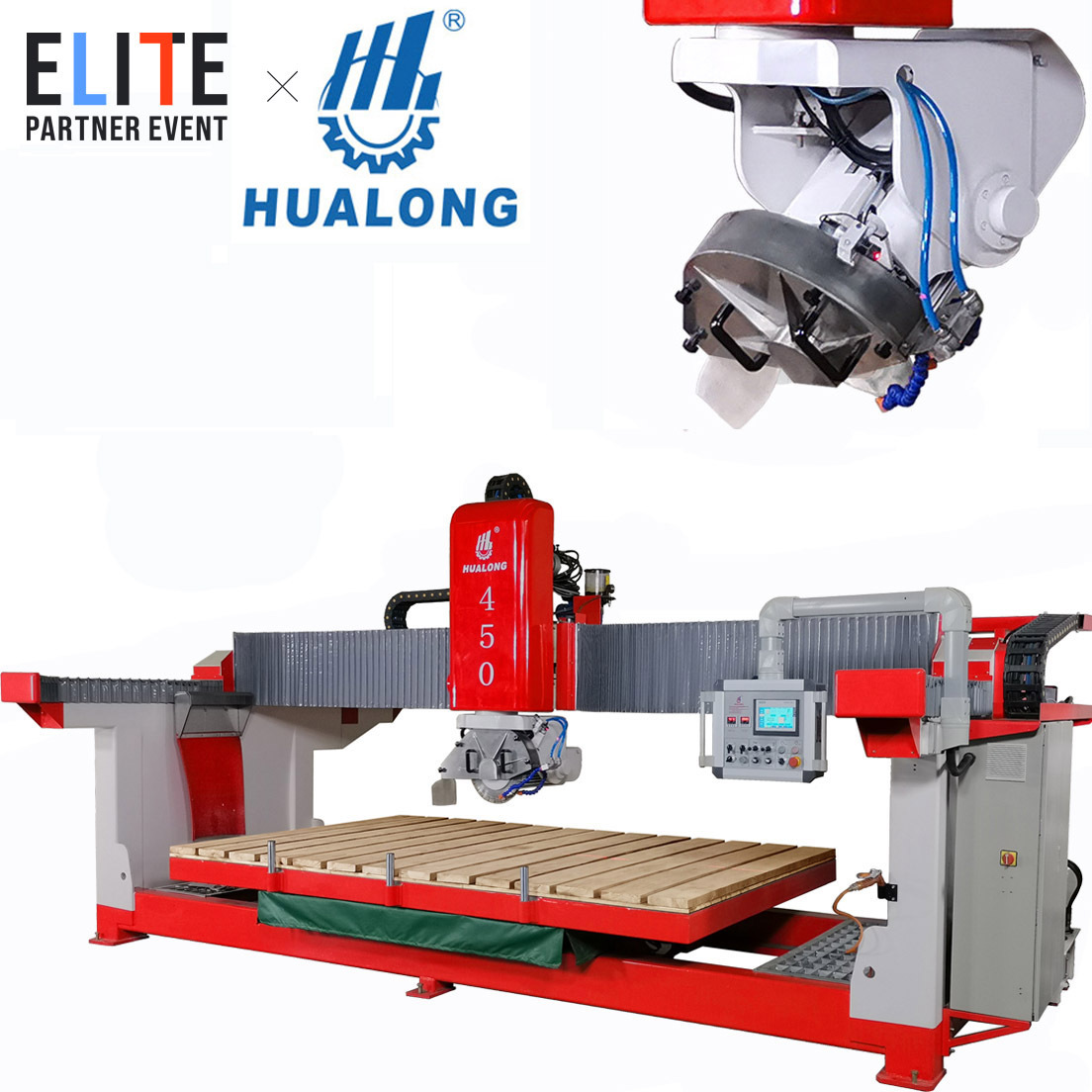

Stone Bridge Saw
Hualong HLSQ-450
is an monoblock
Automatic Bridge Stone Cutting Machine
with Siemens PLC controller. It offers interpolated axes, +/-270° rotating head and a fully tilting/rotating table, is programmable and sutable for cut slab of grainte, marble, quartz and other natural or engineered stones to size. Fully warranty provided.
|
Technical Data for HLSQ-450
|
|
|
||
|
Diameter of blade
|
mm
|
400-450
|
||
|
Max. cutting thickness
|
mm
|
100
|
||
|
Max. cutting length
|
mm
|
3300
|
||
|
Max. lifting travel
|
mm
|
300
|
||
|
Worktable dimensions
|
mm
|
3300x2000
|
||
|
Power of main motor
|
kw
|
15
|
||
|
Power of cutter frame motor
|
kw
|
1.1
|
||
|
Power of crossbeam shifting motor
|
kw
|
1.5
|
||
|
Power of lifting motor
|
kw
|
1.5
|
||
|
Power of hydraulic station motor
|
kw
|
2.2
|
||
|
Gross power
|
kw
|
21.3
|
||
|
Water consumption
|
m3/h
|
2
|
||
|
Dimension (L x W x H）
|
mm
|
5700x3260x2765
|
||
|
Gross Weight
|
kg
|
5400
|
||
Main Features:
1) Monoblock structure for easy transport, installations and no foundation needed.
2) Siemens, Schneider electric and other high quality accesories such as Hiwin linear guide are adopted.
3) 0°, 90°, 180° and 270° automtaic head rotatation and blade positioning.
4) Blade can tilt 45° automtically for chamfering cutting.
5) Automatic cross cutting repeatedly so easy by pushing one-button.
6) Manual cuts available for simple machining
7) Worktable can rotate 0-360°, pause at every 45° automatically or stop at any degree by remote control.
8) Worktable can tilt 0-85°, easy for slab loading.
2) Siemens, Schneider electric and other high quality accesories such as Hiwin linear guide are adopted.
3) 0°, 90°, 180° and 270° automtaic head rotatation and blade positioning.
4) Blade can tilt 45° automtically for chamfering cutting.
5) Automatic cross cutting repeatedly so easy by pushing one-button.
6) Manual cuts available for simple machining
7) Worktable can rotate 0-360°, pause at every 45° automatically or stop at any degree by remote control.
8) Worktable can tilt 0-85°, easy for slab loading.
Linear Guide
Brand:
Hiwin
Original: Taiwan, China
Original: Taiwan, China
Control System
Brand:
Siemens
Use advanced PLC control system with touch screen to achieve multi programming methods, including manual programming or PC
processing operation for powerful functions, which offer friendly and inteligent control.
Use advanced PLC control system with touch screen to achieve multi programming methods, including manual programming or PC
processing operation for powerful functions, which offer friendly and inteligent control.
Laser Reticule Apparatus
Origin:
China
Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.
Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.
Machine Part
Name
: Incremental Encoder
Brand: ELCO from Germany
For the determination of head movement in X, Y, Z direction and worktable rotation to ensure position precision without the
slightest deviation
Brand: ELCO from Germany
For the determination of head movement in X, Y, Z direction and worktable rotation to ensure position precision without the
slightest deviation
Electric Cabinet
Brand:
Siemens, Schneider, Sanch...
Quality electrics used to ensure stable performance.
Quality electrics used to ensure stable performance.
Optional Accessaries:
Remote Control
For control the movement of 3 axises conviniently.
Hydraulic Giant
For cleaning.
Hydraulic Giant
For cleaning.
1) 25 years + experience professional on making stone machines.2) Good performance and Long life service --- Our HLSQ series bridge saw was first exported to Brazil in 2012, which is still working well now.
3) The machining operation is simpler than the operation of other infrared cutting machine, automatically cut by setting parameters.
4) For chamfering cutting, the blade tilt of HLSQ-450 is controled by PLC, which cutting is accurate. While the other two ways as showed below, the cutting is less accurate, not good for cutting thin slab.
3) The machining operation is simpler than the operation of other infrared cutting machine, automatically cut by setting parameters.
4) For chamfering cutting, the blade tilt of HLSQ-450 is controled by PLC, which cutting is accurate. While the other two ways as showed below, the cutting is less accurate, not good for cutting thin slab.
