When the oil press is running, the processed oil enters the press chamber from the hopper. Press screw turn to push the embryo into the press. Because the diameter of the squeeze screw is gradually thickened, the pitch is gradually reduced, so when the squeeze screw rotates, the thread is hard, and the material embryo is squeezed by the squeeze screw and the round row. To squeeze the oil out of the oil and flow out of the gap in the round row.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
customized
-
Dimension(L*W*H):
-
2700x900x1200
-
Weight:
-
2600 KG
-
Raw material:
-
oilseed
-
Function:
-
press cooking oil
-
Keyword:
-
palm kernel oil press
-
Application:
-
oil mill
-
Advantage:
-
automatically
-
Name:
-
screw oil press machine
-
Feature:
-
durable
Quick Details
-
Production Capacity:
-
1ton
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Btma
-
Voltage:
-
customized
-
Dimension(L*W*H):
-
2700x900x1200
-
Weight:
-
2600 KG
-
Raw material:
-
oilseed
-
Function:
-
press cooking oil
-
Keyword:
-
palm kernel oil press
-
Application:
-
oil mill
-
Advantage:
-
automatically
-
Name:
-
screw oil press machine
-
Feature:
-
durable

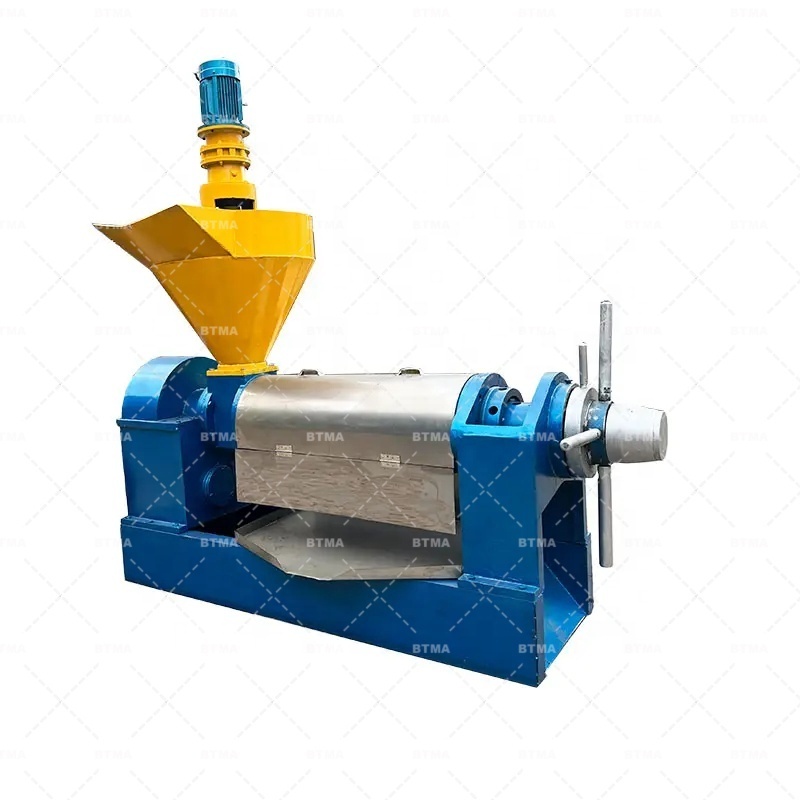

BTMA 6YL-200 model palm kernel oil seed machine
Products Introduction
Screw oil press with the help of mechanical external force, by raising the temperature, activate the oil molecules, the grease from the oil extrusion machine. It is suitable for all kinds of oil extraction, widely used in all kinds of oil extraction industry.A screw oil press plays an essential role in the oil-making process in the market. While our oil presse is very high in quality and performs very well, many customers want to know more about the oil press.
Screw oil presse plays a significant role in the production of oil in the market. Although our oil press is extremely high-quality and works very well for the price, many customers are interested in learning more about the operation of an oil press.
Application
Structure And Working Principle
Product Paramenters
|
Model
|
6YL-200
|
|
Capacity(T/D)
|
1-1.5T/D
|
|
Power(kw)
|
37kw
|
|
Machine Size(mm)
|
2700x900x1200
|
|
Weight(kg)
|
2600kg
|
|
Material
|
Stainless steel(cover,output pan)
|
Other Technical Parameters
|
Model
|
Capacity(T/D)
|
Power(kw)
|
Machine Size(mm)
|
Weight(kg)
|
|
6YL-68
|
1-1.5
|
5.5KW
|
1000x538x1050
|
140kg
|
|
6YL-80
|
2-4
|
5.5KW
|
1320x540x1020
|
330KG
|
|
6YL-100
|
5-7
|
7.5kw
|
1640x640x1200
|
480kg
|
|
6YL-120
|
6-8
|
15kw
|
1750x570x1320
|
580kg
|
|
6YL-125
|
7-10
|
15kw
|
1750x570x1320
|
580kg
|
|
6YL-130
|
10-12
|
18.5kw
|
1980x680x750
|
760kg
|
|
6YL-160
|
14-18
|
22kw
|
2020x700x1480
|
960kg
|
|
6YL-200
|
24-28
|
37kw
|
2700x900x1200
|
2600kg
|
Details Photos
Extended version of the adjustment handle, where you can adjust the thickness of the pressed oil cake.
The feed port is equipped with a screw motor for unloading materials, saving manpower and time and improving efficiency.
Thickened stainless steel oil pan and cover,
Extra long press chamber, large press capacity, can press 1-1.5 tons of raw materials per hour.
The thickness of the oil cake can be observed at the cake outlet, and the working condition of the machine can be observed through the visual pressing chamber.
Features about our products
Simple operation, concise and convenient.
Advanced design, reliable performance, easy maintenance.
Split oil press parts, pulley, motor, control box and so on.
This is the gearbox part of the oil press, We have big gearbox.It is powerful to work.
Customer Photos
Our oil press is packed in wooden cases, which fully guarantees the safety of product delivery.
In the packaging, the oil press is
split, which is conducive to saving the packaging area.
