Professional Powder Coating Machine with Oven System
Professional Powder Coating Machine with Oven System
Professional Powder Coating Machine with Oven System
Professional Powder Coating Machine with Oven System
Professional Powder Coating Machine with Oven System
Professional Powder Coating Machine with Oven System
Professional Powder Coating Machine with Oven System
Professional Powder Coating Machine with Oven System

Professional Powder Coating Machine with Oven System

FOB Reference Price: Get Latest Price
≥1 Sets
US $7999
≥49 Sets
US $6999
≥100 Sets
US $5999
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
380V
Power:
50KW
Dimension(L*W*H):
Customized
Weight (KG):
1000
Brand:
HICOLO
Painting type:
Electrostatic powder coating
Working method:
Automatic or semiauto
Delivery time:
15 days
Weight:
4 TONS
Certification:
CE

Quick Details

Machine Type:
powder coating system, Spray Booths, Drying Oven, Curing oven, Coating Equipment
Place of Origin:
Zhejiang, China
Brand Name:
HICOLO
Voltage:
380V
Power:
50KW
Dimension(L*W*H):
Customized
Weight (KG):
1000
Brand:
HICOLO
Painting type:
Electrostatic powder coating
Working method:
Automatic or semiauto
Delivery time:
15 days
Weight:
4 TONS
Certification:
CE
Products Description

Professional Powder Coating Machine with Oven System

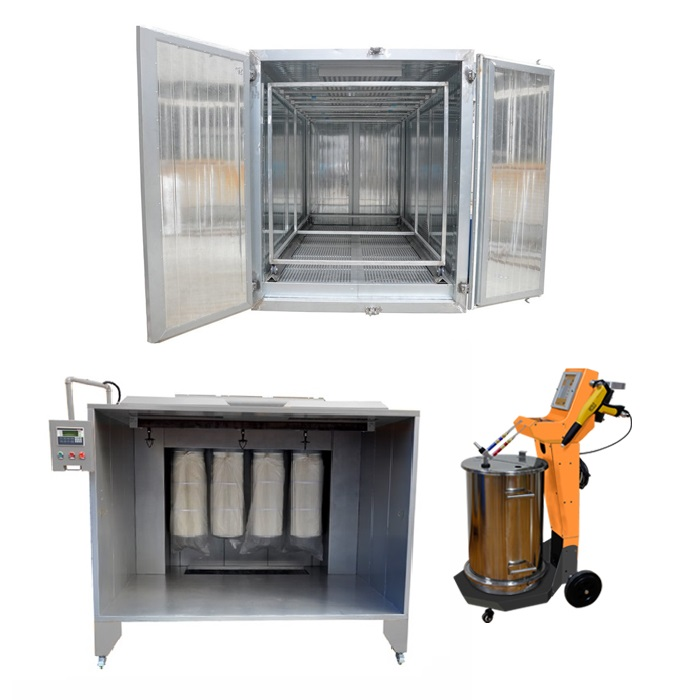

This system including powder coating gun, batch powder booth and curing oven, recommended for industrial production of various metal parts. Meet the requirement of manual operation, the batch powder coating system realizes both efficiency and quality.
Ideally for small and medium-sized metal parts, such as wheels, frames, furniture, or other industrial and domestic parts., It is very affordable for beginners to start new business or experienced users update their old equipment.
Details Images


COLO-191S Powder Coating Machine

The precise application and intuitive handing of COLO-191S in gun control technology, delivers excellent coating quality for high requirement industrial use, whether for simple panels or complex profiles.

Thanks to the digital controller can be simply accessed of all processing parameters, both beginners and experts can operate very well.
Features

1.Digital control of all processing parameters, such as voltage, current, atomization, powder feed.

2. Micro & precise regulation of pneumatic data gives more smooth, gentle of powder output, ensure great coating quality.

3. Allows users to control the thickness of coating film, and always applying right amount of powders.
Model
COLO-191S-B
Power range
220/110V
Frequency
50HZ
Voltage Input
DC 24V
Voltage Output
100 KV
Pulse Frequency
15~20 Clock /S 550g/min
Maximum input-air pressure
10kg/cm

COLO-2315 Powder Coating Filter Booth


Features
1. Incorporates proven cartridge-filter technology capturing excess powders efficiently to keep environment clean.

2. The filtered powder is discharged into a collecting hopper beneath the unit which can be moved away for emptying.

3. Easy-to-use PLC operation panel allows to start/stop exhaust, set pulse-jet time & interval and lift recovery hopper.

4. Designed with wheels perfectly for shops where being able to move the unit is vital.

5. Our booth fully constructed with powder-coated steel exceptionally increases stability and durability.
Model
COLO-2315
Operating Dimensions
Width2300*Depth1500*Heght1500mm
Overall dimensions
Width2550*Depth2100*Heght2240mm
Weight
580kg
Power Supply
220V/380V, 3Phase, 50-60HZ
Fan Power
4kw
Filter Count
4 pcs, Quick-release Type
Filter Material
Polyester
Filter Cleaning
Pneumatic
Air Consumption
6600m^3/h

COLO-1732 Electric Powder Coating Oven


Features
1. All parameters and functions are set on PLC panel, provides a high precision heating process.

2.100mm thick rockwool insulation material keeps constant temperature whose stability less than 3℃.

3. A high peformance fan is excellent for hot airflow circulation, reaching any corner of the oven to ensure baking uniformity and efficiency.

4. A pair of outer & inner trolley makes easy loading of workparts. It affects the reduction of the impurities content from the floor in the chamber.
Model
COLO-1732
Worksize dimensions
Width1650 x Height1700 x Depth3200 mm
Overall dimensions
Width1950 x Height2100 x Depth3600 mm
Power supply Electric
30kw
Voltage
380V/220v
Frequency
50-60hz
Warm-up time
15-30 min. (180° C)
Temperature stability
< ± 3-5°C
Temperature max
250° C
Ventilation performance
1131-2565m3/h
Motor power
1.5kw
Circulation/ Air flow Vertical
Variable through holes on the walls
Warranty
12 months
Application
Customer Feedback
Recommend Products
Packing&Shipping
Company Introduction
FAQ
1. Which model should I choose?
It is depend on your actual workpiece, whether it is simple or complicated. We have abundant types with different features to suit various customers requirement.
What's more, we have also have hopper type and box feed type depending on whether you need frequently change powder colors.

2. Why some other company supply machine with cheaper prices?
Different machine function ,different grade parts choosed ,machine coating job quality or Lifetime will be different.

3.The machine can work in 110v or 220v?
We exported into more than 80 countries ,so we can supply 110v or 220v working voltage ,when you order you just tell us which you want ,it will be ok.

4. Is it safe to order from COLO?
Yes, 100% sure you are safe to order from us ,we exported into more than 80 countries , and in many countries we have agents or Distributors and we are The famous factory in the powder coating equipmen in China.

5. How about the Warranty?
Because of quality problem we supply free replacement included the shipping cost within one year according to the problem photo with series number.
