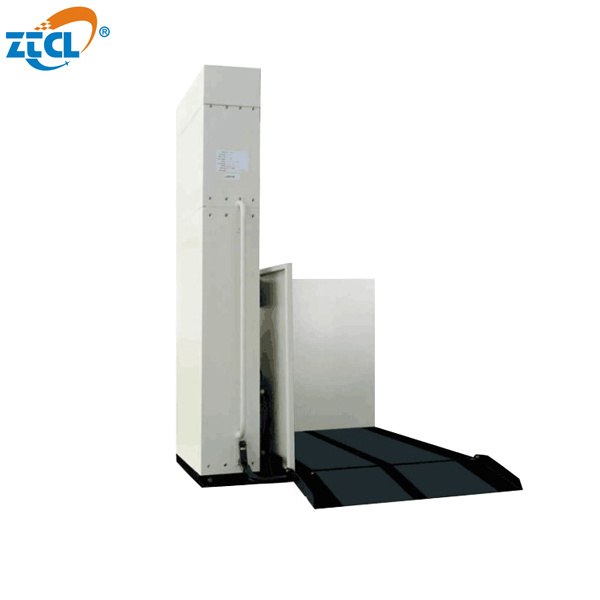

Electric vertical stair climbing wheelchair lift with CE

Electric vertical stair climbing wheelchair lift with CE

FOB Reference Price: Get Latest Price

≥1 Sets

US $3000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: 220V/50HZ

Min. Lifting Height:: 80mm

Table Size:: 1m*1m, 1m*1.2m

Overall Dimensions:: Customized

Weight:: 300 kg

OEM:: Yes

Voltage:: 110v 220v 240v 380v optional

Appliction:: Used for the disabled handicaaped people

Color:: Optional

Enter or exit way:: 90° or 180°

Installation:: no pit

Platform:: Anti-skid

Overload:: Protection over current relay

Working temperature:: -10°~60°C

Working Condition:: Both indoors and outdoors

Quick Details

Warranty:: two year

Place of Origin:: Shandong, China

Brand Name:: ZHONGTIAN

Power:: 220V/50HZ

Min. Lifting Height:: 80mm

Table Size:: 1m*1m, 1m*1.2m

Overall Dimensions:: Customized

Weight:: 300 kg

OEM:: Yes

Voltage:: 110v 220v 240v 380v optional

Appliction:: Used for the disabled handicaaped people

Color:: Optional

Enter or exit way:: 90° or 180°

Installation:: no pit

Platform:: Anti-skid

Overload:: Protection over current relay

Working temperature:: -10°~60°C

Working Condition:: Both indoors and outdoors

Hot sale !! electric vertical stair climbing wheelchair lift with CE

you could click photo below to get our online transactions overview

Our wheelchair lift consists of a platform with high side walls, an upper landing gate, a platform mounted gate, a drive system and easy-to-use operating controls.

Wheelchair lift is divided into two types according to material, which Spray type and Stainless Steel type.

Characterized by novel design, perfect stability and safety, nice appearance, low noise and so on, with 1.0-8.0m working range, 150-300kg carrying capacity. Ideal for indoor and outdoor applications.

There is straight through access and adjacent access choices:

Packed to send overseas clients:

Technical Parameters

Name	No.	Lift capacity	Materials
Wheel-chair vertical lift	ZTVL0.25	250KG	Stainless steel
Platform size	1200mm(L)* 1000mm(W)
Dimension	1200mm(L)1450mm(W)CUSTOMIZED(H)
Max Platform Height	CUSTOMIZED (mm)
Min Platform height	60mm
Configuration	Open through or front and side entrances
Speed	60mm/s
Load capacity	250KG
Control voltage	24V/DC
Power Output	0.75kw-2.2kw
Power Input	220V/50HZ/25A (or customized for local power supply)
Drive System	Hydraulic
Control Mode	Inching Switch or Automatic
Drive Control	Self-resetting system
Overload	Protection Over current relay
Material of Platform	Stainless steel/powder painting
Guard panel & drive cabinet (framework)	304 stainless steel/powder painting
Automatical ramp	yes
Column switch	Two column switch, one is on the ground floor, one on the first floor
Operation Panel	Polished Stainless steel(up down and Emergency drop valve)
Safety Wane Working Range	75°
Working Condition	Both indoors and outdoors
Working temperature	From -10°~60°C
Installation	Non-pit installation, directly fixed to concrete floor (the concretefloor below the platform shall not be lower than the ground)

Control Device	Calling box (installed on the wall nearby) and remote
	controller(Extra optional)
Emergency Stop	The lifting and lowering process can be stopped immediately by pressing the emergency button.

Safety device	Safety Interlock	Lock the platform when it is out of control
	Safety Sensor	The operation must be stopped immediately the safety edge meets obstacles during operation.

	Emergency lowering	hydraulic valve manually or rolling screw rod.
	Auto-flap	Turn up after lifting
