8 port gigabit 24V 48V passive switch PoE inverso 1000Mbps VLAN managed reverse PoE switch

8 port gigabit 24V 48V passive switch PoE inverso 1000Mbps VLAN managed reverse PoE switch

Introduction:

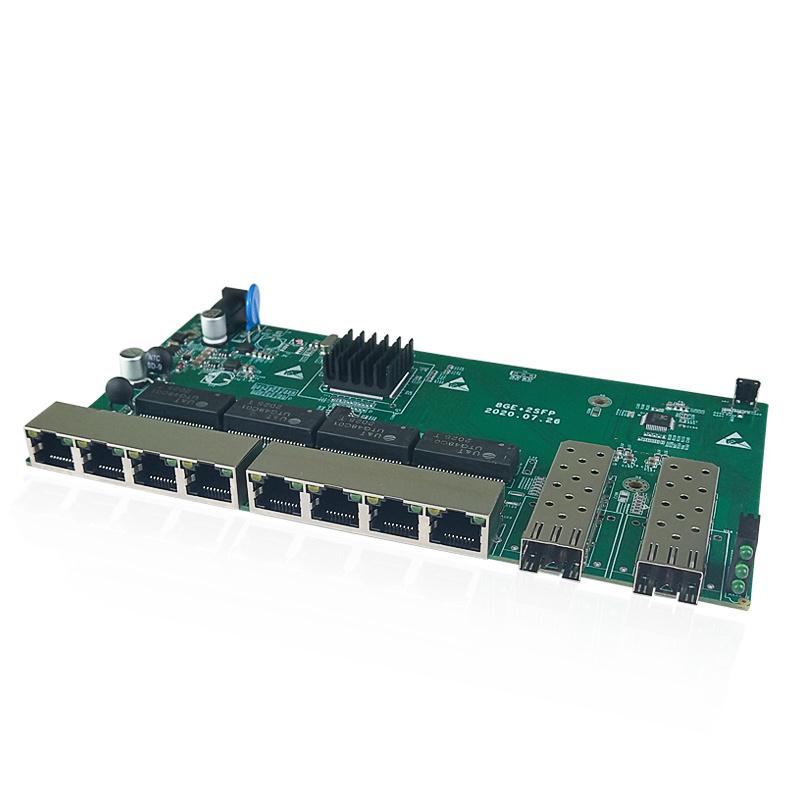

ES1000-8GPD-2FM Reverse PoE Switch with 7-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit SFP Fiber Ports and 10/100/1000Mbps Fast Ethernet network capabilities. Port1-7 for PoE In, Port 8 and 2 SFP can do Uplink port ,Support 24-48V Passive PoE compliant PSD and PD.

Features:
1. With 7 reverse incoming poe ports, 1 RJ45 and 2 SFP uplink port
2. Support fixed vlan, No.1 port to No.7 port can not communicate with each other, but they all
can communicate with No.8 port and two SFP port
3. Working with 24-48vdc reverse poe compliant PSE, expands LAN network
4. Output 12vdc power supply via dc jack, which can be supplied to ONT
5. Plug and play
6. Support web management

What This Product Does
ES1000-8GPD-2Fm Reverse PoE Switch with 7-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit SFP Fiber Ports and 10/100/1000Mbps Fast Ethernet network capabilities. Port1-7 for PoE In, Support 24-48V Passive PoE compliant PSD and PD, 2Gigabit SFP can do Uplink Port.

How This Product Works
8 Auto-Negotiation RJ45 ports (port-1 to port-7) of the switch support Power over Ethernet (PoE) function. These PoE ports (port-1 to port-7) can automatically detect and accept power with those IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, .

Easy To Use
ES1000-8GPD-2Fm is easy to install and use. It requires no configuration and installation. With outstanding performance and quality, the ES1000-8GPD-2F is a great selection for expanding your home or office network.
