Quick Details
-
Model Number:
-
NXT-M3III
-
Machine Type:
-

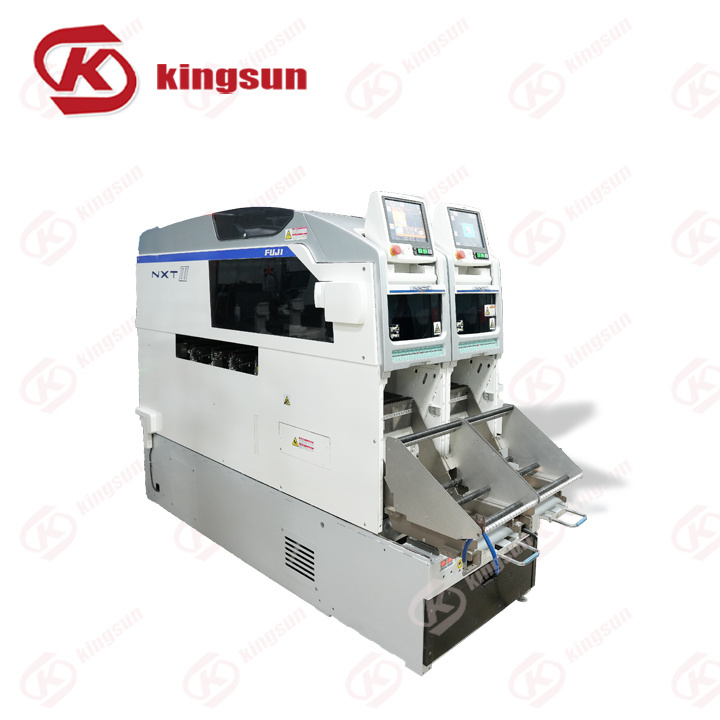

FU-JI NXT-M3III
-
Applicable PCB size (LxW):
-
M size -330 * 250mm L size -410*360mm
-
Part types:
-
Up to 20 types of parts (calculated using 8 mm tape)
-
PCB loading time:
-
for single conveyor: 2.5 sec (transport between M3 III modules)
-
Productivity:
-
H24G : 37,500 cph (priority mode) / 35,000 cph (Standard mode)
-
Power supply:
-
three-phase 220-230V
-
Air pressure:
-
0.5Mpa
-
Supported parts:
-
H24G V12/H12HS H08M H08 H04
-
Dimension:
-
645 * 1900 * 1476mm
-
Delivery:
-
UPS, DHL, FEDEX, As required
Quick Details
-
Weight (KG):
-
500
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FU-JI
-
Model Number:
-
NXT-M3III
-
Machine Type:
-
FU-JI NXT-M3III
-
Applicable PCB size (LxW):
-
M size -330 * 250mm L size -410*360mm
-
Part types:
-
Up to 20 types of parts (calculated using 8 mm tape)
-
PCB loading time:
-
for single conveyor: 2.5 sec (transport between M3 III modules)
-
Productivity:
-
H24G : 37,500 cph (priority mode) / 35,000 cph (Standard mode)
-
Power supply:
-
three-phase 220-230V
-
Air pressure:
-
0.5Mpa
-
Supported parts:
-
H24G V12/H12HS H08M H08 H04
-
Dimension:
-
645 * 1900 * 1476mm
-
Delivery:
-
UPS, DHL, FEDEX, As required
Product Description
Specification
|
MC Model
|
M3 III
|
|
|
Applicable PCB size (LxW)
|
48 x 48 mm to 250 x 510 mm (double conveyor)*
48 x 48 mm to 250 x 610 mm (single conveyor) *Double conveyors can handle PCBs up to 280 (W) mm. PCBs larger than 280 (W) mm must be produced by changing the double conveyor to single lane production mode. |
|
|
Part types
|
Up to 20 types of parts (calculated using 8 mm tape)
|
|
|
PCB loading time
|
For double conveyor: 0 sec (continuous operation)
For single conveyor: 2.5 sec (transport between M3 III modules), 3.4 sec (transport between M6 III modules) |
|
|
Placement accuracy
(Fiducial mark standard) * The placing accuracy is obtained from tests conducted by Fuji. |
H24G : +/-0.025 mm (Standard mode) / +/-0.038 mm (Productivity priority mode) (3sigma) cpk≥1.00
V12/H12HS : +/-0.038 (+/-0.050) mm (3sigma) cpk≥1.00 H04S/H04SF : +/-0.040 mm (3sigma) cpk≥1.00 H08/H04 : +/-0.050 mm (3sigma) cpk≥1.00 H02/H01/G04 : +/-0.030 mm (3sigma) cpk≥1.00 H02F/G04F : +/-0.025 mm (3sigma) cpk≥1.00 GL : +/-0.100 mm (3sigma) cpk≥1.00 |
|
|
Productivity
* The throughput above is based on tests conducted at Fuji. |
H24G : 37,500 cph (Productivity priority mode) / 35,000 cph (Standard mode)
V12 : 26,000 cph H12HS : 24,500 cph H08 : 11,500 cph H04 : 6,500 cph H04S : 9,500 cph H04SF : 10,500 cph H02 : 5,500 cph H02F : 6,700 cph H01 : 4,200 cph G04 : 7,500 cph G04F : 7,500 cph GL : 16,363 dph (0.22 sec/dot) |
|
|
Supported parts
|
H24G: 0201 to 5 x 5 mmHeight: up to 2.0 mmV12/H12HS: 0402 to 7.5 x 7.5 mmHeight: up to 3.0 mmH08M: 0603 to 45 x 45 mmHeight: up to
13.0 mmH08: 0402 to 12 x 12 mmHeight: up to 6.5 mmH04: 1608 to 38 x 38 mmHeight: up to 9.5 mmH04S/H04SF: 1608 to 38 x 38 mmHeight: up to 6.5 mmH02/H02F/H01/0F: 1608 to 74 x 74 mm (32 x 180 mm)Height: up to 25.4 mmG04/G04F:0402 to 15 x 15 mmHeight: up to 6.5 mm |
|
|
H24G
|
: 0201 to 5 x 5 mm
|
|
|
V12/H12HS
|
: 0402 to 7.5 x 7.5 mm
|
|
|
H08M
|
: 0603 to 45 x 45 mm
|
|
|
H08
|
: 0402 to 12 x 12 mm
|
|
|
H04
|
: 1608 to 38 x 38 mm
|
|
|
H04S/H04SF
|
: 1608 to 38 x 38 mm
|
|
|
H02/H02F/H01/0F
|
: 1608 to 74 x 74 mm (32 x 180 mm)
|
|
|
G04/G04F
|
:0402 to 15 x 15 mm
|
|
|
Module width
|
320 mm
|
|
|
Machine dimensions
|
L: 1295 mm (M3 III x 4, M6 III x 2) / 645 mm (M3 III x 2, M6 III)
W: 1900.2 mm, H: 1476 mm |
|
