Quick Details
-
Return Force (kN):
-
200 kN
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KLT
-
Year:
-
2022
-
Voltage:
-
220V/380V/440V
-
Dimension(L*W*H):
-
3100x1800x3500mm
-
Weight (T):
-
15 T
-
Model Number:
-
YWAZ
-
Motor Power (kw):
-
12 kw
-
Product name:
-
Straightening Machine
-
Function:
-
Straightening
-
CNC or Not:
-
Nomal
-
Color:
-
Costomized
-
Feature:
-
Adjustable Within
-
Advantage:
-
High Precision Press
-
Brand:
-
KLT
-
Nominal Capacity(T):
-
100-600
-
Type:
-
C-Type Structure
-
After-sales Service:
-
12 Month Hydraulic Press Machine
Quick Details
-
Machine Type:
-
Single Column Hydraulic Press
-
Slide Stroke (mm):
-
500
-
Ejector Force (kN):
-
160
-
Return Force (kN):
-
200 kN
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KLT
-
Year:
-
2022
-
Voltage:
-
220V/380V/440V
-
Dimension(L*W*H):
-
3100x1800x3500mm
-
Weight (T):
-
15 T
-
Model Number:
-
YWAZ
-
Motor Power (kw):
-
12 kw
-
Product name:
-
Straightening Machine
-
Function:
-
Straightening
-
CNC or Not:
-
Nomal
-
Color:
-
Costomized
-
Feature:
-
Adjustable Within
-
Advantage:
-
High Precision Press
-
Brand:
-
KLT
-
Nominal Capacity(T):
-
100-600
-
Type:
-
C-Type Structure
-
After-sales Service:
-
12 Month Hydraulic Press Machine
Product information
Name
: YWAZ Pipe straightening machine
Brand
: KLT
Item no
: YWAZ
Color
: can be customized according to customer requirements
Configuration
: Custom
Product introduction
The equipment is mainly used for deformation straightening of large steel pipe and shaft parts, suitable for finishing, oil drilling pipe, heat treatment and other companies. The equipment is easy to operate, simple and low cost. Welcome customers to buy, our company can provide 100-600T machine, delivery time of 50 days
Products Description

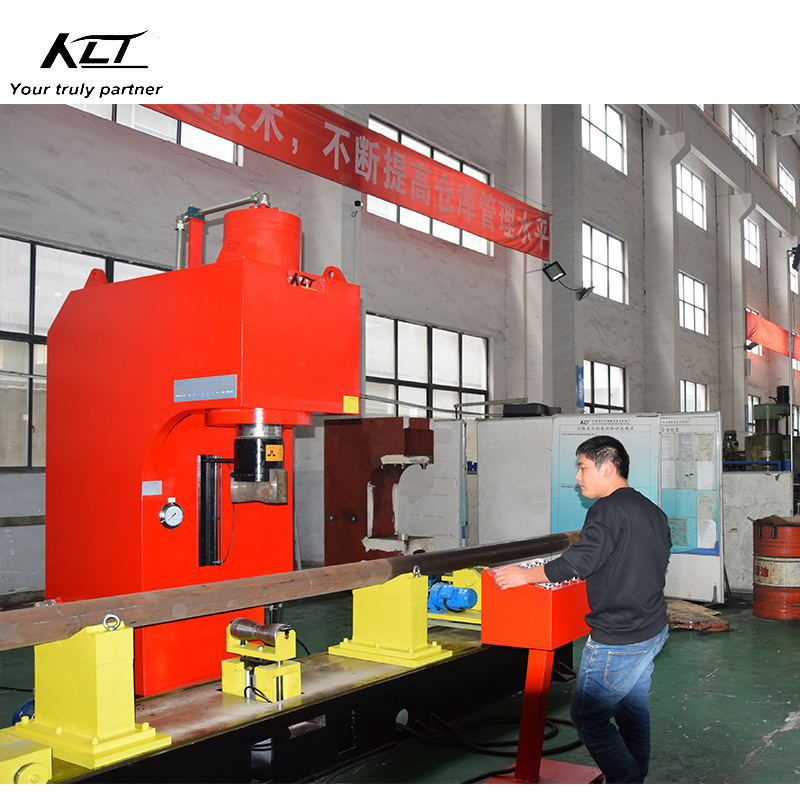

YWAZ series Steel Straightening Machine
Purpose: Straighten the deformed round pipe and round steel, and the straightened steel pipe directly reaches 50-500mm. The length is 5-10m.
Purpose: Straighten the deformed round pipe and round steel, and the straightened steel pipe directly reaches 50-500mm. The length is 5-10m.
YW41 series straightening hydraulic press
YW41 series hydraulic straightening machine is mainly used for calibrating and pressing parts of shafts and sleeves, forming, blanking, embossing and other technological purposes of related parts, especially suitable for shafts, connecting rods and various parts of automobiles and motorcycles. Calibration of various specifications of I-beam, channel steel, round bar and angle steel, and the pressure and stroke can be adjusted, and the control operation is simple.
YWZ41 series double apex straightening hydraulic press
1. YWZ41 series double top hydraulic straightening machine is mainly used for straightening and press-fit small and medium straight shaft parts, especially for shaft parts after quenching. The accuracy can be corrected to within 0.03mm.
2. The machine adopts the double top withstand the workpiece, manual inspection, mobile workstations. The height of "V"-shaped block can be adjusted. The machine uses pressurized jog or manual pump pressure, and the speed can be adjusted.
2. The machine adopts the double top withstand the workpiece, manual inspection, mobile workstations. The height of "V"-shaped block can be adjusted. The machine uses pressurized jog or manual pump pressure, and the speed can be adjusted.
YW35 straightening machine
The fuselage is gantry structure, front and rear with a liftable and feeding of the rack, convenient loading and unloading. Upper and lower pressure head can move around, and the pressure head can rotate 360 degrees. Hydraulic control adopts cartridge valve integrated system, reliable action. Electric adopts PLC centralized control, easy to operate.
YWYZ41 double top straightening machine
1. YWYZ41 series double top hydraulic straightening machine is mainly used for straightening and press-fit small and medium straight shaft parts, especially for shaft parts after quenching. The accuracy can be corrected to within 0.03mm.
2. The machine adopts the double top withstand the workpiece, manual inspection, mobile workstations. The height of "V"-shaped block can be adjusted. The machine uses pressurized jog or manual pump pressure, and the speed can be adjusted.
2. The machine adopts the double top withstand the workpiece, manual inspection, mobile workstations. The height of "V"-shaped block can be adjusted. The machine uses pressurized jog or manual pump pressure, and the speed can be adjusted.
Size Information
|
|
Unit
|
10T
|
25T
|
40T
|
63T
|
100T
|
160T
|
200T
|
315T
|
|||||||
|
Nominal Force
|
KN
|
100
|
250
|
400
|
630
|
1000
|
1600
|
2000
|
3150
|
|||||||
|
Max.pressure of liquid
|
Mpa
|
8.1
|
20.3
|
22.6
|
24.7
|
26.3
|
25
|
25
|
25
|
|||||||
|
Max.opening height
|
mm
|
140
|
130
|
300
|
300
|
300
|
500
|
500
|
600
|
|||||||
|
Shaft speed--Down stroke
|
mm/s
|
45
|
45
|
35
|
30
|
30
|
24
|
19
|
15
|
|||||||
|
Shaft speed--return
|
mm/s
|
75
|
105
|
88
|
95
|
76
|
65
|
80
|
55
|
|||||||
|
Max stroke of piston rod
|
mm
|
120
|
150
|
200
|
200
|
200
|
200
|
500
|
500
|
|||||||
|
Throat Depth
|
mm
|
140
|
140
|
240
|
300
|
300
|
325
|
380
|
380
|
|||||||
|
Movable distance of worktable
|
mm
|
100mm-300mm
|
|
|
|
|
|
|
|
|||||||
|
Table size(F.B.)
|
mm
|
300
|
350
|
350
|
400
|
400
|
500
|
600
|
600
|
|||||||
|
Table size(L.R.)
|
mm
|
1000
|
1400
|
1600
|
1600
|
1600
|
1800
|
2000
|
2000
|
|||||||
|
Operation height
|
mm
|
800
|
900
|
900
|
900
|
900
|
1000
|
1000
|
1000
|
|||||||
|
Motor power
|
KW
|
3
|
4
|
5.5
|
5.5
|
7.5
|
11
|
15
|
18.5
|
|||||||
|
Total weight
|
T
|
1.2
|
2.5
|
3.5
|
4.5
|
5.5
|
10
|
15
|
18
|
|||||||
