Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WELL
-
Dimension(L*W*H):
-
25M*5M*5M
-
Weight:
-
20000 KG
-
Name:
-
LLDPE stretch film production line
-
Raw material:
-
LLDPE
-
Keywords:
-
Extruder Machine Plastic Recycling
-
Width of finished product:
-
1500mm
-
Thickness of finished product:
-
0.01-0.05mm
-
Capacity:
-
280kg/h
-
Function:
-
Extrution
-
Application Field:
-
Producing Plastic film
-
Motor:
-
SIEMENS Brand
-
Inverter:
-
ABB
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
33:1
-
Screw Speed (rpm):
-
90 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WELL
-
Dimension(L*W*H):
-
25M*5M*5M
-
Weight:
-
20000 KG
-
Name:
-
LLDPE stretch film production line
-
Raw material:
-
LLDPE
-
Keywords:
-
Extruder Machine Plastic Recycling
-
Width of finished product:
-
1500mm
-
Thickness of finished product:
-
0.01-0.05mm
-
Capacity:
-
280kg/h
-
Function:
-
Extrution
-
Application Field:
-
Producing Plastic film
-
Motor:
-
SIEMENS Brand
-
Inverter:
-
ABB

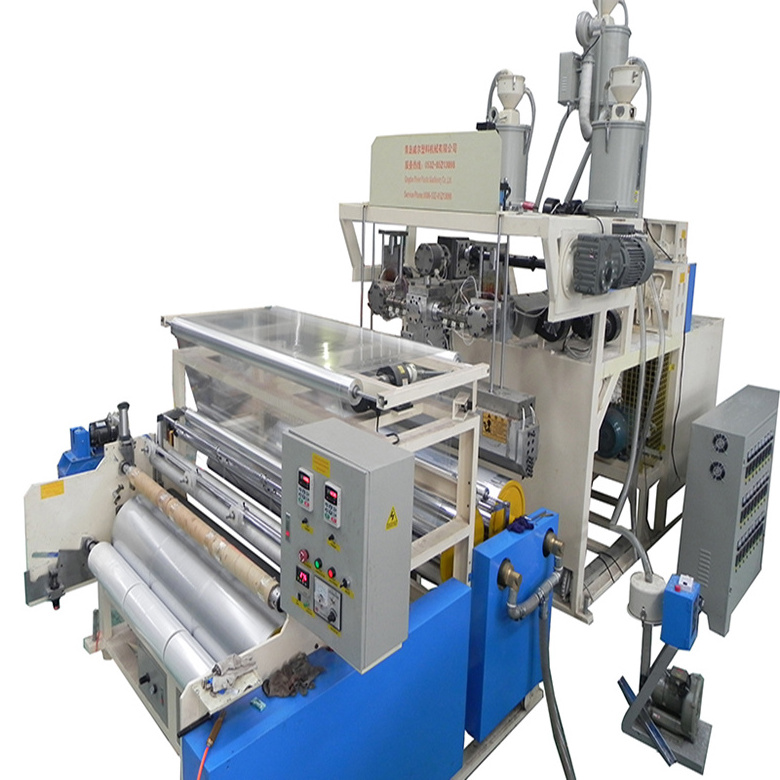

Features of Stretch Film Extrusion Line for LLDPE/PVC:
This product take LLDPE as the main materials produce stretching film with self adhesive, , tack, waterproofing, dust proof,
guards against the collapse
guards against the collapse
1.Material available: LLDPE/PVC ...
2.Width range: 1000 - 2000mm
3.Thickness: 0.01 - 0.05mm
4.Linear Speed: 50 - 120m/min
5.Output range: 100 - 400kg/h
|
Model
|
WR-55/90/65A
|
WR-65/90/65A
|
WR-65/110/65A
|
|
Screw diameter (mm)
|
55/90/65
|
65/90/65
|
65/110/65
|
|
Width of finished product
|
1500
|
1500
|
1500
|
|
Thickness of finished product
|
0.010-0.050
|
0.010-0.050
|
0.010-0.050
|
|
Structure of film layer
|
A/B/C, A/C/B/C/A
|
A/B/C, A/C/B/C/A
|
A/B/C, A/C/B/C/A
|
|
Max extrusion capacity
|
250 kg/h
|
260 kg/h
|
280 kg/h
|
|
Linear speed (m/min)
|
120
|
120
|
120
|
