1. Over-Voltage protection
2. Over-Current protection
3. Short-Circuit protection
4. 100% Hi-pot&ATE(Chroma) Tested
5. 100% Burn-in under High
6. Ambient Temperature(40℃)
7. Low Ripple/Noise
8. MTBF Above 40000 HRS AT 25℃
9. LVD authentication
10. Limited power sources(LPS)
11. CEC IV and V Efficiency
12. Cispr22 CLASS B FCC Part 15 CLASS B
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
TDX--4801250
-
Products Name:
-

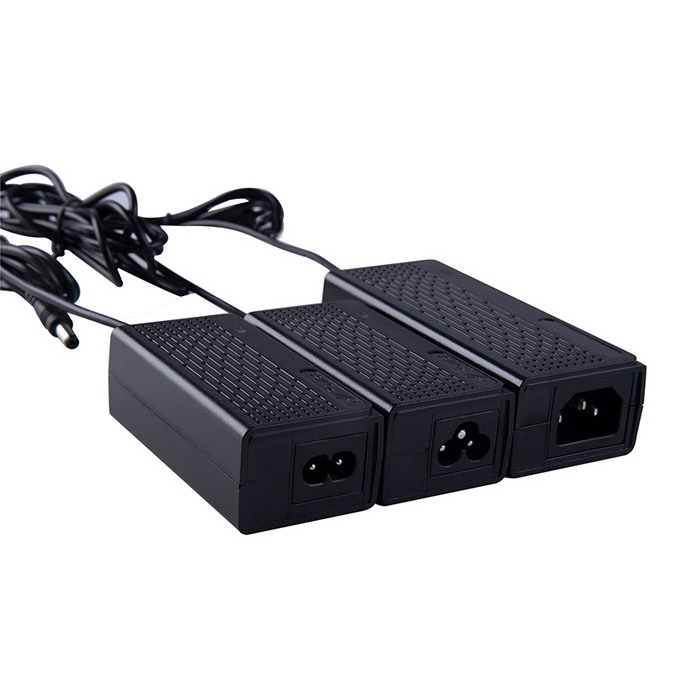

Switching Power Adapter
-
Protections:
-
Over volt, Over current, Short circuit
-
DC plug:
-
5.5*2.1or 5.5*2.5 or customized
-
Warranty:
-
2 Years
-
Color:
-
Black/White
-
DC cable length:
-
1M/ 1.2M/ 1.5M/ 1.8M/ 2M/Customized
-
Output current:
-
1A 1.25A 2A 3A
-
Output voltage:
-
24V 32V 36V 48V
-
Power:
-
60W
-
Efficiency:
-
75%-85%
Quick Details
-
Output Type:
-
DC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TDX
-
Model Number:
-
TDX--4801250
-
Products Name:
-
Switching Power Adapter
-
Protections:
-
Over volt, Over current, Short circuit
-
DC plug:
-
5.5*2.1or 5.5*2.5 or customized
-
Warranty:
-
2 Years
-
Color:
-
Black/White
-
DC cable length:
-
1M/ 1.2M/ 1.5M/ 1.8M/ 2M/Customized
-
Output current:
-
1A 1.25A 2A 3A
-
Output voltage:
-
24V 32V 36V 48V
-
Power:
-
60W
-
Efficiency:
-
75%-85%
Product Description
Features:
How to measure DC port connector
The picture shows our regular DC port connector: 5.5x2.1x10mm.This port is for connecting your device.
DC ports
We offer a variety of different DC
ports for customers to use.
Other more specifications are also
supported, welcome to inquire.
AC plugs
We also offer a variety of different
AC
plugs for customers to use.
Other more different ac plugs are also supported, welcome to inquire.
|
Voltage Range
|
100~240V AC
|
|
Frequency Range
|
50/60HZ
|
|
Efficiency
|
85% min
|
|
DC Voltage
|
24V 32V 36V 48V
|
|
Rated Current
|
1A 1.25A 2A 3A
|
|
Voltage Tolerance
|
±5%
|
|
Storange Temp., Humidity
|
-20~+85℃, 10~95%RH
|
|
Working Temp
|
-10~+65℃
|
|
Working Humidity
|
20~90% RH non-condensing
|
Application
Suitable for various applications
LCD Monitor, LED Lights, HDD Enclosure, CCTV, Car DVR, ADSL, Digital Photo Frame, Mobile Phone, Laptop, Tablet PC, Refrigerators, Portable DVD, Set Top Box, Radio, Security System Products, Medical Facilities, Massage Products, Electronics Products etc.
LCD Monitor, LED Lights, HDD Enclosure, CCTV, Car DVR, ADSL, Digital Photo Frame, Mobile Phone, Laptop, Tablet PC, Refrigerators, Portable DVD, Set Top Box, Radio, Security System Products, Medical Facilities, Massage Products, Electronics Products etc.
