Quick Details
-
Filling Accuracy:
-
99.9%
-
Voltage:
-
Customized
-
Place of Origin:
-
Jiangsu, China
-
Dimension(L*W*H):
-
2200X2100X2200mm
-
Weight:
-
2500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Processing Types:
-
Normal Pressure Filling
-
Filling material:
-
Flowing Liquid
-
Capacity:
-
2000-30000bph
-
Material:
-
Stainless Steel 304/316
-
Bottle type:
-
PET Plastic Bottle
-
Model:
-
XGF
-
Filling volume:
-
200ml-2000ml
-
Control:
-
PLC+ Touch Screen
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, Other, 12000BPH, 6000BPH, 400BPH, 20000BPH, 16000BPH, 500BPH, 2000BPH, 1000BPH, 100BPH, 200BPH
-
Packaging Material:
-
Plastic
-
Filling Material:
-
Water
-
Filling Accuracy:
-
99.9%
-
Voltage:
-
Customized
-
Place of Origin:
-
Jiangsu, China
-
Dimension(L*W*H):
-
2200X2100X2200mm
-
Weight:
-
2500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Processing Types:
-
Normal Pressure Filling
-
Filling material:
-
Flowing Liquid
-
Capacity:
-
2000-30000bph
-
Material:
-
Stainless Steel 304/316
-
Bottle type:
-
PET Plastic Bottle
-
Model:
-
XGF
-
Filling volume:
-
200ml-2000ml
-
Control:
-
PLC+ Touch Screen
Product Description
|
Applied for
|
Pure water，mineral water，spring water etc
|
|
|
||
|
Suitable for
|
PET bottles
|
|
|
||
|
Production capacity
|
1000BPH~36000BPH
|
|
|
||
|
Filling system
|
Gravity filling
|
|
|
||
|
Material
|
Stainless steel 304(SUS 316 can be customized)
|
|
|
||
|
Color
|
silvery
|
|
|
||
|
Standard
|
ISO CE
|
|
|
||
Features.
Washing, filling and capping are intergrated in one machine. Our machine is fully automatic and have scientific and reasonable design. Also with beautiful appearance and complete functions, it’s easy to operate and maintain. We all use advanced German technology and Italian technnology.
Bottle changing is easy. There is no need to adjust the height of machine through neck holding tech for bottle trans portation. And what is only to change the spare parts.
The bottle goes through rinsing, filling and capping with little abrasion. High speed filling valve assures high speed and exact liquid level control.
We all use 304 stainless steel or food level material to ensure the high quality of our machine. PLC control system is used and electric parts are using famous brand like Mitsubishi Siemens Schneider and so on.
|
water filling machine parameters
|
|
|
|
|
|
|
||||||
|
Filling Volume
|
|
500ml as standard (the capacity will be different if use other bottle size )
|
|
|
|
|
||||||
|
Bottle Type
|
|
Round or square PET bottle
|
|
|
|
|
||||||
|
Voltage
|
|
3 phase 380V/50HZ(can be customized)
|
|
|
|
|
||||||
|
Filling Precision
|
|
<0.5%
|
|
|
|
|
||||||
|
Bottle Diameter Applicable
|
|
33mm-150mm
|
|
|
|
|
||||||
|
Air Pressure
|
|
0.5-0.7Mpa
|
|
|
|
|
||||||
|

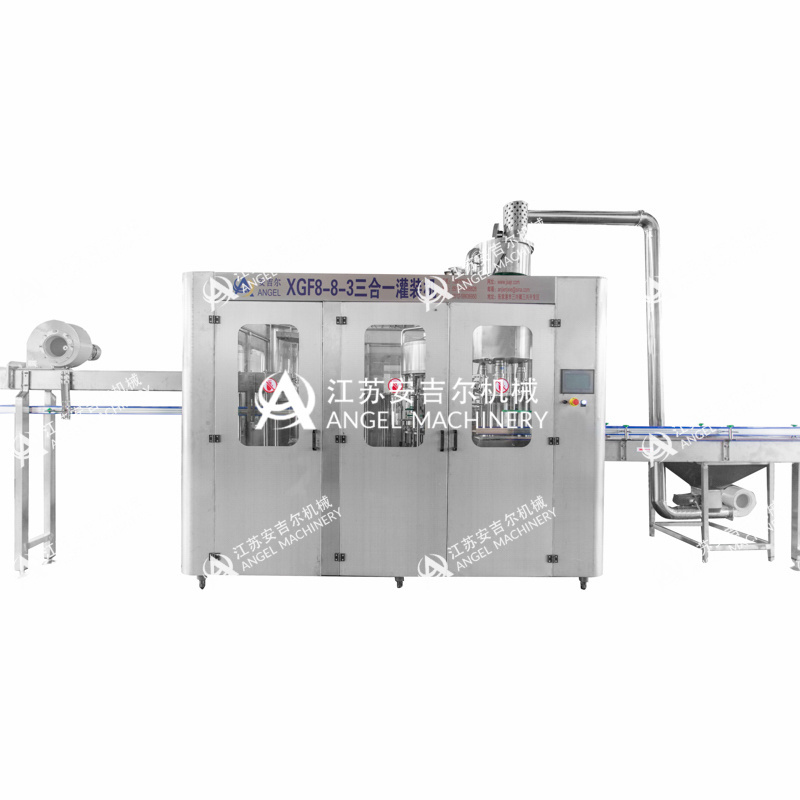

Model
|
8-8-3
|
12-12-6
|
18-18-6
|
24-24-6
|
32-32-10
|
40-40-10
|
||||||
|
capacity
|
3000BPH
|
5000BPH
|
8000BPH
|
12000BPH
|
15000BPH
|
18000BPH
|
||||||
|
Weight
|
1000kg
|
1500KG
|
1800KG
|
2000KG
|
3000KG
|
3600KG
|
||||||
|
Size of whole machine
(length*width*height）
|
2100*1600*2500mm
|
2300*1700*2500mm
|
2400*1900*2500mm
|
2900*2100*2500mm
|
4000*2300*2500mm
|
4600*2500*2500mm
|
||||||
Washing part
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
Filling part
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
Capping Part
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during
capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
Electric Parts
Products Show
Our Service
Bottle Design
We can help clients design the bottle.
Workshop design
Reasonable ueing space.
Label design
Design labels according to our clinet's requirements.
Our Factory
Packing & Delivery
Packing Details : Mineral Water Filling Machine
Standard export packing suitable for long distance land and sea transportation.
Delivery Details : 20 working days Ex-factory - after receiving advance payment, confirmation of layout and bottle drawings & receiving the bottle caps and samples.
Customer service
Provide 24 hours Information Service
Pick you up to our factory
Welcome to our factory to have a visit, and we can pick you up from the airport or railway station.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory. Also we have our own bottle preform factory. if you buy bottle preform from us. we can provide 2 years, 3 years quality guarantee for the filling machine.
Q: How long is your delivery time?
A: Generally 20~65 working days Ex-factory (according to the model of filling machine)- after receiving advance payment, confirmation of layout and bottle drawings & receiving the bottle caps and samples.
Q: Can you provide bottle or label design service
A: Sure, we can. we can help our clients design the label, bottle and workshop.
Q: What is your terms of payment ?
A: 30% TT as down payment, 70% before delivery
