Quick Details
-
Machinery Capacity:
-
vacuum cooker for hard candy
-
Machinery Function:
-
vacuum jam cooker
-
Application:
-
Continuous Batch vacuum cooker
-
Heating:
-
by steam,electric,gas
-
Voltage:
-
110-480V,50/60Hz
-
type:
-
vacuum sugar cooker
-
Usage:
-
pressure cooker
-
Function:
-
Steamer Kettle Gas Cooking Pot with Mixer
-
Capacity:
-
50-1000L
-
Material:
-
Stainless Steel 304/316L
-
Agitator:
-
scraper mixer
-
Name:
-
gas cooking kettle high boiled sugar Automatic batch vacuum cooker
Quick Details
-
Weight (KG):
-
100
-
Place of Origin:
-
China
-
Brand Name:
-
L&B
-
Machinery Capacity:
-
vacuum cooker for hard candy
-
Machinery Function:
-
vacuum jam cooker
-
Application:
-
Continuous Batch vacuum cooker
-
Heating:
-
by steam,electric,gas
-
Voltage:
-
110-480V,50/60Hz
-
type:
-
vacuum sugar cooker
-
Usage:
-
pressure cooker
-
Function:
-
Steamer Kettle Gas Cooking Pot with Mixer
-
Capacity:
-
50-1000L
-
Material:
-
Stainless Steel 304/316L
-
Agitator:
-
scraper mixer
-
Name:
-
gas cooking kettle high boiled sugar Automatic batch vacuum cooker
Product Description

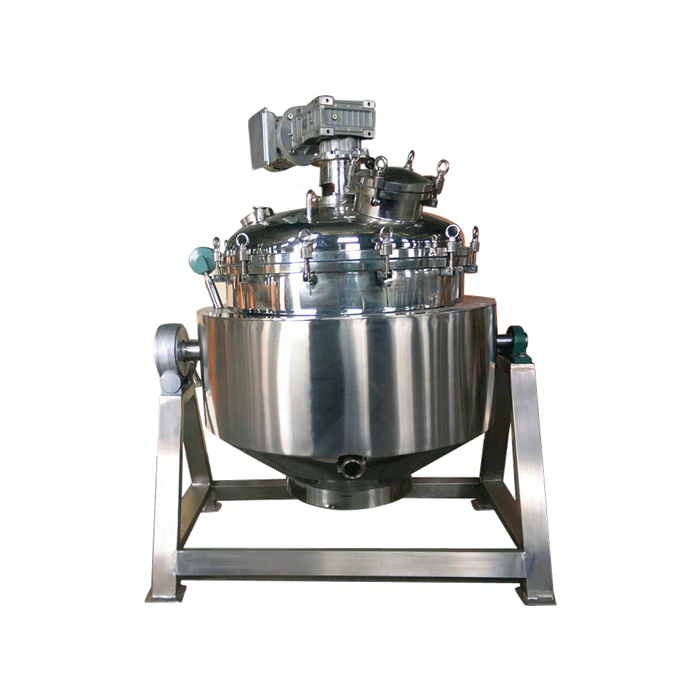

Commercial Catering porridge making Processing kettle vacuum cooking sugar to Caramel Automatic batch boiling cooker
This machine is suitable for mixing, concentrating and decocting the material in foodstuff industry etc.
It is the best choose for jam making such as the matt jam and strawberry jam making, tomato sauce making and candy, medicine, dairy, alcohol, cake, beverage, sweetmeat.
This machine is composed of kettle ,backet ,worm wheel and worm etc. The kettle can revolve with 180 degree.
The machine is made of stainless steel SUS304,which has perfect corrsion-proof performance, and is highly endurable according to GMP requirements.
Blender also can be added according customer requirements.
|
Model
|
Volume Diameter×Height
|
Form
|
Pressure
(mpa)
|
Agitator Speed
(r/min)
|
slope angel
|
Inlet&Outlet
|
Motor Power
|
|
JCG-50
|
50
60×45 |
Tilting
Stirring |
0.3
|
36
|
90°
|
1/2"
|
0.75kw
|
|
JCG-100
|
100
70×50 |
Tilting Stirring Fixed
|
|
36
|
90°
|
3/4"
|
0.75kw
|
|
JCG-200
|
200
80×55 |
Tilting Stirring Fixed
|
|
36
|
90°
|
3/4"
|
1.5kw
|
|
JCG-300
|
300
90×65 |
Tilting Stirring Fixed
|
|
36
|
90°
|
3/4"
|
1.5kw
|
|
JCG-400
|
400
100×75 |
Tilting Stirring Fixed
|
|
36
|
90°
|
3/4"
|
1.5kw
|
|
JCG-500
|
500
110×85 |
Tilting Stirring Fixed
|
|
23
|
90°
|
1"
|
2.2kw
|
|
JCG-600
|
600
120×95 |
Tilting Stirring Fixed
|
|
23
|
90°
|
1"
|
2.2kw
|
|
JCG-1000
|
1000
1400×115 |
Tilting Stirring Fixed
|
|
23
|
90°
|
1"
|
3.7kw
|
Detailed Images
Quality stainless steel
1.SS304 and SS316 sanitary stainless steel
2. sanitary polishing, 3A standard
adopt rapid installation type connection form, with convenient assembly, disassembly and cleaning.
Motor device
1. Pure copper motor: low noise, stable dynamic, sustainable work.
2. Taiwan GPG motor and reducer
3. Dismountable engine base
4. Stainless steel bearing
5. Heat resisting seal ring(To prevent the steam into the bearing and speed reducer)
6. No positioning at the bottom of the shaft (Reduce the residual)
Cover and feeding hole
bolted shell cover and pressure manhole, cover and mixer could be easy taken down
Mechanical seal pressure manhole bolts for cover flange
prevent medium in the device leaking, keep inside tank under pressure or vacuum.
Swiveling mechanism
standard configuration, worm wheel and worm are cast iron; SS304 can be Optional. Bracket adopt stainless steel.
Stirring device
adopt Import material scraper blade, easy to clean and disassemble, few dead angle, prevent viscous material from adhering on the wall.
SUS electric control box avaible
1. intelligent temperature controller, SUS304 box
2. split type PT100 thermal resistance
3. Germany Schneider Electric Components
Full steel base
Can withstand greater pressure, stable work
Gas heating method option
single layer heating structure:
heating product direct through heating inner layer which contact with product, outer layer keep warm
Gas heating method option
double jacket heating structure:
heating product indirect through heating heat-conducting oil, in standard the highest temperature up to 150C(more over should use higher boiling point heat-conducting oil)
