Quick Details
-
The Max diameter of repairing Flywheel:
-
500mm
-
Table Diameter:
-
450mm
-
After Warranty Service:
-
Online support
Quick Details
-
Place of Origin:
-
China
-
Weight (KG):
-
20
-
Core Components:
-
Magnetic table
-
The Max diameter of repairing Flywheel:
-
500mm
-
Table Diameter:
-
450mm
-
After Warranty Service:
-
Online support

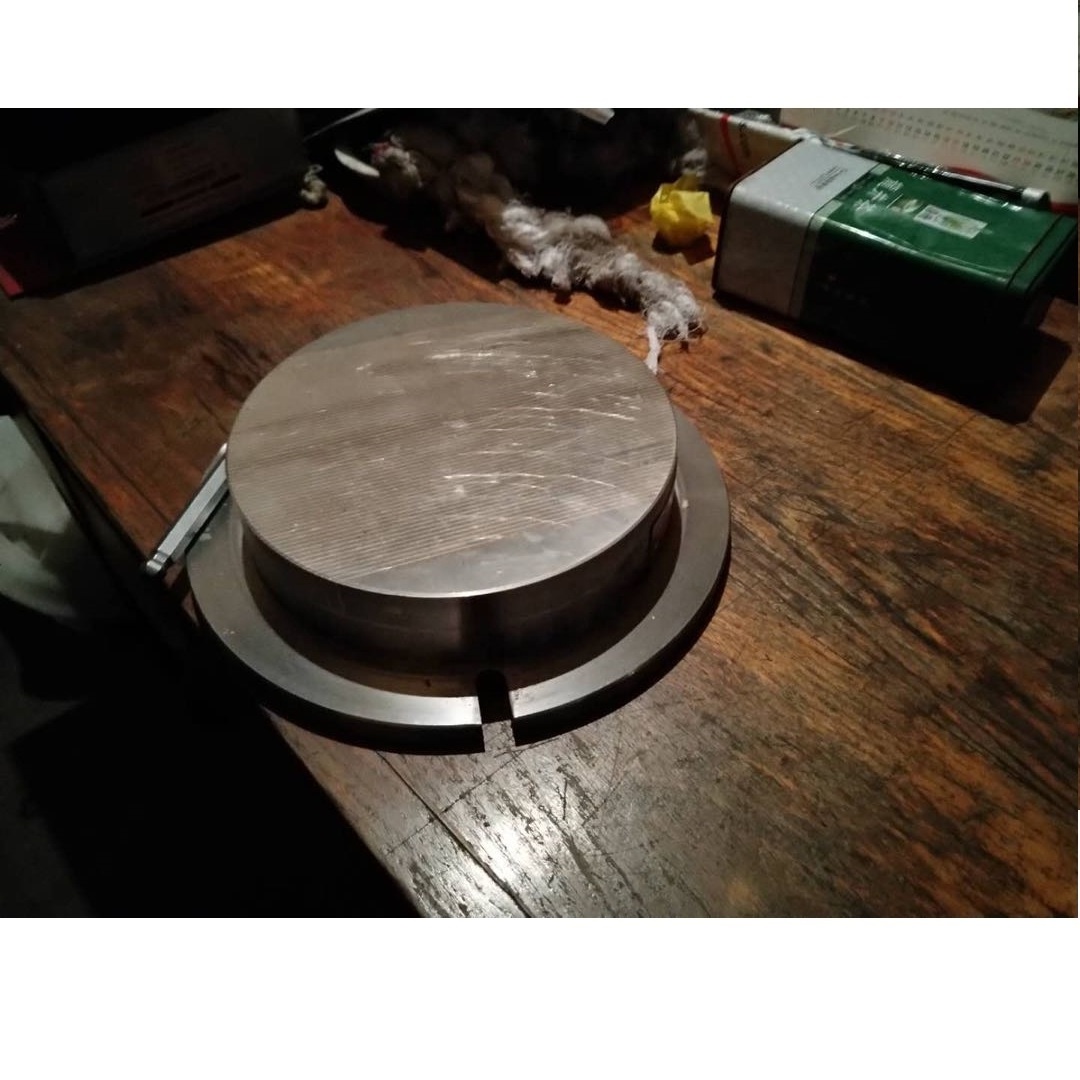

Magnetic table 450mm for Flywheel &Clutch Pressure Plate Grinding Machine FG500
Features
Use and performance of the vehicle repair industry is grinding to repair the vehicle flywheel special machine tools, has a simple structure and reliable performance characteristics such as grinding may be less than the diameter of the fly wheel 500mm ,The rigid machine tool performance, the work of high precision, fast speed, processing efficient, simple and convenient maintenance is and ideal tool for special flywheel grinding.
The type of grinding machine Tool grinder.
Main specifications
|
Model |
FG500 |
|
Table Diameter |
450mm |
|
The Max diameter of repairing Flywheel |
500 mm |
|
The Max Distance from spindle to table |
200mm |
|
Rotational Speed of Grinding wheel |
2800r/min |
|
The rotational speed of table |
17/34r/min |
|
The motor of grinding wheel |
3 kw/400V/50HZ |
|
The motor of table |
1400/700r/min 0.4/0.22KW/400V/50HZ |
|
Cooling pump |
0.12KW |
|
Overall dimensions |
1200X800X1750(mm) |
Standard Accessories:
Tool bar and tool bit, grinding wheel, abrasive dresser, eccentric washer, alignment sheath, bracket, Locator mandrel, T type gutter bolt, nut, washer.wrench, Foundation bolt.
