Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Item:
-

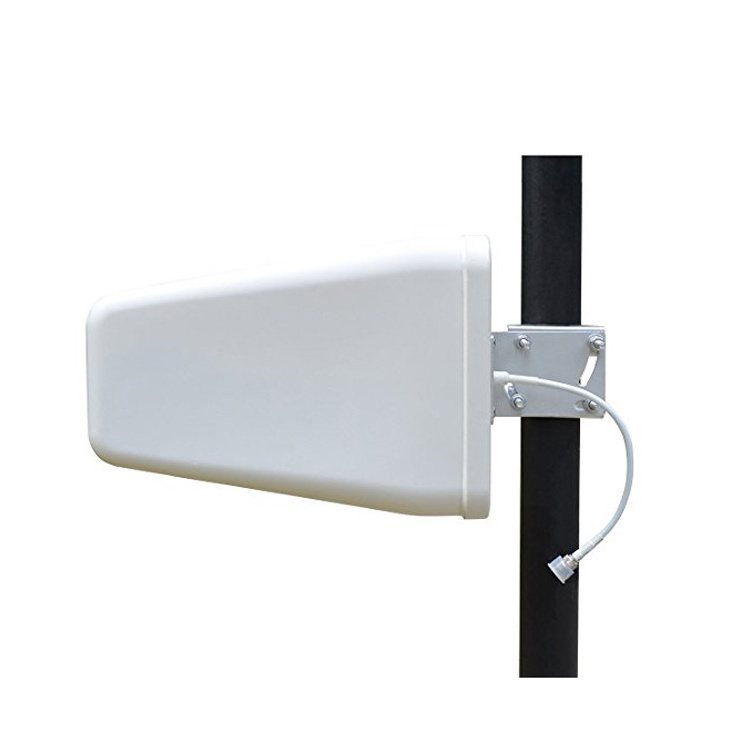

4G LTE panel antenna
-
Frequency Range:
-
700-2700MHz
-
Gain:
-
11dbi
-
VSWR:
-
1.5
-
Connector:
-
N female for fiberglass antenna
-
Input power:
-
50W
-
Impedance:
-
50Ω
-
Antenna length:
-
300*210*50mm
-
Horizontal Beamwidth:
-
360℃
-
Vertical Beamwidth:
-
30±10℃
Quick Details
-
Type:
-
DAS Antenna
-
Brand Name:
-
WAVELINK
-
Model Number:
-
WL-4GE300210
-
Place of Origin:
-
Jiangsu, China
-
Item:
-
4G LTE panel antenna
-
Frequency Range:
-
700-2700MHz
-
Gain:
-
11dbi
-
VSWR:
-
1.5
-
Connector:
-
N female for fiberglass antenna
-
Input power:
-
50W
-
Impedance:
-
50Ω
-
Antenna length:
-
300*210*50mm
-
Horizontal Beamwidth:
-
360℃
-
Vertical Beamwidth:
-
30±10℃
Products Description
Specification
|
Frequency Range
|
700-2700MHz
|
|
VSWR
|
≤1.5
|
|
Gain
|
11dBi
|
|
Polarization Type
|
Vertical
|
|
Horizontal Beamwidth
|
360℃
|
|
Vertical Beamwidth
|
30±10℃
|
|
Output Impendence
|
50Ω
|
|
Max Input Power
|
50 w
|
|
Lightning Protection
|
DC to Ground
|
|
Antenna Length (mm)
|
300*210*50mm
|
|
Connector Type
|
N or customized
|
|
Antenna material
|
copper
|
|
Rated Wind Velocity
|
36.9m/s
|
|
Operational Humidity
|
< 95%
|
|
Operation Temperature
|
-40℃ to 85℃
|
|
Storage temperature
|
-40℃ to 70℃
|
