Quick Details
-
Model Number:
-
HC510-12
-
Sensor:
-
1/2.8" CMOS Sensor
-
Interface:
-
USB3.0
-
Lens:
-
12X Optional Zoom
-
White balance:
-
Auto
-
Video Output:
-
HDMI-SDI USB3.0 NDI
-
Control Interface:
-
RS232/RS485
-
Preset Number:
-
255
-
Suitable for:
-
Live Remote Conference Online Teaching
-
Function:
-
ai tracking
-
Type:
-
camera for conferencing/live streaming
Quick Details
-
Color:
-
black
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Luckimage
-
Model Number:
-
HC510-12
-
Sensor:
-
1/2.8" CMOS Sensor
-
Interface:
-
USB3.0
-
Lens:
-
12X Optional Zoom
-
White balance:
-
Auto
-
Video Output:
-
HDMI-SDI USB3.0 NDI
-
Control Interface:
-
RS232/RS485
-
Preset Number:
-
255
-
Suitable for:
-
Live Remote Conference Online Teaching
-
Function:
-
ai tracking
-
Type:
-
camera for conferencing/live streaming
Product Description
|
Main Feature
|
|
|
||
|
UHD 4K
|
Ai Auto track
|
12X optical zoom
|
||
|
USB/SDI/HD MI/LAN(POE)
|
Horizontal rotation: 340°,
Vertical rotation: -30° ~ +90° |
audio in(3.5mm line in) AAC/MP3/G.711A format
|
||
|
RS232/422(compatible RS485)
VISCA/Pelco-D/Pelco-P protocol |
RTSP, RTMP, ONVIF, RTMPS, SRT, GB/T28181, VISCA OVER IP, IP VISCA
|
Up to 255 presets via joystick controller
|
||

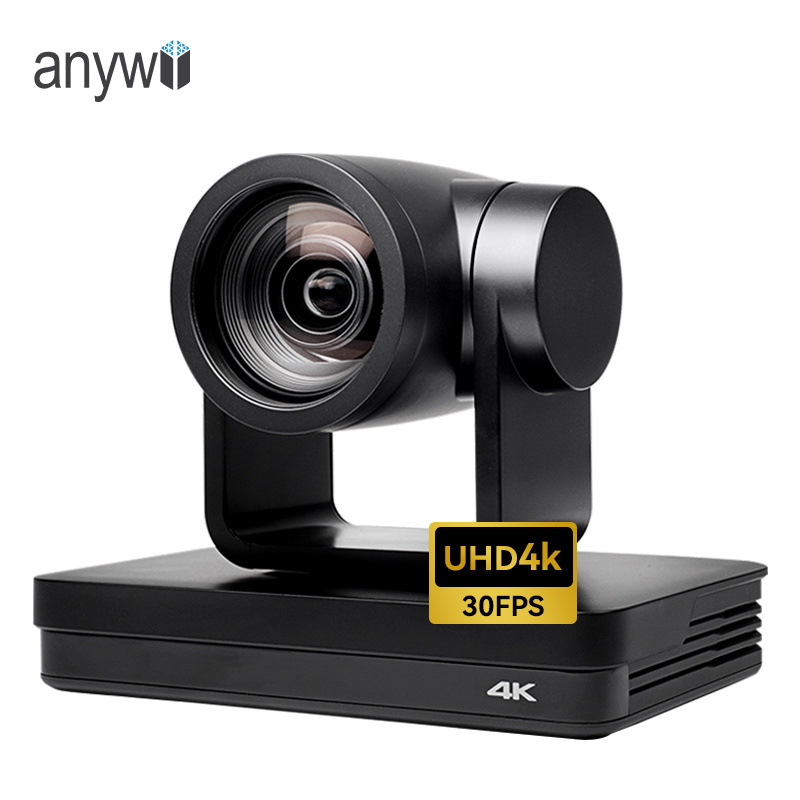

4K Auto Track PTZ Camera, USB HD-MI SDI 4K PTZ Camera 12X
■ 8.5 megapixel SONY CMOS sensor, reach 4K (3840 × 2160)@30fps
■ AI Auto track and auto framing according the presenter
■ 12x lossless optical zoom lens supports framing adjustment
■ USB/HD-MI/SDI LAN (POE) video output to meet various needs
■ Support audio in(3.5mm line in) and AAC/MP3/G.711A compression format
■ Support RTSP, RTMP, ONVIF, RTMPS, SRT, GB/T28181, VISCA OVER I, IP VISCA protocols
■ Support H.265/H.264 encoding, making the picture smoother and clearer under low bandwidth.
■ Pan 340°, tilt 120°; achieve fast, quiet and precise pan-tilt movement
■ Multiple presets setting, 10 presets via infrared remote control, 255 presets via joystick controller
■ Various Installtaion method, Desktop,tripod,wall mount, ceiling mount(inversion installation)
■ AI Auto track and auto framing according the presenter
■ 12x lossless optical zoom lens supports framing adjustment
■ USB/HD-MI/SDI LAN (POE) video output to meet various needs
■ Support audio in(3.5mm line in) and AAC/MP3/G.711A compression format
■ Support RTSP, RTMP, ONVIF, RTMPS, SRT, GB/T28181, VISCA OVER I, IP VISCA protocols
■ Support H.265/H.264 encoding, making the picture smoother and clearer under low bandwidth.
■ Pan 340°, tilt 120°; achieve fast, quiet and precise pan-tilt movement
■ Multiple presets setting, 10 presets via infrared remote control, 255 presets via joystick controller
■ Various Installtaion method, Desktop,tripod,wall mount, ceiling mount(inversion installation)
Specification
|
Equipment and lens parameters
|
|
|
|
Image sensor sensor
|
1/2.8 inch high quality CMOS sensor
|
|
|
Effective pixels
|
851M、16：9
|
|
|
The video signal
|
4K30FPS
|
|
|
Lens optical magnification
|
12x optical zoom
|
|
|
perspective
|
Level: 6.5° (narrow Angle) ~ 70.9° (wide Angle)
|
|
|
Aperture coefficient
|
F1.6 ～ F2.8±5%
|
|
|
Digital variable times
|
15x
|
|
|
Minimum illumination
|
0.5Lux(F1.8, AGC ON)
|
|
|
Digital noise reduction
|
2D&3D digital noise reduction
|
|
|
The white balance
|
Automatic/Manual/One button White Balance/Specified color temperature
|
|
|
Focused mode
|
Auto/Manual/One-click focus
|
|
|
SNR
|
>50dB
|
|
|
Interface Function Performance
|
|
|
|
Product ports
|
HDMI, SDI, LAN(supporting POE), USB3.0, A-IN, RS232-IN, RS232-OUT, RS422(compatible with RS485), DC12V power supply, DIP switch,
power switch |
|
|
AI Tracking
|
|
|
|
Real-time tracking
|
The maximum tracking distance is 6 to 7 meters, and the speaker can be supported to walk at a speed of 3 to 4 miles
|
|
|
Regional tracking
|
Four tracking areas can be set horizontally from -170° to +170° and vertically from -30° to +90°
|
|
|
PTZ parameters
|
|
|
|
Rotate horizontally
|
-170° to +170°
|
|
|
Pitch rotation
|
-30° to +90°
|
|
|
Number of preset
|
The user can set up to 255 preset bits (10 remote control)
|
|
