Quick Details
-
Model Number:
-
DH500
-
Keywords:
-
turbine flow meter
-
Medium:
-
liquid,gas
-
Connection:
-
screw,flange
-
Nominal size:
-
DN6~150
-
Certificate:
-
CE,ROHS,TUV,ISO
-
Power:
-
+24V DC
-
Medium temperature:
-
-20℃~+80℃
-
Accuracy:
-
1%,0.5%
-
Feature:
-
Turbine Meters
-
Warranty:
-
one year
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Oil Flowmeters
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Darhor
-
Model Number:
-
DH500
-
Keywords:
-
turbine flow meter
-
Medium:
-
liquid,gas
-
Connection:
-
screw,flange
-
Nominal size:
-
DN6~150
-
Certificate:
-
CE,ROHS,TUV,ISO
-
Power:
-
+24V DC
-
Medium temperature:
-
-20℃~+80℃
-
Accuracy:
-
1%,0.5%
-
Feature:
-
Turbine Meters
-
Warranty:
-
one year

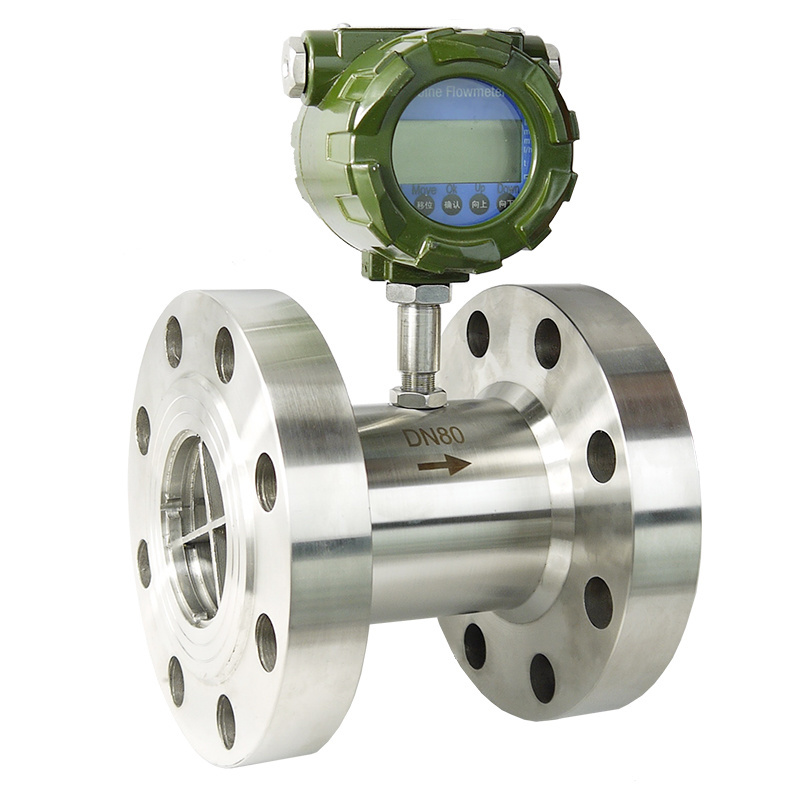

DH500 JIS ANSI flange connection turbine gas flow meter
Feature
Hi-Accuracy 0.5%, 1% optional
Wearable Tungsten carbonized shaft and bearing, be the same with the medium of sully
Erode-resistant Be the same with sea water, ammonia, acetometer, etc.
Bi-direction Measuring bi-direction flow (optional)
Multi-output Pulse, 420mA DC, total and rate display in the field
Power supply 524V DC
Explode-proof Ex dBT4
Spectrum 2*,4*,6,10,15,25,40,50,80,100,150,200,250,300mm
|
DN (mm) |
Flow range (m 3 /h) |
Medium temp. () |
PN (MPa) |
Env. Temp. () |
Ppressure loss (MPa) |
|||||
|
Error 0.2% * |
Error 0.5% * |
Error 1.0% * |
||||||||
|
Min |
Max |
Min |
Max |
Min |
Max |
|||||
|
2A * |
|
|
|
|
0.03 |
0.16 |
-20 +120 (150*) |
6.3 |
-25
|
0.12 |
|
4A * |
|
|
|
|
0.04 |
0.25 |
||||
|
6A |
|
|
|
|
0.1 |
0.6 |
6.3 16 * 25 * 40 * |
0.08 |
||
|
10A |
|
|
|
|
0.2 |
1.2 |
0.05 |
|||
|
15A |
|
|
0.6 |
4 |
0.6 |
6 |
0.035 |
|||
|
25A |
|
|
1.6 |
10 |
1 |
10 |
||||
|
40A |
3 |
20 |
3 |
20 |
2 |
20 |
2.5 |
0.025 |
||
|
50A |
6 |
40 |
6 |
40 |
4 |
40 |
||||
|
80A |
16 |
100 |
16 |
100 |
10 |
100 |
||||
|
100A |
25 |
160 |
25 |
160 |
20 |
200 |
1.6
|
|||
|
150A |
60 |
400 |
50 |
300 |
40 |
400 |
||||
|
200A |
|
|
100 |
600 |
80 |
800 |
||||
|
250A |
|
|
160 |
1000 |
120 |
1200 |
1.6 |
|||
|
300A |
|
|
260 |
1600 |
180 |
1800 |
||||
