Quick Details
-
Table Travel (Z) (mm):
-
0 mm
-
Travel (W-axis) (mm):
-
0 mm
-
Marketing Type:
-
New Product 2023
-
Range of Spindle Speed(r.p.m):
-
1000 r.p.m
-
Place of Origin:
-
China
-
Weight (T):
-
1.75 T
-

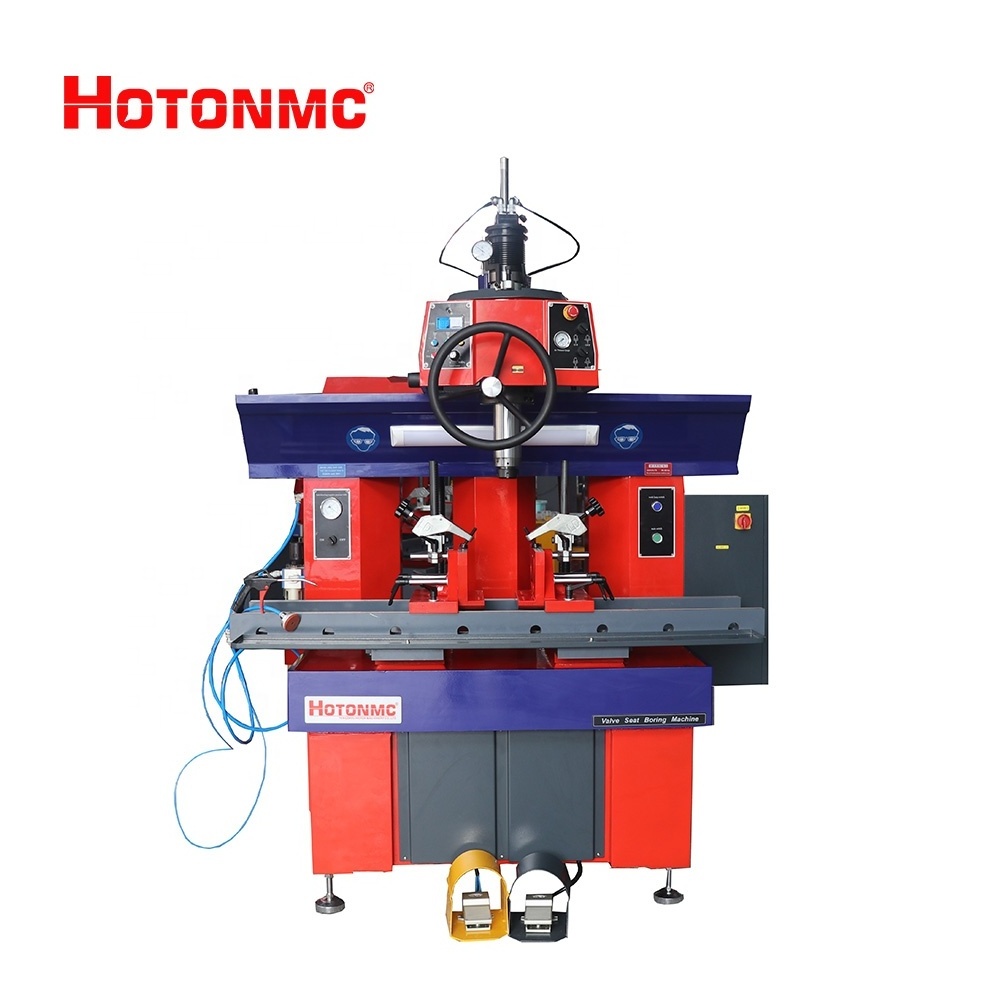

Product name:
-
boring machine
-
Color:
-
Customized
-
Item:
-
LD180A
-
Payment Term:
-
T/T 30% Deposit
-
Function:
-
Car Repair
-
Application:
-
Vehicle Repair Tool
-
Capacity:
-
14-120mm
Quick Details
-
Table Size (mm):
-
Other
-
Table Travel (X) (mm):
-
0 mm
-
Table Travel (Y) (mm):
-
0 mm
-
Table Travel (Z) (mm):
-
0 mm
-
Travel (W-axis) (mm):
-
0 mm
-
Marketing Type:
-
New Product 2023
-
Range of Spindle Speed(r.p.m):
-
1000 r.p.m
-
Place of Origin:
-
China
-
Weight (T):
-
1.75 T
-
Product name:
-
boring machine
-
Color:
-
Customized
-
Item:
-
LD180A
-
Payment Term:
-
T/T 30% Deposit
-
Function:
-
Car Repair
-
Application:
-
Vehicle Repair Tool
-
Capacity:
-
14-120mm
SPECIFICATIONS:
|
Model
|
Unit
|
LD-180A
|
LD-180B
|
LD-180C
|
||
|
Max. Length of the cylinder head
|
mm
|
unlimited
|
unlimited
|
unlimited
|
||
|
Max. Width of the cylinder head
|
mm
|
500
|
500
|
500
|
||
|
Max. Height of the cylinder head
|
mm
|
450
|
450
|
450
|
||
|
Crosswise work piece tilting
|
degree
|
+45°~-15°
|
+45°~-15°
|
+45°~-15°
|
||
|
Boring capacity dia.(min-max)
|
mm
|
14-70
|
14-90
|
14-120
|
||
|
lengthwise
|
mm
|
930
|
1000
|
1300
|
||
|
Crosswise
|
mm
|
40
|
40
|
40
|
||
|
Sphere-cylinder travel
|
mm
|
9
|
9
|
9
|
||
|
Power of the spindle
|
W
|
1800
|
2200
|
2200
|
||
|
Spindle rotation speed
|
rpm
|
20-1000
|
20-1000
|
20-1000
|
||
|
Spindle travel
|
mm
|
200
|
200
|
200
|
||
|
Max. Spindle incination
|
degree
|
5.5
|
5.5
|
5.5
|
||
|
Electric supply
|
|
380V 50HZ 3Ph or 220V 60HZ 3Ph
|
|
|
||
|
Air pressure
|
Bar/psi
|
6/87
|
6/87
|
6/87
|
||
|
Max. Air flow
|
1/mn-CFM
|
300/11
|
300/11
|
300/11
|
||
|
Level of noise at 400RPM
|
dba
|
65
|
65
|
65
|
||
|
Level of noise at 1200RPM
|
dba
|
82
|
82
|
82
|
||
|
Net weight
|
Kg/1bs
|
1550
|
1680
|
1750
|
||
|
machine dimension
|
mm
|
1750x1050x2170
|
1750x1150x2200
|
2060x1150x2200
|
||
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,balance before shippment. If you have another question, pls feel free to contact us as below.
