Quick Details
-
Dimension(L*W*H):
-
18590*3245*3140 mm
-
Weight:
-
162 KG
-
Drilling Depth:
-
Max.116m
-
Mobility:
-
mobile
-
Model:
-
SR445R-H10
-
Line Pull:
-
400kN
-
Stroke:
-
10000/21000mm
-
Engine Power:
-
377/1800kW/rpm
-
Max. Line Speed:
-
60m/min
-
Rope Diameter:
-
40mm
-
Operating Weight:
-
162T
-
Max. Pile Depth:
-
116/95m
-
Max. Pile Diameter:
-
3000mm
-
Rotary Drive:
-
400KN
Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Cruking
-
Voltage:
-
220V / 380V
-
Dimension(L*W*H):
-
18590*3245*3140 mm
-
Weight:
-
162 KG
-
Drilling Depth:
-
Max.116m
-
Mobility:
-
mobile
-
Model:
-
SR445R-H10
-
Line Pull:
-
400kN
-
Stroke:
-
10000/21000mm
-
Engine Power:
-
377/1800kW/rpm
-
Max. Line Speed:
-
60m/min
-
Rope Diameter:
-
40mm
-
Operating Weight:
-
162T
-
Max. Pile Depth:
-
116/95m
-
Max. Pile Diameter:
-
3000mm
-
Rotary Drive:
-
400KN
Ce Certifi e Ground Hole Drilling Machines Hydraulic Rotary Drilling Rig
Feature
PC EVI Comprehensively manage the equipment, including real-time construction information, maintenance, etc.; At the same time, it can also manage the equipment cluster and display multiple equipment and lo ion information. Electronic fence can be set. When the equipment is out of the area, an alarm will be given.
Specifi ion
| Model | SR265-C10 | SR365R-W10 | SR400R-W10 | SR445R-H10 | SR580R-H11 |
| Crowd System | |||||
| Line Pull | 275kN | 360kN | 380kN | 400kN | 550kN |
| Stroke | 5000mm | 9000/18000mm | 9000/18000mm | 10000/21000mm | 11500mm |
| Main Chassis | |||||
| Base Engine | Top brand 6UZ1 | Top brand 6WG1 | Top brand 6WG1 | Top brand 6WG1 | C18 |
| Emission Regulation | COM 3 | COM 3 | COM 3 | COM 3 | COM 3 |
| Engine Power | 257/2000kW/rpm | 300/1800kW/rpm | 300/1800kW/rpm | 377/1800kW/rpm | 470/1800kW/rpm |
| Main Winch | |||||
| Line Pull | 275kN | 360kN | 380kN | 400kN | 550kN |
| Max. Line Speed | 80m/min | 65m/min | 70m/min | 60m/min | 54m/min |
| Rope Diameter | 32mm | 36mm | 36mm | 40mm | 50mm |
| Overall Machine | |||||
| Operating Weight | 85T | 131T | 137T | 162T | 230T |
| Overall Height | 23870mm | 27105mm | 27105mm | 30730mm | 37860mm |
| Transport Height | 3685mm | 3575mm | 3575mm | 3810mm | 3640mm |
| Transport Width | 3540mm | 3530mm | 3500mm | 3600mm | 3900mm |
| Pile | |||||
| Max. Pile Depth | 73/58m | 100/65m | 106/87m | 116/95m | 150/125/100m |
| Max. Pile Diameter | 2200mm | 2500/2200mm | 2500/2200mm | 3000mm | 3500/4000mm |
| Rotary Drive | 230KN | 340KN | 350KN | 400KN | 460KN |
| Crowd Force | |||||
| Max. Output Torque | 265kN·m | 365kN·m | 400kN·m | 445kN·m | 580kN·m |
| Speed of Rotation | 5~25rpm | 5~23rpm | 5~22rpm | 4~22rpm | 6~38rpm |

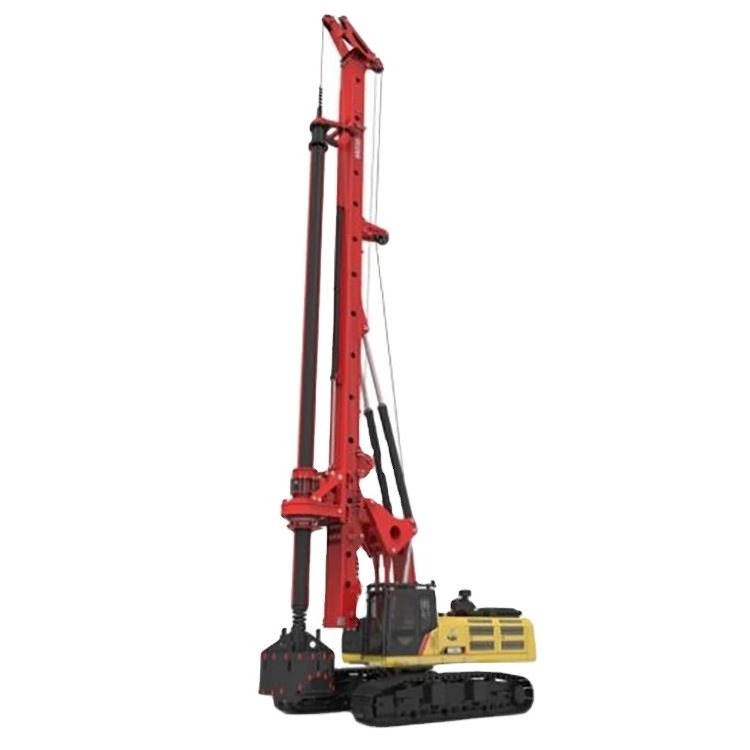

Product Picture
