Quick Details
-
Filling Accuracy:
-
>99%
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
JOYGOAL
-
Dimension(L*W*H):
-
880*760*1800
-
Weight:
-
275 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
film width:
-
100- 320 mm
-
filling volume:
-
50- 500 ml
-
Total power:
-
1.6kw
-
packing speed:
-
2200-2200 bags/h
-
air consumption:
-
1 m3/min
-
air source:
-
0.65 Mpa
-
Function:
-
automatic packing machine
-
weight:
-
275 kg
Quick Details
-
Machinery Capacity:
-
400BPH, 1000BPH
-
Packaging Material:
-
Glass, Metal, Paper, Plastic, Wood
-
Filling Material:
-
Milk, Water, Oil, Juice
-
Filling Accuracy:
-
>99%
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
JOYGOAL
-
Dimension(L*W*H):
-
880*760*1800
-
Weight:
-
275 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
film width:
-
100- 320 mm
-
filling volume:
-
50- 500 ml
-
Total power:
-
1.6kw
-
packing speed:
-
2200-2200 bags/h
-
air consumption:
-
1 m3/min
-
air source:
-
0.65 Mpa
-
Function:
-
automatic packing machine
-
weight:
-
275 kg
|

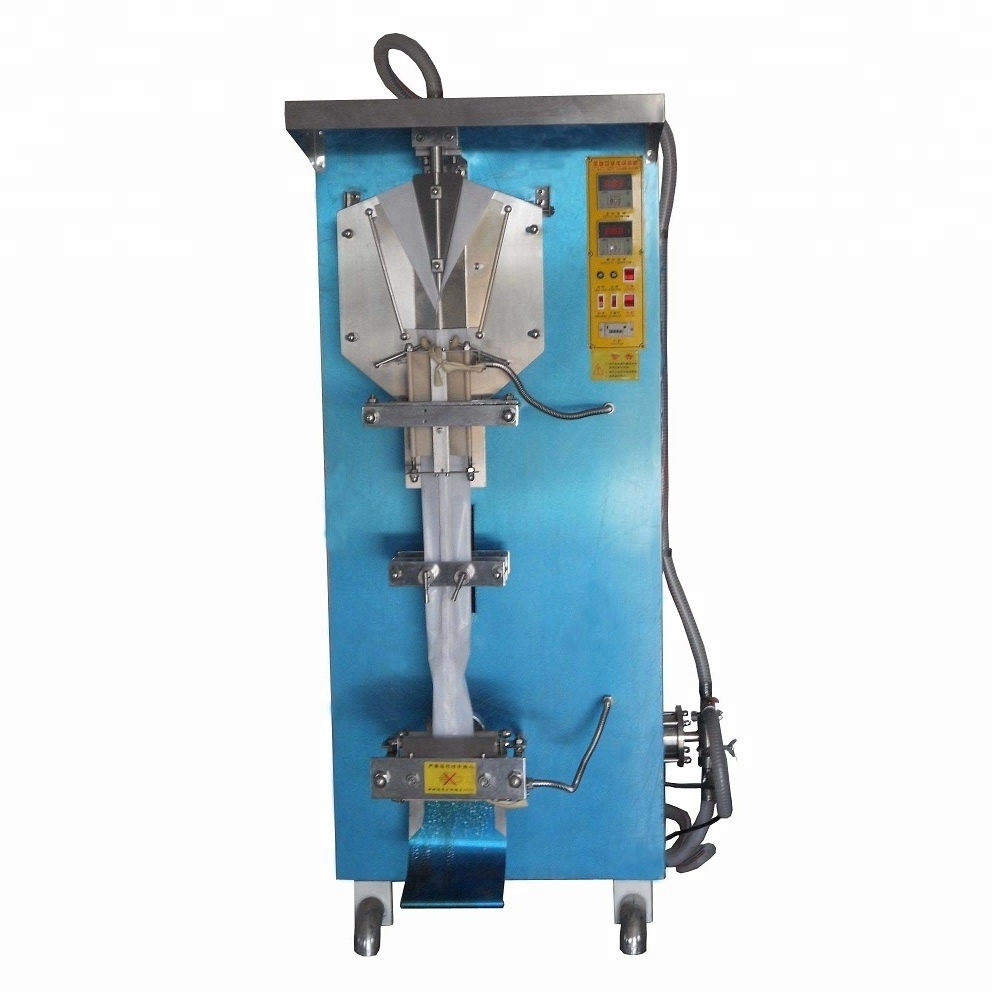

small plastic tube/ice freeze pops/ice fruit juice filling sealing machine |
Technology Parameters
| model | YT-500A | YT-1000A | YT-500B | YT-1000B | YT-2000B | YT-500C |
| production capacity | 2000-2200pouch/h | 1100-1300pouch/h | 1100-1300pouch/h | 1100-1300pouch/h | 800-1000pouch/h | 2000-2200pouch/h |
| filling volume | 50-500ml | 200-1000ml | 50-500ml | 200-1000ml | 500-2000ml | 50-500ml |
| power | 220v-380v 1.6kw | 220v-380v 2.5kw | 220v/380v 2.1kw | 220v-380v 2.5kw | 220v/380v 2.5kw | 220v/380v 1.6kw |
| film width | 100-320mm | 100-380mm | 150-320mm | 150-380mm | 150-450mm | 100-320mm |
| weight | 300kg | 400kg | 370kg | 400kg | 480kg | 300kg |
| size | 880*760*1800mm | 1050*850*2050mm | 1050*850*2050mm | 1050*850*2050mm | 1200*850*2050mm | 850*760*1800mm |
Working Process
2 4 hours online service
Enquiry will be replied in 2 hours
One year warranty
1%-2%Spare Parts
Free parts for any breakdown with convincing eviden ce
