Quick Details
-
Output Voltage (V):
-
48V
-
Output Frequency:
-
2.5m/s
-
Pre-sales project design:
-
Y
-
Product Name:
-
500w wind turbine generator system
-
Rated Voltage:
-
24V
-
Generator type:
-
3 Phase AC Permanent-magnet
-
Rated wind speed:
-
12m/s
-
Blade Material:
-
Nylon fiber
-
Blades Number:
-
3/5
-
keywords:
-
500w wind turbine generator system
-
Certificate:
-
CE System Certification
-
Keyword:
-
500w wind turbine generator system
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ESG
-
Model Number:
-
EWOF-500-M3
-
Output Voltage (V):
-
48V
-
Output Frequency:
-
2.5m/s
-
Pre-sales project design:
-
Y
-
Product Name:
-
500w wind turbine generator system
-
Rated Voltage:
-
24V
-
Generator type:
-
3 Phase AC Permanent-magnet
-
Rated wind speed:
-
12m/s
-
Blade Material:
-
Nylon fiber
-
Blades Number:
-
3/5
-
keywords:
-
500w wind turbine generator system
-
Certificate:
-
CE System Certification
-
Keyword:
-
500w wind turbine generator system
500w wind turbine generator system
500w wind turbine generator system
Product application
500w wind turbine generator system
500w wind turbine generator system
Product details
500w wind turbine generator system
500w wind turbine generator system
|

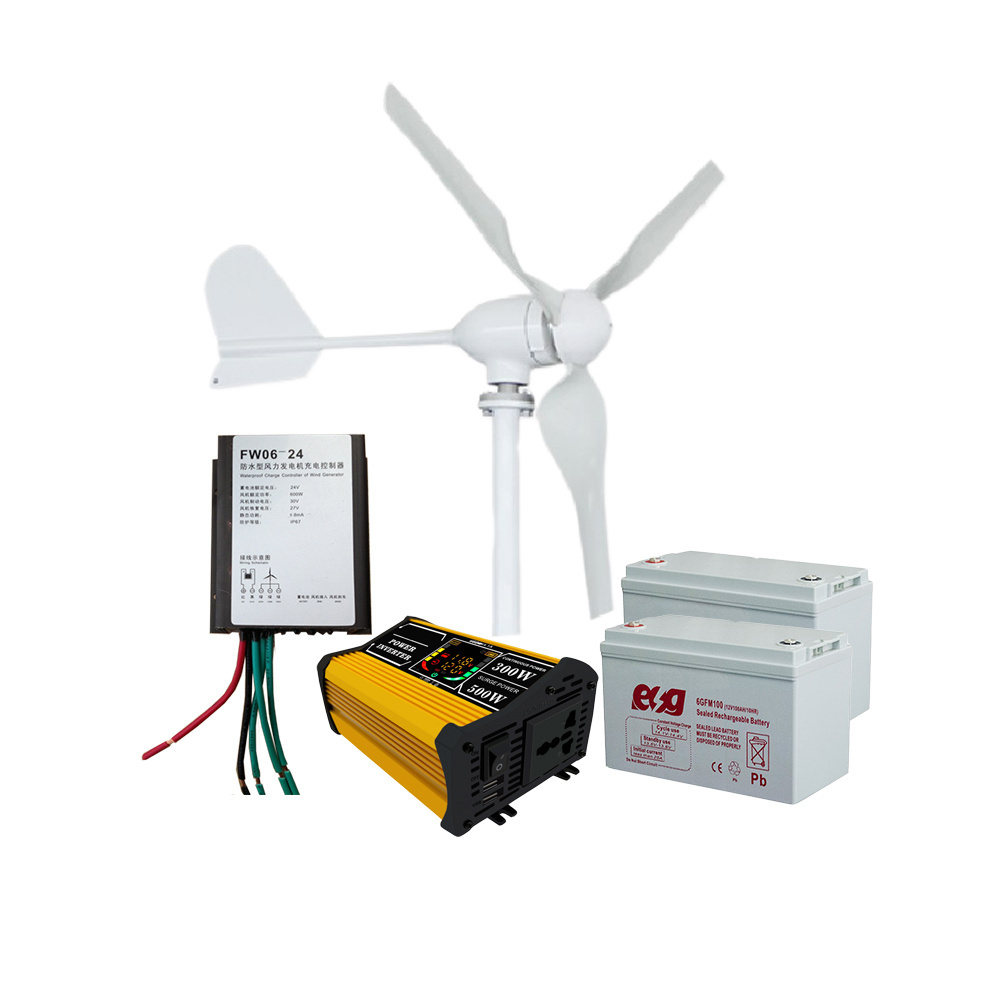

Product Fatures details (Average daily energy storage 1.5-2.5kw/h) |
||
| Item | Model | Fatures |
| 1 | Wind turbine |
1. Low start up speed; high wind energy utilization; beautiful appearance; low vibration;
2. Human friendly design, easy installation,maintenance and repair; 3. Precise injection molding blades together with the optimized design of aerodynamic contour and structure. the blades have such advantages: high utilization of wind energy which contributes to the annual energy output; |
| 2 | Wind controller | Small size, strong waterproof, and affordable |
| 3 | Inverter |
1.Increase the intelligent human-machine information exchange display. Basically, the working status and various operating parameters of the inverter can be understood intuitively in the display in real time. Wait
2, fault prompt function. In addition to different audible prompts, it is more intuitively displayed on the display. For example, battery undervoltage, battery overvoltage, excessive load, high operating temperature, output short circuit, etc. 3.The product has added the overload delay shutdown function. It solves the sensitive problem of inverter protection when the soluble appliances are started. For example, the user cannot afford a 50W LED lamp with a 300W traditional inverter or a 500W inverter The transformer cannot afford a laptop and other issues. |
| 4 | Battery(12v100Ah)*2pcs | Full capacity and full power battery, 1-3 years warranty |
500w wind turbine generator system
Technical parameter
|
Wind turbine |
Model | ES- 5 00-M | ES- 5 00- M2 | ES- 5 00- M3 |
| Picture |
|
|
||
| Rated power | 500W | 5 00W | 5 00W | |
| Maximum power | 510W | 52 0W | 51 0W | |
| Rated voltage | 24V | 24V/48V | 24V | |
| Start-up wind speed | 2.5 m/s | 2.5m/s | 2 m/s | |
| Rated wind speed | 12m/s | 11.5m/s | 11m/s | |
| Survival wind speed | 45m/s | 45m/s | 45 m/s | |
| Top net weight | 9.8kg | 15kg | 11.5kg | |
| Wheel diameter | 1.6m | 1.75m | 1.75m | |
| Number of blades | 3/5 | 3 | ||
| Blades material | Nylon fiber | |||
| Generator | Three phase permanent magnet ac synchronous generator | |||
| Magnet | NdFeB | |||
| Generator case | Nylon | Nylon | Casting aluminum alloy | |
| Control system | Electromagnet/wind wheel yaw | |||
| Speed regulation | Automatically adjust windward direction | |||
| Working temperature | -40℃-80℃ | |||
| Suggest tower height (m) | 6m(3m*2) | |||
500w wind turbine generator system
| Wind controller | Product Model | FW03-12 | FW06-24 |
| Rated Battery Voltage | 12V | 24V | |
| Rated Wind Turbine Rated Power | 300W | 600W | |
| Brake start voltage (factory value) | 15V | 30V | |
| Brake start voltage (factory value) | 13.5V | 27V | |
| Brake start current (factory value) | 30A | 30A | |
| Display Mode | LED | ||
| Quiescent Current | ≤20mA | ||
| Operating temperature and humidity range | -35~+75 ℃ | ||
|
Protection class |
IP67 | ||
|
Dimension(L*W*H) |
100*87*28mm | ||
| In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement. | |||
500w wind turbine generator system
|
Wind inverter
|
Power(W) | 600W |
| Output voltage waveform | Modified wave inverter | |
| Rated power | 500w | |
| Peak power | 1000W | |
| Input voltage | 12V/24V | |
| Input voltage range | 9.5V-15.5V | |
| The output voltage | 110V/220V | |
| Output voltage range | 110V±10%/220V±10% | |
| Frequency | 50Hz/60Hz | |
| Inverter efficiency | 90% | |
| Circuit topology | Push-free | |
| No-load current | ≤0.7A | |
| Low voltage protection | 9.5V | |
| High voltage protection | 15.5V | |
| USB interface | 2.1A*2 | |
| Input terminal wiring | Terminal | |
| Output Interface | International universal socket | |
|
Chassis color |
Yellow / black | |
|
Product Size (MM) |
192*102*78mm | |
| Protection Function | Overload protection,Output short circuit protection, Reverse polarity protection,Output regulation ect. |
500w wind turbine generator system
| Battery |
500w wind turbine generator system
| Guyed cable tower With Locking Pole |
500w wind turbine generator system
*If the standard supporting products are not enough to satisfy you, we can communicate more and choose the plan that is unique to you.
Click "Send Inquiry" to start communication!
Working principle
To convert the kinetic energy of wind into mechanical kinetic energy, and then convert the mechanical energy into electric kinetic energy, this is wind power generation. The principle of wind power generation is to use the wind to drive the blades of the windmill to rotate, and then through the booster engine to increase the speed of rotation, so as to promote the power generation of the generator. According to the windmill technology, about three meters per second of breeze speed (the degree of breeze), you can start generating electricity. Wind power is becoming a worldwide craze because it doesn't require fuel, radiation or air pollution.
500w wind turbine generator system
Product advantage
500w wind turbine generator system
Production & QC
500w wind turbine generator system
500w wind turbine generator system
500w wind turbine generator system
Certification and reporting
500w wind turbine generator system
500w wind turbine generator system
Packaging and transportation
500w wind turbine generator system
500w wind turbine generator system
Project display
500w wind turbine generator system
500w wind turbine generator system
Company profile and team
ESG New Energy Technology Co. Ltd Committed to engage in off-grid system, We are producing batteries, pure sine wave inverter,solar controller , wind and solar power generation system production, We have a production line and scientific quality management system. Development and sales of high-tech enterprises.
Our factory has 33 years history, we have 3 brand in China. ESG was established in 2013, a newest brand are specialized in solve green energy project.
high-quality, high efficiency, Adapt to market demand, the research management team,and with the domestic institutions of higher learning, scientific
research institutions to establish a broad and close relations of cooperation, thus ensuring the company sustainable development and product development of advanced technology.
ESG New Energy Technology Co. Ltd., integrity, strength and quality of products recognized by the industry.
Welcome friends to visit, guidance and business
negotiation.
500w wind turbine generator system
500w wind turbine generator system
Exhibition
500w wind turbine generator system
500w wind turbine generator system
FAQ
1. Q: Does installation Easy ?
A: Very easy, every customer can do it by themselves, we will supply all the components for installation and very details installation manual.
2. Q: Does our wind is enough for a wind generator ?
A: As our wind generator can start running at low wind speed2.5m/s. so your average annual wind speed is more than 5m/s then you can use it .
3. Q: Which model of wind generator is suitable for me?
A: Please contact our sales with following points :
1. What appliance do you want to running by the system? How many watts are they and their working time .
2. Your annual wind speed .
3. What kinds of system do you want ? On-grid or off-grid
4. Q: Can I only buy parts not whole system?
A: Yes, for example you can manufacture tower on local , we can supply you tower drawing.
5. Q: For horizontal axis wind turbines VS vertical axis wind turbines, which kind of efficiency is better.
A: For same model at same wind speed, the output of horizontal axis wind turbines is more efficient than that of vertical axis wind turbines
