Quick Details
-
Place of Origin:
-
Guangdong, China
-
Number of Cells:
-
40W*4pcs
-
Panel Dimensions:
-
1788*624*25mm
-
Panel Efficiency:
-
21.8%
-
Power(max):
-
60W
-
Vmp:
-
20V
-
Imp:
-
8.0A
-
Voc:
-
24V
-
Isc:
-
8.4A
-
Temperature:
-
-40 to+85 ℃
-
Fold dimension:
-
624*480*45mm
-
Net Weight:
-
7KG
-
Type:
-
Foldable
Quick Details
-
Power:
-
160W, 0.16
-
Brand Name:
-
Singfo Solar
-
Model Number:
-
SF3-160WCZD
-
Place of Origin:
-
Guangdong, China
-
Number of Cells:
-
40W*4pcs
-
Panel Dimensions:
-
1788*624*25mm
-
Panel Efficiency:
-
21.8%
-
Power(max):
-
60W
-
Vmp:
-
20V
-
Imp:
-
8.0A
-
Voc:
-
24V
-
Isc:
-
8.4A
-
Temperature:
-
-40 to+85 ℃
-
Fold dimension:
-
624*480*45mm
-
Net Weight:
-
7KG
-
Type:
-
Foldable
Product Description

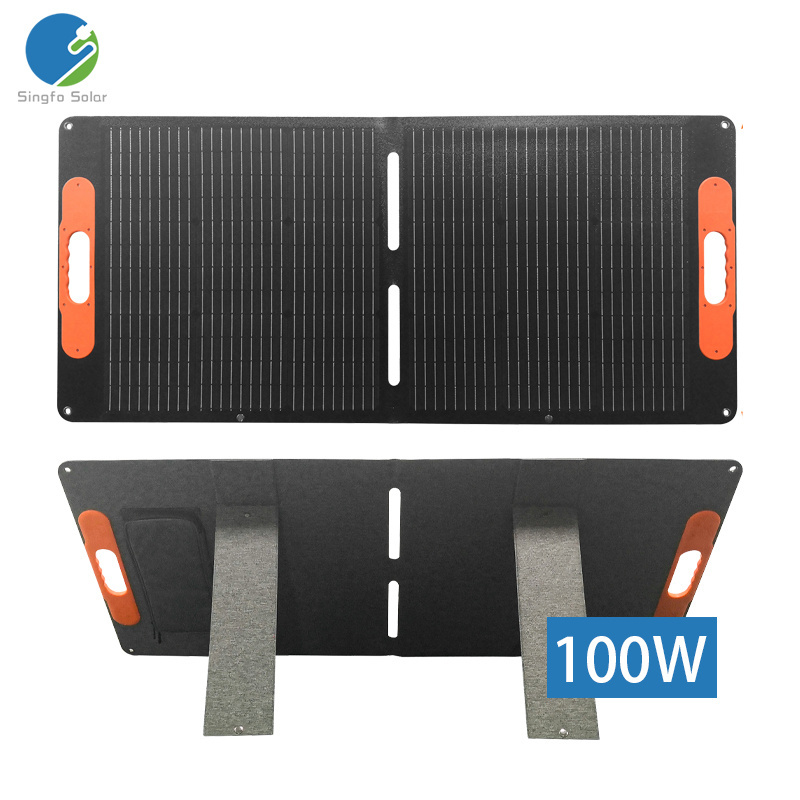

Singfo Solar Car Foldable Solar Panel Charger Solar Flexible Panels USB for Outdoor 160w 120w 100w 80w 60w
Specification
|
Electrical Parameters
|
|
|
|
|
||||
|
Model no.
|
SF3-60WCZD
|
SF3-80WCZD
|
SF3-100WCZD
|
SF3-120WCZD
|
||||
|
Maximum Power/Pmax
|
60W
|
80W
|
100W
|
120W
|
||||
|
Maximum Power Voltage(Vmp)
|
20V
|
20V
|
20V
|
20V
|
||||
|
Maxium Power Current(Imp)
|
3.0 A
|
4.0 A
|
5.0A
|
6.0 A
|
||||
|
Open-circuit Voltage(Voc)
|
24V
|
24V
|
24V
|
24V
|
||||
|
Short-circuit Current (Isc)
|
3.15A
|
4.2 A
|
5.25A
|
6.3 A
|
||||
|
Dimension （unfolded）
|
988*480*25mm
|
960*624*25mm
|
1230*560*25mm
|
1848*480*25mm
|
||||
|
Dimension （folded）
|
494*480*35mm
|
624*480*35mm
|
615*560*35mm
|
494*480*45mm
|
||||
|
Net Weight
|
2.8Kgs
|
3.5Kgs
|
4.45Kgs
|
5.4Kgs
|
||||
|
Model no.
|
SF3-160WCZD
|
SF3-200WCZD
|
SF3-300WCZD
|
SF3-400WCZD
|
|
Maximum Power/Pmax
|
160W
|
200W
|
300W
|
400W
|
|
Maximum Power Voltage(Vmp)
|
20V
|
20V/40V
|
36V
|
40V
|
|
Maxium Power Current(Imp)
|
8.0 A
|
10.0A/5.0A
|
8.33 A
|
10.0A
|
|
Open-circuit Voltage(Voc)
|
24V
|
24V/48V
|
43.2V
|
48V
|
|
Short-circuit Current (Isc)
|
8.4 A
|
10.5A/5.25A
|
8.75 A
|
10.5A
|
|
Dimension (unfolded)
|
1788*624*25mm
|
2390*564*25mm
|
2430*812*25mm
|
2370*1074*25mm
|
|
Dimension (folded)
|
624*480*45mm
|
635*564*45mm
|
812*608*45mm
|
1074*631*45mm
|
|
Net Weight
|
6.8Kgs
|
8.4Kgs
|
12Kgs
|
2.74Kgs
|
