Quick Details
-
Model Number:
-
PB-300P-24
-
Input voltage and current:
-
90 ~ 132VAC
-
output voltage and current:
-
24V
-
Maximum Output Power:
-
300W
-
Place of Origin:
-
Guangdong, China
-
Product:
-
24 Volt Charger
-
Dimension:
-
253*135*48.5mm (L*W*H)
-
Battery Type:
-
Open & Sealed Lead Acid
-
Efficiency:
-
86%
-
Warranty:
-
3 Years
-
Working Temp.:
-
-10~ +50℃
-
Shell:
-
Metal Case
-
Output Current:
-
30~100A
-
Protections:
-
Reverse polarity / Short circuit / Over voltage/Over Temperature
-
Supports Solar Energy:
-
No
Quick Details
-
Type:
-
Electric
-
Port:
-
1 x USB
-
Brand Name:
-
Meanwell
-
Model Number:
-
PB-300P-24
-
Input voltage and current:
-
90 ~ 132VAC
-
output voltage and current:
-
24V
-
Maximum Output Power:
-
300W
-
Place of Origin:
-
Guangdong, China
-
Product:
-
24 Volt Charger
-
Dimension:
-
253*135*48.5mm (L*W*H)
-
Battery Type:
-
Open & Sealed Lead Acid
-
Efficiency:
-
86%
-
Warranty:
-
3 Years
-
Working Temp.:
-
-10~ +50℃
-
Shell:
-
Metal Case
-
Output Current:
-
30~100A
-
Protections:
-
Reverse polarity / Short circuit / Over voltage/Over Temperature
-
Supports Solar Energy:
-
No

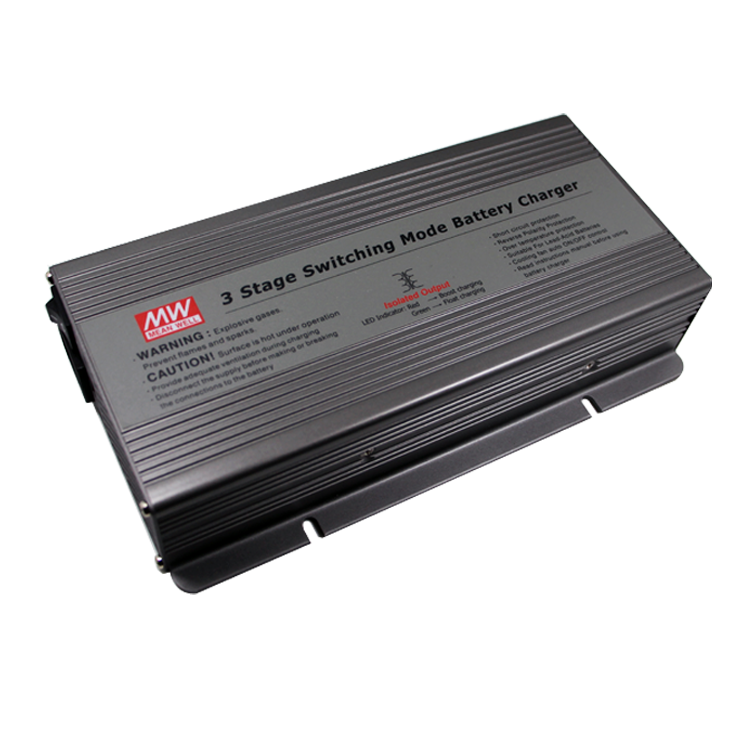

Mean Well PB-300P-24 Single Output Power Supply 300W 100Ah 24 Volt Lead-acid and Li Ion Battery Charger
Features:
- Meanwell 24 Volt Charger
- 3 stage charging
- AC 115/230VAC selected by switch
- Built-in passive PFC function compliance to EN61000-3-2 Class A (option)
- Protections: Short circuit / Reverse polarity / Over voltage / Over temperature
- Cooling by free air convection
- Charger for lead-acid batteries
- 2 color LED loading indicator
- Low cost, High reliability
- Warranty: 3 years
Model Series:
PB-300P-12 / PB-300P-24 / PB-300P-48
Details:
| MODEL | PB-300P-12 | PB-300P-24 | PB-300P-48 | |
| OUTPUT | BOOST CHARGE VOLTAGE | 14.4V | 28.8V | 57.6V |
| FLOAT CHARGE VOLTAGE | 13.6V | 27.2V | 54.4V | |
| VOLTAGE ADJUSTABLE RANGE | 13 ~ 14.4V | 26 ~ 28.8V | 52 ~ 58.6V | |
| RECOMMENDED BATTERY CAPACITY | 60 ~ 200Ah | 30 ~ 100Ah | 15 ~ 50Ah | |
| BATTERY TYPE | Open & Sealed Lead Acid | |||
| MAX.OUTPUT CURRENT | 20.85A | 10.5A | 5.3A | |
| CONTINUOUS OUTPUT CURRENT | 12.5A | 6.25A | 3.2A | |
| INPUT | VOLTAGE RANGE | 90 ~ 132VAC / 180 ~ 264VAC selected by switch | ||
| 127 ~ 187VDC / 254 ~ 370VDC | ||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR | >0.65 (with P type) at 230VAC | |||
| EFFICIENCY | 86% | 86% | 88% | |
| AC CURRENT | 6A/115VAC 3A/230VAC | |||
| INRUSH CURRENT | COLD START 60A | |||
| LEAKAGE CURRENT | <3.5mA / 240VAC | |||
| PROTECTION | SHORT CIRCUIT | O/P Built in fuse (FS100) to protect short circuit condition, shut down o/p voltage and can not repower on | ||
| REVERSE POLARITY | By internal fuse | |||
| OVER VOLTAGE | 16 ~ 18V | 31 ~ 35V | 59 ~ 64V | |
| Protection type: Shut down o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | Protection type : Automatically derate charge current until zero | |||
| FUNCTION | REMOTE CONTROL (CN5) | Open: Normal work Short: Stop Charging | ||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +50°C (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85°C , 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.05%/°C (0 ~ 45°C ) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| SAFETY &EMC | SAFETY STANDARDS | IEC60335-2-29 CB approved by TUV(except for 48V), U60950-1 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH | |||
| EMC EMISSION | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 (only P type) | |||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A | |||
| OTHERS | MTBF | 115.8Khrs min. MIL-HDBK-217F (25°C ) | ||
| DIMENSION | 253*135*48.5mm(L*W*H) | |||
| PACKING | 1.45Kg; 6pcs/9.7Kg/0.95CUFT | |||
Mechanical Specification:
