- Product Details
- {{item.text}}
Quick Details
-
Frequency:
-
30-80khz
-
Welding Area:
-
Products Size
-
Dimensions:
-
620*530*1650MM
-
Use:
-
Plastic Welding
-
Weight (KG):
-
400 KG
-
Power (kW):
-
15
-
Power:
-
15KW
-
Weight:
-
400kg
-
Function:
-
big size plastic welding
-
Product name:
-
high frequency induction heating machine
-
Working Station:
-
One Head
-
Welding Time:
-
0.01-9.99S/Time
-
Daily protection:
-
Machine Dry
-
After Warranty Service:
-
Spare parts
-
Local Service Location:
-
Turkey
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Blue machine
-
Voltage:
-
110V/220V/380V/Customize
-
Frequency:
-
30-80khz
-
Welding Area:
-
Products Size
-
Dimensions:
-
620*530*1650MM
-
Use:
-
Plastic Welding
-
Weight (KG):
-
400 KG
-
Power (kW):
-
15
-
Power:
-
15KW
-
Weight:
-
400kg
-
Function:
-
big size plastic welding
-
Product name:
-
high frequency induction heating machine
-
Working Station:
-
One Head
-
Welding Time:
-
0.01-9.99S/Time
-
Daily protection:
-
Machine Dry
-
After Warranty Service:
-
Spare parts
-
Local Service Location:
-
Turkey
high frequency induction heating machine for big size plastic welding
1. Being suitable:
for pre-heating and planting of metal fittings and plastic fittings, also induction welding;
It has adopted with various power devices, special converting control technology;
With easy operation and maintenance;
Safety, non-high pressure;
The automatic controller is able to adjust the current and time in welding phase to improve the welding quality;
Being able to remove and assemble the induction coil, easy and simple operation;
With small capacity in generator and easy to take;
2. Parameters:
|
Model |
BM-YD15 |
BM-YD25 |
|
Max. Surge Power |
15KVA |
25KVA |
|
Max. Welding Length |
950mm |
1400mm |
|
Power |
AC220V 50/60HZ 1ç |
AC380V 50/60HZ 3ç |
|
Surge Frequency |
30-80KHZ |
|
|
Heating Current |
1-99S |
|
|
Welding Time |
0.1-9.9 Sec |
|
|
Heat Preservation Time |
1-99S |
|
|
Cooling System |
Water cooling »0.2Mpa 2-5L/min |
|
|
Net Weight |
175KG |
180KG |

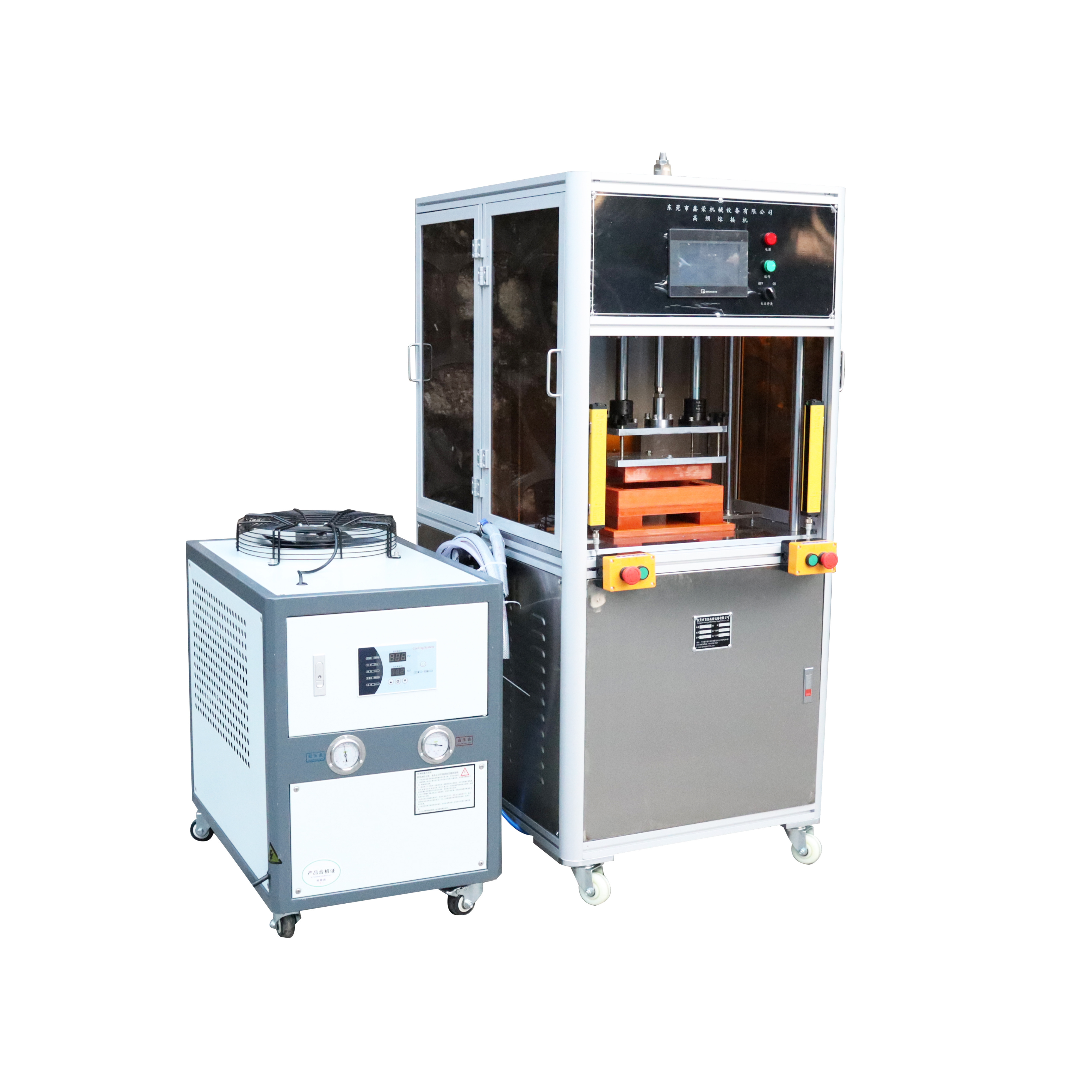

3. Machine and samples pictures:
The main products are: Automatic disposable blood bags equipment line;automatic disposable urine bag equipment line; automatic disposable liquid medical bag equipment line; Disposable syringe automation assembly line and other kinds of medical equipment; as well as automatic high frequency tent welding machine, high frequency inflatable produces wedling machine, high frequency canvas/tent/tarpaulin welding machine; automatic ultrasonic welding machines and other related equipment.
