Cheap price pet food machine/pet dog food process machine/pet food pellet make machine

Cheap price pet food machine/pet dog food process machine/pet food pellet make machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $1920

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: 7.5KW

Weight:: 380 KG

Dimension(L*W*H):: 1250*900*1500

Name:: Pet food extruder machine

Machine material:: Carbon steel & Stainless Steel

Raw material:: Grain powder ,fresh meat, egg, etc

Feed type:: Pet(dog,cat), floating fish feed

Capacity:: 80-100kg/h

Moisture:: 20%-25%

Pellet diameter:: 1.5-12mm

Screw diameter:: 40mm, 60mm, 70mm, 80mm, 90mm,etc.

Package:: Wooden Case

Quick Details

Place of Origin:: Henan, China

Brand Name:: fusion

Voltage:: 220V/380v

Power:: 7.5KW

Weight:: 380 KG

Dimension(L*W*H):: 1250*900*1500

Name:: Pet food extruder machine

Machine material:: Carbon steel & Stainless Steel

Raw material:: Grain powder ,fresh meat, egg, etc

Feed type:: Pet(dog,cat), floating fish feed

Capacity:: 80-100kg/h

Moisture:: 20%-25%

Pellet diameter:: 1.5-12mm

Screw diameter:: 40mm, 60mm, 70mm, 80mm, 90mm,etc.

Package:: Wooden Case

^{Cheap price pet food machine/pet dog food process machine/pet food pellet make machine}

Product Description

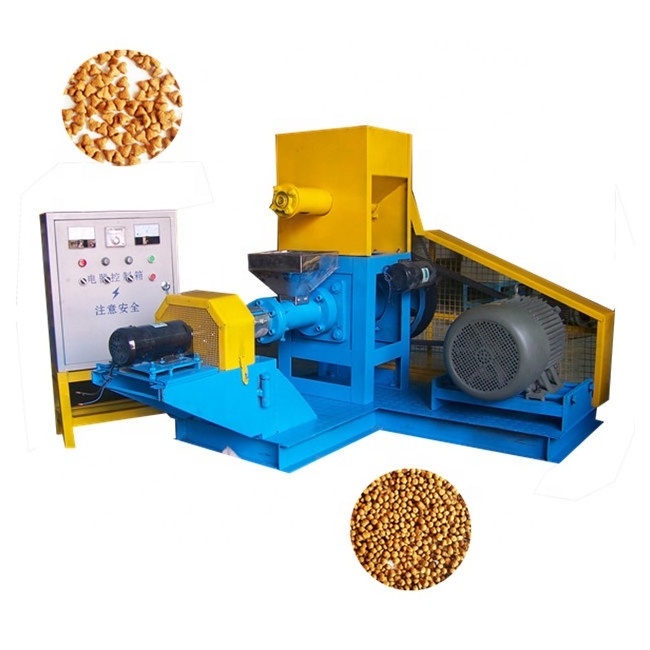

1. Brief introduction of the pet feed extruder machine :

Feed extruder is a single screw extruding equipment, which is mainly used to extrude feed of various kinds of livestock, pets and aquatic products. It can be used to extrude single raw material .

There are 2 types feed extruder machine : One is DGP series (dry type ), another is DSP series (wet type ).

For DGP series , there are also 2 types for you . One is Carbon steel type , another is Stainless steel type .

2. Technical parameters :

(1). DGP series (dry type)

Model	Capacity	Main power	Feeding power	Screw diameter	Cutting power
DGP40-C	0.03-0.04 t/h	5.5 kw	0.4 kw	Φ40 mm	0.4 kw
DGP50-C	0.06-0.08 t/h	11 kw	0.4 kw	Φ50 mm	0.4 kw
DGP60-C	0.12-0.15 t/h	15 kw	0.4 kw	φ60 mm	0.4 kw
DGP70-B	0.18-0.2 t/h	18.5 kw	0.4 kw	φ70 mm	0.4 kw
DGP80-B	0.2-0.25 t/h	22 kw	0.4 kw	φ80 mm	0.6 kw
DGP90-B	0.30-0.35 t/h	37 kw	0.6 kw	φ90 mm	0.8
DGP120-B	0.5-0.6 t/h	55 kw	1.1 kw	φ120 mm	2.2 kw
DGP135-B	0.7-0.8 t/h	75 kw	1.1 kw	φ133 mm	2.2 kw
DGP160-B	1-1.2 t/h	90 kw	1.5 kw	φ155 mm	3.0 kw
DGP200-B	1.8-2.0 t/h	132 kw	1.5 kw	φ195 mm	3.0-4.0 kw

(2). DSP series (wet type)

Model	Capacity	Main power	Feeding power	Screw diameter	Cutting power	Condition power
DSP60-B	0.18-0.2t/h	15 kw	0.4 kw	Φ60 mm	0.4 kw	0.75 kw
DSP70-B	0.25-0.30 t/h	18.5 kw	0.6 kw	Φ70 mm	0.6 kw	0.75 kw
DSP80-B	0.35-0.40 t/h	22 kw	1.1 kw	Φ80 mm	0.8 kw	1.1-1.5 kw
DSP90-B	0.50-0.60 t/h	37 kw	1.1 kw	Φ90 mm	1.1 kw	2.2 kw
DSP120-B	0.70-0.80 t/h	55 kw	1.1 kw	Φ120 mm	1.5 kw	2.2-3.0 kw
DSP135-B	1.0-1.2 t/h	75 kw	1.5 kw	Φ135 mm	2.2 kw	3.0-4.0 kw
DSP160-B	1.8-2.0 t/h	90 kw	2.2 kw	Φ155 mm	2.2-3.0 kw	4.0-5.5 kw
DSP200-B	3.0-4.0 t/h	132	2.2 kw	Φ195 mm	3.0-4.0 kw	5.5 kw

3. Application scope:

Raw material : Various grains such as corn , bean,etc. You can also mix some nutrition such as the fresh meat , egg, etc.

Feed type : The extruder can be used to produce the floating fish feed, dog feed, cat feed, etc.

4. Mould :

You can choose the mould according to your need :

5. Spare parts : Screw, Mould, blade, sleeve

Note : we also can custmize the whole production line according to your requirement :

The line can be : Mixer machine →Screw conveyor→Extruder machine → Dryer →Flavoring machine →Package machine

Packaging & Shipping

1. Packing: PP film wrapped around the machine and carefully packed in wooden case to focus on protecting damageable parts.

2. Shipping: From port of Shenzhen, Shanghai, Qingdao, Guangzhou,etc. We also accept land, air, sea transport and international multimodal transport.

3. Clearance: Our long history makes us the one of the first and most knowledgeable providers of the equipment, our main customers hail from; Canada, the United States, Brazil, Argentina, Japan, Philippines, Australia, Russia, Thailand, the UAE, Poland, Spain, Germany, India, etc.
