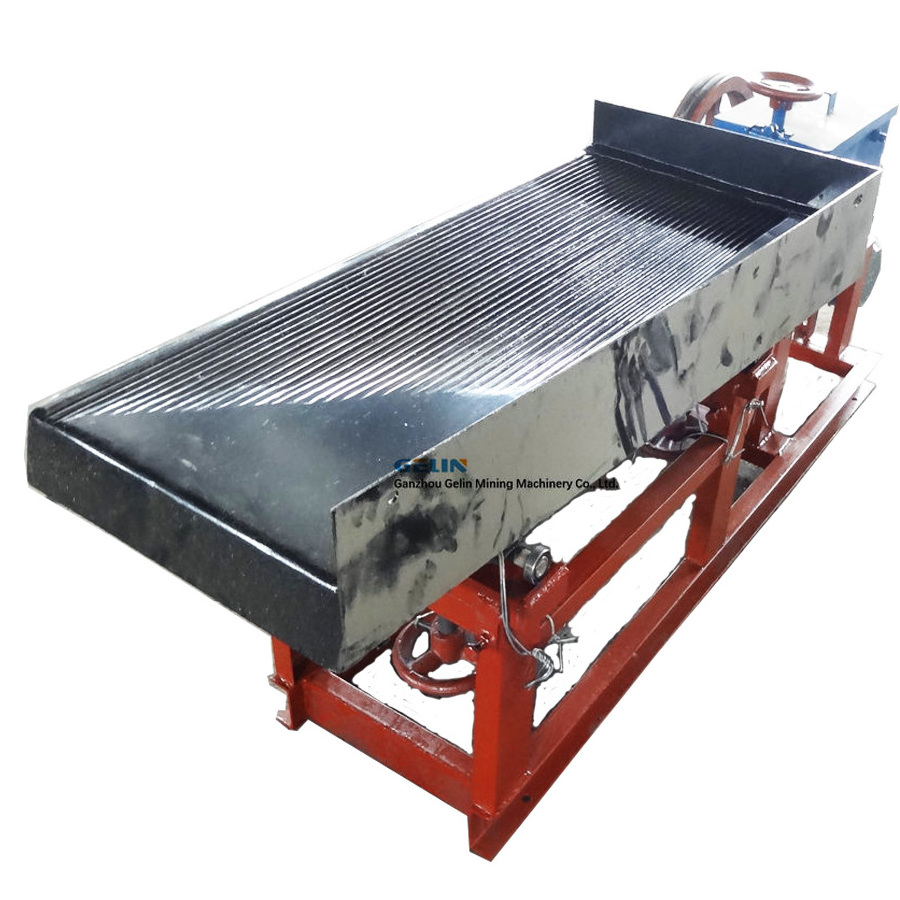

Mini laboratory concentrating shaker table for gold concentration

Mini laboratory concentrating shaker table for gold concentration

FOB Reference Price: Get Latest Price

≥1 Sets

US $600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: Clients Local Standard

Dimension(L*W*H):: see specifications

Weight:: 300 KG

Warranty:: 2 Years

Marketing Type:: NEW

Core Components:: main parts of machine

Name:: lab shaking table

Application:: for lab testing, used for gold, tin, sand mineral

After-sales Service Provided:: Video technical support , field installtion and conmissioning

Certification:: ISO,CE

Quick Details

Production Capacity:: High

Place of Origin:: Jiangxi, China

Brand Name:: Gelin

Voltage:: Clients Local Standard

Dimension(L*W*H):: see specifications

Weight:: 300 KG

Warranty:: 2 Years

Marketing Type:: NEW

Core Components:: main parts of machine

Name:: lab shaking table

Application:: for lab testing, used for gold, tin, sand mineral

After-sales Service Provided:: Video technical support , field installtion and conmissioning

Certification:: ISO,CE

Products Description

Mini laboratory concentrating shaker table for gold concentration

The mineral processing shaking table is a type of gravity separation machine employed for the separation with the fine materials.It could continuously sort concentrate ore, second-grade ore and tailings. It is applied in roughing, cleaning and scavenging for dressing coarse sand(2-0.5mm), fine sand(0.5-0.074mm), pulp(0.074mm).

Gelin provides different capacities shaking tables as below:

Small type 6S-0.5 for lab test

6S-1.95

6S-4.08

6s-7.6

Features&Advantages

1. The large range of transverse slope adjustment(0 -10°) and adjustable stroke available (be stably operation when change them).

2. The deck surface is smooth with good corrosion resistance, strong and durable, not easy to deform, and is convenient for local repair.

3. With feeding chute and collection chute,deck with emery and fiberglass steel.

4. The head of the deck is reliable with less wear parts and no oil-leakage.

5. Without reagents consumption, little electricity consumption.

Product Application

- One of essential machine of gold mining plant for alluvial gold, placer, gold sand;

- Widely used to separate gold, tin, tungsten, chromite, silver, diamond, zircon, cobalt, tantalum-niobium, lead, zinc, copper, antimony, other rare metal and noble metal ores.

More Details

1. Feeding Mouth	9.Horizonal Support
2.Stroke Adjusting Device	10.Adjusting Wheel
3. Feeding Chute	11.Deck Support
4.Water Feeding	12.Knife-Type Support
5.Water Feeding Chute	13.Stand
6.Deck Surface	14.Shaking Table Head
7.Concentrates Discharge Area	15.Motor Support
8.Tailings Discharge Area	16.Swing Adjusting Device

Sturdy and durable frame for shaking table

different height is customizable to collect the minerals more easily.

Steel or PP material feeding chute and collection chute

it replaces old type wood material,so it's waterproof and more convenient to collect minerals and long service life.

Table/Deck for shaking table

The deck is made of steel framework and covered 16mm fibreglass with corundum, this cover reaches as high as 70% of steel, which is stronger, wear-resistant, corrosion-resistant, and no distortion, providing long working life on different mineral and different weather condition.

Different decks for different mineral sizes features fine separation effect and high recovery:

46/60 riffles belong to coarse sand deck,used for separating 0.5--2mm;
88/120 riffles belong to fine sand deck, used for separating 0.074--0.5mm;
138 riffles belong to slurry deck,used for separating ≤0.074mm.

Transmission box

Furnished with a totally enclosed self-oiling head motion of heavy cast iron to contain an oil reservoir for perfect splash lubrication. This feature protects the moving parts, reducing operating and maintenance cost to a minimum.

Transmission box and electric motor

With high quality motor also it can be customized as required

Product Parameter

Model			6s -7.6			6s- 7.6	6s- 7.6	6s- 4.08	6s- 1.95	6s- 0.5
Deck Type			Coarse Ore Deck	Fine Sand Deck	Slurry/Slime Deck	Three Deck Types Available
Beneficiation Area ㎡			7.6	7.6	7.6	4.08	1.95	0.5
Deck Size(mm)	Length (mm)	4450	4450	4450	3000	2100	1100
		transmission end width (mm)	1855	1855	1855	1320	1050	500
		Concentrate end width (mm)	1546	1546	1546	1100	850	430
Maximum Feeding Size (mm)			2	0.5	0.15	Sand--2 Slime--0.1	Sand--2 Slime--0.074	Sand--2 Slime--0.074
Feeding Capacity (ton/hour)			0.8-1.5	0.8-1.5	0.8-1.5	0.4-1.5	0.3-0.8	0.05-0.2
Feeding Density (%)			25-30	20-25	15-25	10-30
Stroke (mm)			16-22	11-16	8-16	6-30	12-28	9-17
Frequency (t/s)			45-48	18-53	50-57	210-320	250-450	280-460
Water added (t/h)			1-3	1-3	1-3	0.4-2	0.2-1	0.1-0.5
Transverse Slope of Deck (°)			2.3°-4. 3°	1.3°-3.3°	1° -2°	0 -10°	0 -8°	0 -10°
Longitudinal Slope of Deck (°)			1.4	0.92	/	/	/	/
Cross-Section Shape of Deck			rectangle	Saw-Tooth/Indention	Triangle	Rectangle, Saw Tooth, Triangle Available
Motor Power (KW)			1.1	1.1	1.1	1.1	1.1	0.55
Transimission Mechanism			Eccentric Linkage Type
Remark: The tables have three distinct deck designs available. - The coarse ore deck is designed for recovering particles size from 0.5mm to 2mm; - The fine sand deck is designed for recovering fine particles in the range of 0.074mm to 0.5mm; - The slime deck is designed for recovering super extremely fine particles in the range of 0.15mm to 0.074mm.

Packing & Delivery

Packing Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: 1. Nude packing. 2. Bundle packing. 3. Grass rope packing. 4. Water proof packing. 5. Wooden pallets packing. 6. Wooden box or carton box packing.

Delivery Usually the equipments are delivered aboard by tracks,trains,or container(sea transportation). and some spare parts or very small goods also support to send by express , our company have built good relationships with large cargo agent and shipping companies which guarantee our products delivered safely and promptly.Sea transportation includes three delivery ways as below: 1. 40HQ container : used for goods without overlength, overheight and overweight; 2. FR(Flat Rack) container :suitable for large equipments with overlength,overheight like ball mill,excavator,etc. 3. Bulk cargo shipment (LCL) : used for some goods without loading in full container,normally it requires good packing with marks for safety and easy to be trackable.

About Company

Ganzhou Gelin Mining Machinery Co., Ltd is an over 30 years professional manufacturer and exporter of mining machinery for crushing, screening, grinding, flotation, separation etc. in China. Gelin have a complete service system which can provide customer full service in mining field and after sales service.By now, Gelin’s equipments and services are exported to over 60 countries,include America, Russia, India, Africa, Brazil, Chile,South Africa,Zambia etc.

Sincerely welcome customers to visit our factory.

One Stop solution for beneficiation plant service: 1.Engineering consulting available,it makes clients have a comprehensive understanding of beneficiation plant,including mine value,useful elements,mineral processing technology,plant scale,essential equipments,etc.

2.Arrange mineral beneficiation experiment after received the material sample and beneficiation test report will be done after test.

3.After reaching agreement with client,we start to engineering design,including planning,investigation,data collection, project evaluation etc. and then comes up with design scheme of beneficiation plant construction and working drawings.

4.Manufacturing the necessary equipments and arrange the shipment.

5.Complete services for Installation and commissioning and technical training(operating training,common problem solving training).

After-sale Service

Regularly visit customers to provide after- sale technical supports and to solve problems of beneficiation plant. For equipments supplied,we could provide one-year warranty and provide spare parts with preferential price in the long term and be responsible for any problems with the them.

FAQ

Q: Are you a trading company or a factory? A: We are a factory at Shicheng county with 110 workers,6 workshops covered 17,000㎡ and office covered 2,500㎡. Welcome to visit our factory at anytime.

Q: What is your payment terms?
A: By TT( Telegraphic Transfer ) , 100% or 40% Deposit before production and 60% balance payment will be paid off after sending product pictures and before loading from factory.

Q: How long is the guarantee period of your products?

A: The guarantee period is 1-2 years, pls ask staff for more details. And we will supply lifelong technical support service and the spare parts at lowest cost.

Q: Is it possible to produce customized products ?
A: Yes, most of our products are produced as required.

Q: Is it possible to provide sample for your factory to do ore-dressing experiment?
A: Yes, engineering consulting is available and we’d like to arrange mineral beneficiation experiment after received your sample and provide the test report.
