- Product Details
- {{item.text}}
Quick Details
-
WIFI:
-
NO
-
Network:
-
No
-
Customized support:
-
Accept
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
J&H
-
Model Number:
-
JHG200/JHM200 JHG400/JHM400
-
Certification:
-
none
Quick Details
-
Rated Voltage:
-
600V
-
Rated Current:
-
200A/400A
-
Application:
-
Industrial
-
WIFI:
-
NO
-
Network:
-
No
-
Customized support:
-
Accept
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
J&H
-
Model Number:
-
JHG200/JHM200 JHG400/JHM400
-
Certification:
-
none

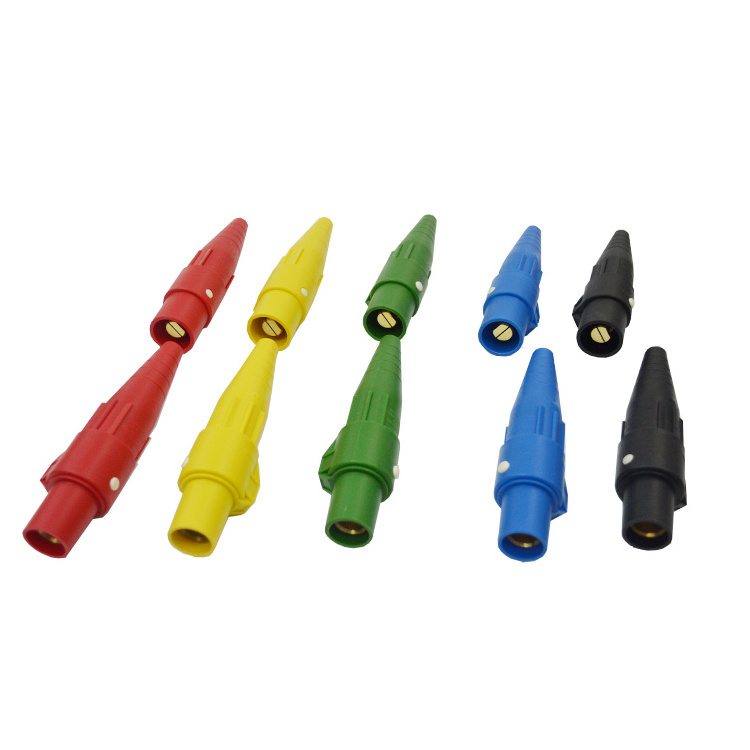

International standard cam-lock plug and connector 200A 400A 600V pure cooper male and female
Product Description
| Product name | Commerical / Industrial / Entertainment using power supply connector Power plug |
| Product type | plug&connector |
| Rated Current | 200A /400A cam-lock |
| Available cable | 200A 16~35mm² |
| 400A 50~120 mm² | |
| Rated Voltage | 600V / Three-phase |
| Features | Single pin made by pure copper materials |
All Range Products
|
Male Inline Cam-lock |
Female Inline Cam-lock |
||
| Model No. | Specification | Model No. | Specification |
| JHG200-R | 200A 600V RED | JHM200-R | 200A 600V RED |
| JHG200-Y | 200A 600V YELLOW | JHM200-Y | 200A 600V YELLOW |
| JHG200-L | 200A 600V BLUE | JHM200-L | 200A 600V BLUE |
| JHG200-G | 200A 600V GREEN | JHM200-G | 200A 600V GREEN |
| JHG200-B | 200A 600V BLACK | JHM200-B | 200A 600V BLACK |
| JHG400-R | 400A 600V RED | JHM400-R | 400A 600V RED |
| JHG400-Y | 400A 600V YELLOW | JHM400-Y | 400A 600V YELLOW |
| JHG400-L | 400A 600V BLUE | JHM400-L | 400A 600V BLUE |
| JHG400-G | 400A 600V GREEN | JHM400-G | 400A 600V GREEN |
| JHG400-B | 400A 600V BLACK | JHM400-B | 400A 600V BLACK |
Drawing
