Quick Details
-
Warranty:
-
1 years
-
Brand Name:
-
ZRFX
-
Model Number:
-
2BV-2061
-
Place of Origin:
-
China
-
Horsepower:
-
1.97HP
-
Power:
-
1.45KW
-
Product name:
-
Vacuum pump
-
Material:
-
Cast Iron
-
Motor:
-
100% Copper Wire
-
MOQ:
-
1 Set
-
Frequency:
-
50 Hz
-
Weight:
-
65KG
-
Speed:
-
2880r/min
-
Impeller:
-
Iron impeller
-
Ultimate vacuum pressure:
-
-0.097Mpa
-
Feature:
-
High cleanliness
Quick Details
-
Application:
-
Other, Commercial Buildings, Industrial Utilities, Pharmaceutical industry
-
Pressure:
-
Other
-
Voltage:
-
380V
-
Warranty:
-
1 years
-
Brand Name:
-
ZRFX
-
Model Number:
-
2BV-2061
-
Place of Origin:
-
China
-
Horsepower:
-
1.97HP
-
Power:
-
1.45KW
-
Product name:
-
Vacuum pump
-
Material:
-
Cast Iron
-
Motor:
-
100% Copper Wire
-
MOQ:
-
1 Set
-
Frequency:
-
50 Hz
-
Weight:
-
65KG
-
Speed:
-
2880r/min
-
Impeller:
-
Iron impeller
-
Ultimate vacuum pressure:
-
-0.097Mpa
-
Feature:
-
High cleanliness

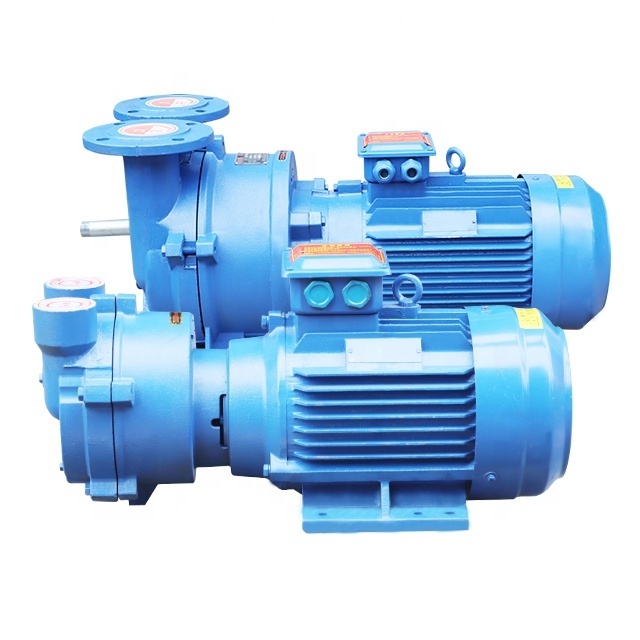

1、 Product overview
As a new generation product, 2BV water ring vacuum pump will replace SK, 2SK series water ring vacuum pump and W, WY, WL series reciprocating vacuum pump with excellent performance and many advantages.
2、 Product features
The mechanical seal of 2BV water ring vacuum pump is imported, and the seal can be made of fluororubber or polytetrafluoroethylene
Compared with the same type of domestic SK, 2SK, SZ Water ring vacuum pump, it has the following characteristics:
·2BV water ring vacuum pump is designed with coaxial direct connection, which saves space and is easy to install.
·2BV water ring vacuum pump adopts imported mechanical seal as standard configuration.
·2BV water ring vacuum pump is equipped with cavitation protection pipe interface. If it works under pressure, opening the cavitation protection pipe interface (or connecting with the separator) can eliminate the cavitation sound under the condition of limited suction effect and protect the pump.
·Aluminum bronze impeller has high strength and durability, and enhances the corrosion resistance of 2BV water ring vacuum pump. If the flow passage parts are made of stainless steel, they can work in more severe environment.
·Flexible exhaust port design, no over compression, 2BV water ring vacuum pump in its performance range of high efficiency.
·Y2 series motor with protection grade of IP54 and IP55 (common IP44)
·2BV water ring vacuum pump adopts NTN or NSK imported bearing
3、 Scope of application
2BV water ring vacuum pump is suitable for removing gas and steam. The suction pressure can reach 33 mbar (97% vacuum degree). When transformer oil is used as working fluid (called oil ring vacuum pump), the suction pressure can reach 6.7mbar (99.3% vacuum degree), which can completely replace the reciprocating vacuum pump. When the liquid ring vacuum pump works for a long time under the suction pressure close to the vacuum, the cavitation protection pipe should be connected to protect the pump and eliminate the cavitation sound. When used as a compressor, the pressure is up to 0.26mpa. When used as a compressor, the power of 2BV pump will be caused by the increase of discharge pressure. When ordering, the discharge pressure should be indicated to select the appropriate motor power.
2bv2 ex and 2bv6 series water ring vacuum pumps / compressors are mainly used to remove gas and work in various flammable and explosive environments. Their performance parameters are the same as those of 2bv2 and 2bv5 series.
2BV series stainless steel vacuum pump can be used in various occasions with high corrosion resistance and cleanliness requirements. According to the working conditions, the flow passage parts of 2BV series stainless steel vacuum pump: pump body, pump cover, disc and impeller can be made of SUS304 (0Cr18Ni9), SUS316 (0Cr17Ni12Mo2) and SUS316L (00Cr17Ni14Mo2), and the material of pump shaft is 2Cr13 or 0Cr18Ni12Mo2Ti
|
Who is the trouble of 2BV vacuum pump
|
Who is 2BV vacuum pump or the possible cause of failure
|
Who is 2BV or vacuum pump to eliminate the reason
|
|
The motor does not start and there is no sound
|
|
|
|
The motor does not start, there is a buzzing sound
|
1.One wiring is broken and the motor rotor is locked.
2. Impeller failure.
3.Motor bearing failure
|
1.Drain clean pump if necessary and correct impeller clearance.
2.Change impeller.
3.Replace the bearing
|
|
When the motor starts, the current circuit breaker trips
|
1. The winding is short circuited.
2. Motor overload.
3. The exhaust pressure is too high.
4. Too much working fluid
|
1. Check the motor winding.
2. Reduce the flow rate of working fluid.
3. Reduce the exhaust pressure.
4. Reduce the working fluid
|
|
Excessive power consumption
|
Precipitation is produced
|
Clean and remove sediment
|
|
|
1. No working fluid
2. Serious system leakage
3. The rotation direction is wrong
|
1 check the working fluid
2. Repair the leak
3. Change two wires to change the direction of rotation
|
|
|
1. The pump is too small
2. The flow rate of working fluid is too small 3. The working fluid temperature is too high (less than 15
℃)
4. Corrosion 5. Slight system leakage 6. Seal leakage
|
1. Use a larger pump
2. Increase the flow rate of working fluid
3. Cool the working fluid and increase the flow rate
4. Replace parts
5. Repair the leak 6. Check the seal
|
|
|
1. Cavitation
2. The flow rate of working fluid is too high
|
1. Connect the gas shield
2. Check the working fluid and reduce the flow rate
|
|
leakage
|
The sealing gasket is damaged
|
Check all sealing surfaces
|
