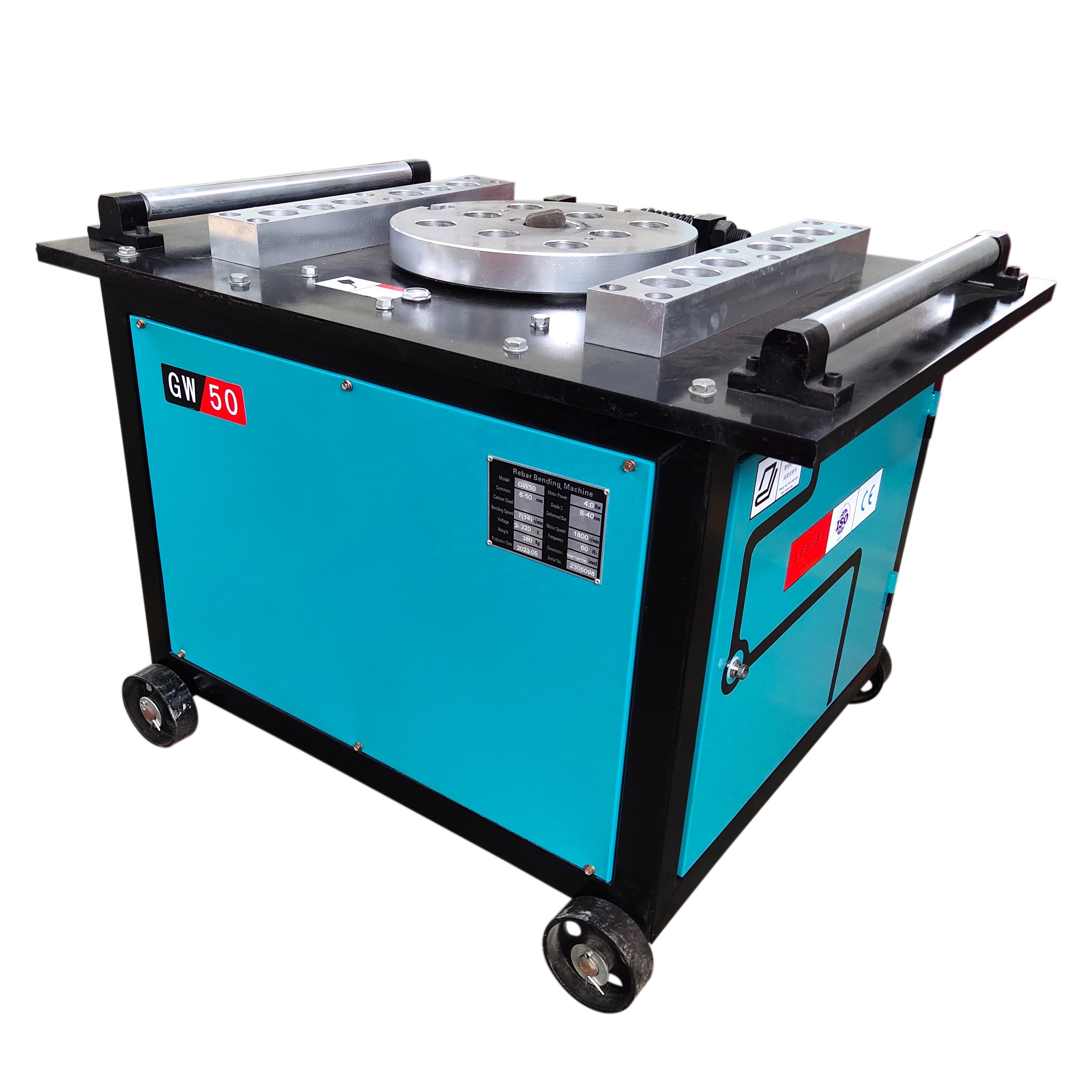

GW40/50 Rebar bending machine can bend common carbon steel bar and deformed steel bar to any required shape. It is widely in construction works such as construction site, railway, highway,mine, reservoir, port and wharf,etc.
- Product Details
- {{item.text}}
Quick Details
-
Year:
-
2022
-
Weight (KG):
-
350
-
Motor Power (kW):
-
3
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
BDJD
-
Marketing Type:
-
Hot Product
-
Year:
-
2022
-
Weight (KG):
-
350
-
Motor Power (kW):
-
3
Product Description
Features
1. Advanced design, simple operation, safe and reliable.
2.Low labor intensity, high working efficiency.
3.One-time programming it can bend 1-10 angles, also can automatically switch all angles set by the program.
4.The angle can be adjusted discretionary(1-350°), the angle is accurate, and the tolerance is less than ±1°.
5. Single foot pedal control, only one button operation, convenient operation, save time and labor.
6.The starting point control accuracy, and the large spring reset tolerance is less than ±0.5°
2.Low labor intensity, high working efficiency.
3.One-time programming it can bend 1-10 angles, also can automatically switch all angles set by the program.
4.The angle can be adjusted discretionary(1-350°), the angle is accurate, and the tolerance is less than ±1°.
5. Single foot pedal control, only one button operation, convenient operation, save time and labor.
6.The starting point control accuracy, and the large spring reset tolerance is less than ±0.5°
Specification
|
Model
|
GW40
|
GW50
|
|
Voltage
|
3-380V 50HZ
|
3-380V 50HZ
|
|
Motor Power
|
3.0KW
|
4.0KW
|
|
Motor Speed
|
1440r/min
|
1440r/min
|
|
Bending Range
|
Common Carbon Steel 6-40mm
|
Common Carbon Steel 6-50mm
|
|
|
Grade III Deformed Bar 5-32mm
|
Grade III Deformed Bar 5-40mm
|
|
Working Disc Diameter
|
350mm
|
400mm
|
|
Spindle Speed
|
7r(14r)/min
|
7r(14r)/min
|
|
Weight
|
350kg±5kg
|
380kg±5kg
|
|
Dimension
|
930*730*730mm
|
1040*750*730mm
|
Product Details
Numerical Control Panel
Simple operation,easy to adjust bending angles,
fast speed and high precision
fast speed and high precision
Solid Working Disc
Strong and durable, high working efficiency.
Foot Pedal
Sensitive operation, automatic return, quick return trip
Copper Wire Motor
Full of power and big force, easy to bend steel bar. Stable performance and long service life.
Workshop
Product Show
Customization Accepted
Machine color can be changed according to customers' preference, machine voltage also accept customization to meet the industrial voltage requirements from different countries.
