Quick Details
-
Rated Input Voltage:
-
380 V
-
Rated Output Voltage (TIG):
-
22 V
-
Welding Current/Voltage Range:
-
10-315 A
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YOMI
-
Pulse Frequency:
-
0.5-100Hz
-
Dimensions:
-
520*275*450mm
-
Usage:
-
Professional Aluminum welding
-
Weight (KG):
-
21.6 KG
-
Clean Width:
-
25%-75%
-
Rated Iutput Power:
-
12kw
-
No-load Voltage:
-
70V
-
Up-Slope Time:
-
0.1-5s
-
Down-Slope Time:
-
0.1-5s
-
Pulse Width Ratio:
-
0.2-0.8
-
Degrees of enclosure protection:
-
1P21S
-
Efficiency:
-
83%
-
OEM:
-
Yes
-
Color:
-
Gray, Red, customized
Quick Details
-
Max. Load Power Capacity:
-
8.5KVA
-
Output Polarity:
-
AC/DC TIG
-
Rated Duty Cycle @40°C (TIG):
-
60%
-
Rated Input Voltage:
-
380 V
-
Rated Output Voltage (TIG):
-
22 V
-
Welding Current/Voltage Range:
-
10-315 A
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YOMI
-
Pulse Frequency:
-
0.5-100Hz
-
Dimensions:
-
520*275*450mm
-
Usage:
-
Professional Aluminum welding
-
Weight (KG):
-
21.6 KG
-
Clean Width:
-
25%-75%
-
Rated Iutput Power:
-
12kw
-
No-load Voltage:
-
70V
-
Up-Slope Time:
-
0.1-5s
-
Down-Slope Time:
-
0.1-5s
-
Pulse Width Ratio:
-
0.2-0.8
-
Degrees of enclosure protection:
-
1P21S
-
Efficiency:
-
83%
-
OEM:
-
Yes
-
Color:
-
Gray, Red, customized
Product Description

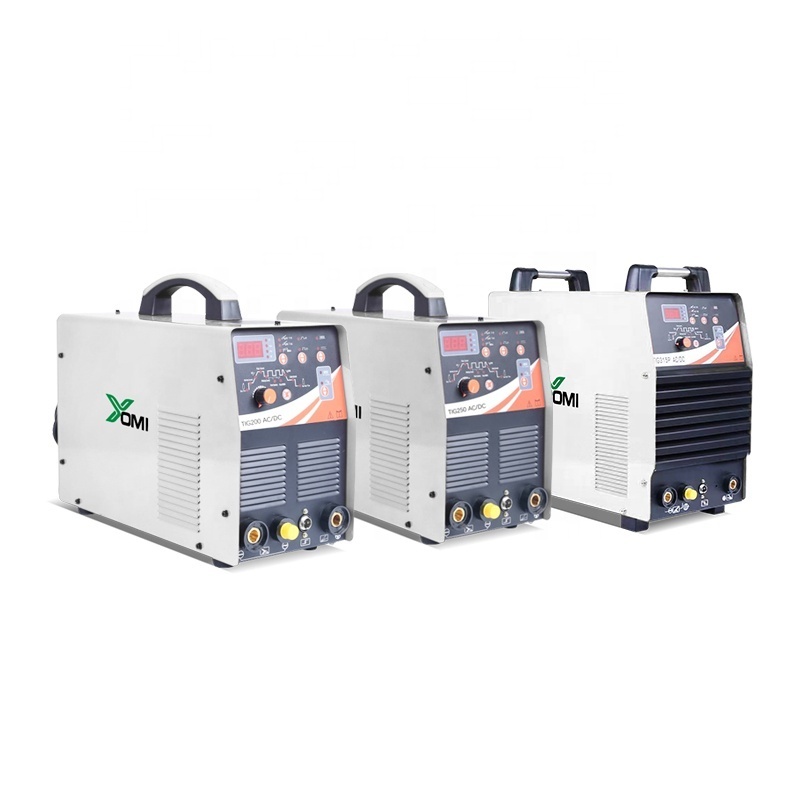

AC frequency adjustable, very good machine to weld nonferrous metal.
High frequency arcing, high performance, excellent effect in thin or thick sheet.
Intelligent and Simple mode: Press the main control knot 3 seconds, and the machine will adjust all the parameter to a proper situation which can let you weld normally, even if all the parameters are messed up.
Product Details
Product Paramenters
|
Model No.
|
TIG-315P AC/DC
|
|
Input Voltage
|
3 phase AC220V/380V±15％ 50-60Hz
|
|
Rated Output Current
|
315A
|
|
Rated Output Voltage
|
22V
|
|
Rated Iutput Power
|
12kw
|
|
No-load Voltage
|
70V±3V
|
|
Current Adjusting Range
|
10-315A
|
|
Start Arc Current
|
10-315A
|
|
Pulse Current
|
10-315A
|
|
Welding Current
|
10-315A
|
|
Pulse Frequency
|
0.5-100Hz
|
|
Pulse Width Ratio
|
0.2-0.8
|
|
Down-Slope Time
|
0.1-5s
|
|
Crater Arc Current
|
10-315A
|
|
Post Flow Time
|
5-25s
|
|
utilization factor
|
60/80
|
|
Efficiency
|
83%
|
|
Clean Width
|
25%-75%
|
|
AC Frequency
|
50-150Hz
|
|
Degrees of enclosure protection
|
1P21S
|
|
Weldable thickness of aluminum sheet
|
0.8-8mm
|
