Quick Details
-
Warranty:
-
1years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Chuang Tao
-
Car Model:
-
All models
-
Refrigeratant:
-
R134a
-
Voltage:
-
DC12V/24V
-
Cooling capacity:
-
9600BTUs
-
Cooling area:
-
10 square meters
-
Function:
-
Refrigeration
-
Power:
-
2800W
-
Air volume:
-
760 cubic meters per hour
-
Compressor type:
-
Rotary compressor/scroll compressor
-
Current:
-
70A/40A
-
Temperature:
-
20-25℃
Quick Details
-
OE NO.:
-
KT-04
-
Reference NO.:
-
/
-
Size:
-
404*335*156mm
-
Warranty:
-
1years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Chuang Tao
-
Car Model:
-
All models
-
Refrigeratant:
-
R134a
-
Voltage:
-
DC12V/24V
-
Cooling capacity:
-
9600BTUs
-
Cooling area:
-
10 square meters
-
Function:
-
Refrigeration
-
Power:
-
2800W
-
Air volume:
-
760 cubic meters per hour
-
Compressor type:
-
Rotary compressor/scroll compressor
-
Current:
-
70A/40A
-
Temperature:
-
20-25℃
10+ years strength factory
We are a factory and support customization！！！
Free accessories during the warranty period！！！
Dezhou Chuanatao Mechanical and Electrical Eauipment Co.Ltdwas established in 2015 focusing on the research and de velopment and production of heating and cooling equip ment. At present we mainly produce parking heatersparking ain conditioners,parking generators, solar air conditioners,solar refrigerators.We always adhere to the business philoso phy of quality first win-win cooperationand hope to exchange and co-operate with friends from all over the world.Due to qood quali-tycompetitive price professional technical suppol and good serviceOur products are sold to more than twenty countries.(Pakistan,Nigeria,Canada,Costa-Rica,Cyprus,Mozambique,Turkey,ThailandPhilippines,Belgium,Indone sia,Cze)
Product Description

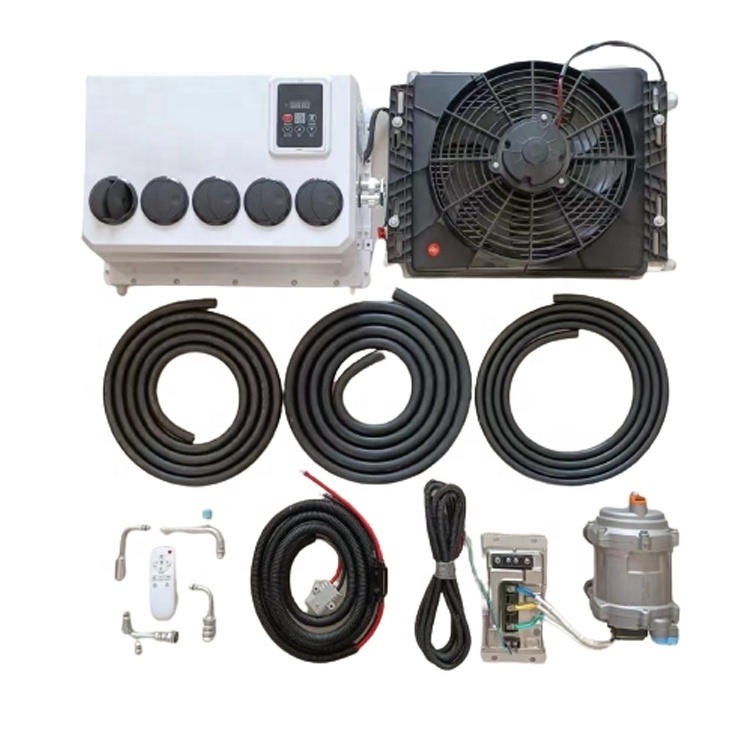

Parking air conditioner is a kind of car air conditioner. It is a device that allows the air conditioner to run continuously with DC power (12V/24V/36V) from the vehicle battery while waiting or resting, and regulates and controls the temperature, humidity, flow rate and other parameters of the ambient air in the vehicle to fully meet the needs of the truck driver for comfortable cooling. It mainly includes: condenser, evaporator, electric control system, compressor, fan and piping system. The main structural forms are divided into two types: split and integrated.
Product Paramenters
|
Rated voltage
|
DC-12V
|
DC-24V
|
|
|
Displacement
|
20cc/r
|
|
|
|
Refrigerant
|
R134a
|
|
|
|
compressor oil
|
RL68H(POE)/120ml
|
|
|
|
Refrigeration capacity
|
>2000W
|
>2600W
|
|
|
input power
|
<600W
|
<850W
|
|
|
COP energy efficiency ratio
|
3.3
|
3.4
|
|
|
range of rotation
|
1000-2300rmp
|
1000-3200rmp
|
|
|
Working voltage range
|
9V-16V
|
18V -32V
|
|
|
Operating temperature
|
-10°C~60°C
|
|
|
Installation display
Certifications
Packing&Shipping
FAQ
Q: How long can the air conditioner run after parking? A: It depends on the capacity of the battery equipped by your vehicle,
200Ah battery can work around 4-6 hours at night and around 5-7 hours.
Q: What are the requirements for air conditioning installation?
A: 12V Battery: generator power greater than 980w, the battery cannot be less than 100A; 24V Battery: the generator power is
greater than 1150w, and the battery should be greater than 100A.
Q: Do you have refrigerants in your products?
A: The air conditioner will choose to keep the refrigerant or evacuate it depending on the shipping method
Q: How much refrigerant needs to be charged to the air conditioner?
A: For split type, 600±10g refrigerant should be filled in. For the roof mount compact type, 560±10g refrigerant should be filled
in. Refrigerant has high and low pressure, high-pressure 11-13mpa, and low-pressure 2.5-3mpa. It takes 20-30 minutes to fill the
air conditioner with a vacuum before refilling the refrigerant.
Q: What warranty you can provide?
A: We provide a 2-year warranty.
Q: Can you accept OEM customers' logo
A: Yes, we can accept one with the customer logo and also the design.
200Ah battery can work around 4-6 hours at night and around 5-7 hours.
Q: What are the requirements for air conditioning installation?
A: 12V Battery: generator power greater than 980w, the battery cannot be less than 100A; 24V Battery: the generator power is
greater than 1150w, and the battery should be greater than 100A.
Q: Do you have refrigerants in your products?
A: The air conditioner will choose to keep the refrigerant or evacuate it depending on the shipping method
Q: How much refrigerant needs to be charged to the air conditioner?
A: For split type, 600±10g refrigerant should be filled in. For the roof mount compact type, 560±10g refrigerant should be filled
in. Refrigerant has high and low pressure, high-pressure 11-13mpa, and low-pressure 2.5-3mpa. It takes 20-30 minutes to fill the
air conditioner with a vacuum before refilling the refrigerant.
Q: What warranty you can provide?
A: We provide a 2-year warranty.
Q: Can you accept OEM customers' logo
A: Yes, we can accept one with the customer logo and also the design.
