Quick Details
-
Voltage:
-
220V, 220V
-
Dimension(L*W*H):
-
2160*850*1450mm
-
Weight:
-
265 KG
-
Model:
-
MT-SK950L
-
Max.shell size:
-
960*460mm
-
Max.finished size:
-
A3+ Horizontal
-
Operating table size:
-
980*466mm
-
Glue format:
-
500mm
-
Hemming format:
-
500mm
-
Rolled format:
-
500mm
-
Applicable cardboard thickness:
-
1.5~4mm
-
Applicable cover Thickness:
-
80~400gsm
Quick Details
-
Type:
-
Paper Cutting Machine
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MILES
-
Voltage:
-
220V, 220V
-
Dimension(L*W*H):
-
2160*850*1450mm
-
Weight:
-
265 KG
-
Model:
-
MT-SK950L
-
Max.shell size:
-
960*460mm
-
Max.finished size:
-
A3+ Horizontal
-
Operating table size:
-
980*466mm
-
Glue format:
-
500mm
-
Hemming format:
-
500mm
-
Rolled format:
-
500mm
-
Applicable cardboard thickness:
-
1.5~4mm
-
Applicable cover Thickness:
-
80~400gsm
Product Description

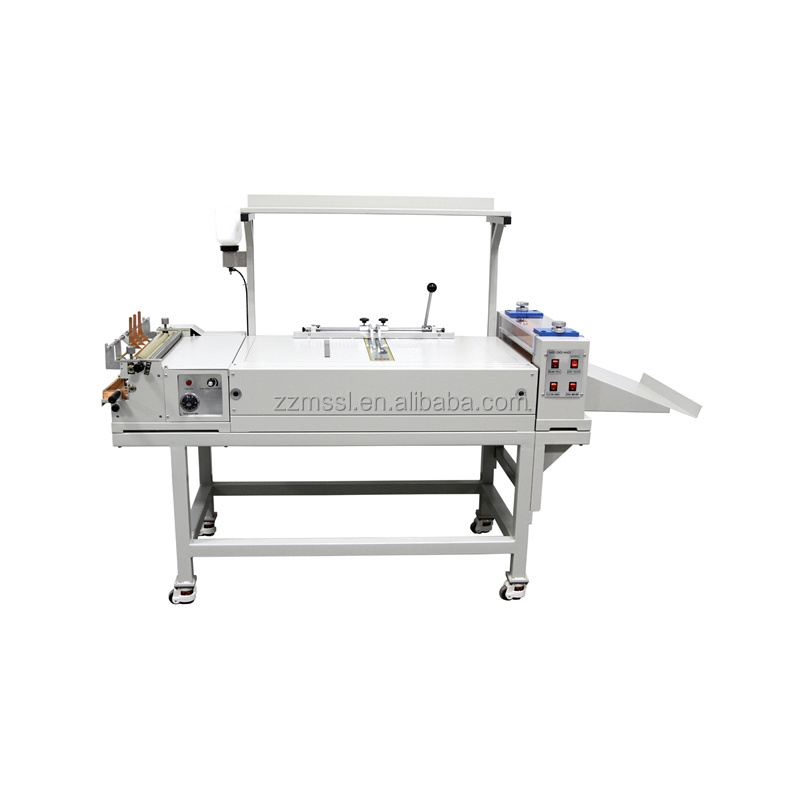

SK950L Factory price Semi-auto gluing Hardcover Book Case Maker A3+ Hard Cover Making Machine
SK950L
hardcover book case machine is composed of multi-functional systems such as hot-melt gluing, cover adsorption positioning, electric hemming, rolling and shaping. Designed according to the hardcover book case production process and operating habits, it meets the needs of small and medium-sized batches of hardcover book cases, album covers, CD cases, recipes and other hardcover case production equipment with multiple types of cover materials.
Specification
|
Model
|
MT-SK950L
|
|
Voltage
|
220V
|
|
Max.shell size
|
960*460mm
|
|
Max.finished size
|
A3+ Horizontal
|
|
Operating table size
|
980*466mm
|
|
Glue format
|
500mm
|
|
Hemming format
|
500mm
|
|
Rolled format
|
500mm
|
|
Applicable cardboard thickness
|
1.5~4mm
|
|
Applicable cover Thickness
|
80~400g/㎡
|
|
Weight
|
265kg
|
|
Dimension
|
2160*850*1450mm
|
Details Images
Hot melt gluing
Independent constant temperature water heating, stepless speed regulation.
Anti-curl flap
The anti-curl flap is self-adaptive and requires no adjustments. The thickness of the glue can be adjusted independently according to the needs.
Electric hemming
Light reflection detection, when the cardboard enters, it will automatically start down to perform reverse electric hemming, and automatically reset up after the hemming is completed.
Quantitative water replenishment
According to the workload and the temperature and humidity changes of the working environment, the amount of water replenishment can be controlled by itself to maintain the appropriate viscosity of the glue.
Rolling and shaping
Put the book case into the rolling system, and complete the shape of the book case through moderate pressure
Cover binding
The size of the cover binding is adjustable.
Cover adsorption positioning
Negative pressure adsorption will position the sealing material accurately without shifting, and avoid air bubbles when the cover is bonded to the cardboard.
Positioning stopper
The fast-installed metal aluminum center seam positioning stopper can be replaced with positioning stoppers of different thicknesses and lengths to meet the production of multi-standard enclosures, desk calendar holders, multi-sheet book cases, letter sleeves, etc.
