Quick Details
-
Circulation Type:
-
Indirect / Closed Loop (Active)
-
Capacity:
-
300
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FadSol
-
Model Number:
-
FD-SP-300L
-
Item:
-

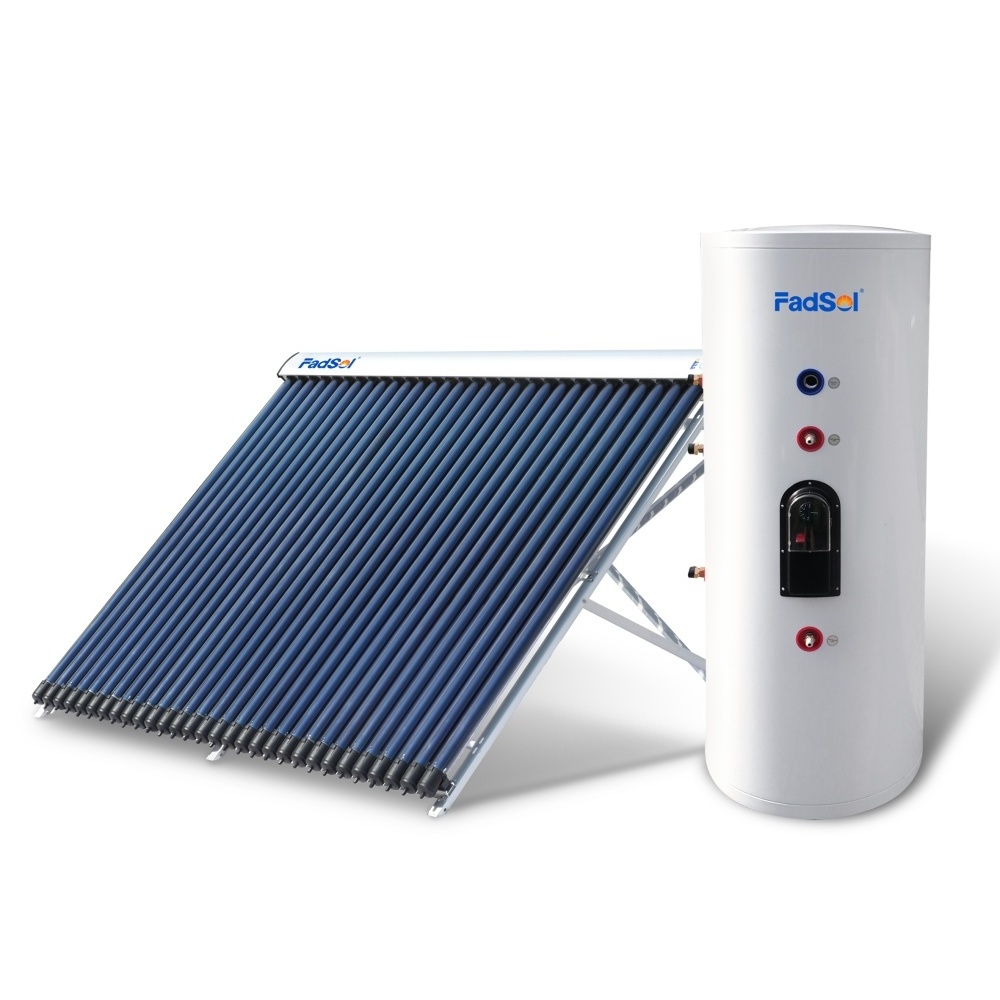

Split Pressurized Solar Water Heater
-
Inner tank material:
-
1.5mm thickness SUS304
-
External tank material:
-
0.55mm thickness car painted color steel
-
Frame material:
-
Aluminium alloy
-
Solar heat storage tank:
-
100-500L
-
Insulation layer:
-
45mm thickness
-
Working pressure(Mpa):
-
0.7Mpa
-
Usage:
-
Bathing, washing, domestic
-
PIpe Material:
-
Heat Pipe Vacuum Tube
-
Color:
-
White
Quick Details
-
Warranty:
-
More than 5 years
-
Application:
-
Household
-
Type:
-
Evacuated Tube
-
Circulation Type:
-
Indirect / Closed Loop (Active)
-
Capacity:
-
300
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FadSol
-
Model Number:
-
FD-SP-300L
-
Item:
-
Split Pressurized Solar Water Heater
-
Inner tank material:
-
1.5mm thickness SUS304
-
External tank material:
-
0.55mm thickness car painted color steel
-
Frame material:
-
Aluminium alloy
-
Solar heat storage tank:
-
100-500L
-
Insulation layer:
-
45mm thickness
-
Working pressure(Mpa):
-
0.7Mpa
-
Usage:
-
Bathing, washing, domestic
-
PIpe Material:
-
Heat Pipe Vacuum Tube
-
Color:
-
White
Product Description
How It Works
1. The collector absorbs solar energy and transmits it to the water tank through circulation.
2. When the temperature of the collector reaches the set value, the controller starts the circulation pump automatically.
3. The circulation pump makes heat-conducting liquid circulate automatically.
4. The heat-conducting liquid transfers heat to water by lower heat exchanger in the water tank.
5. When the temperature difference between solar collector and tank doesn't reach the set value, the circulation pump will be shut automatically.
6. In case the temperature of the water tank does not reach Tmax, Electric Heating Element will start to work automatically.
With double coiler system
