Quick Details
-
Filling Accuracy:
-
±2%
-
Voltage:
-
220 / 380 V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
IVEN
-
Dimension(L*W*H):
-
10830*2500*2340 mm
-
Weight:
-
3000 KG, 2700 Kg~3000 Kg
-
Product Name:
-

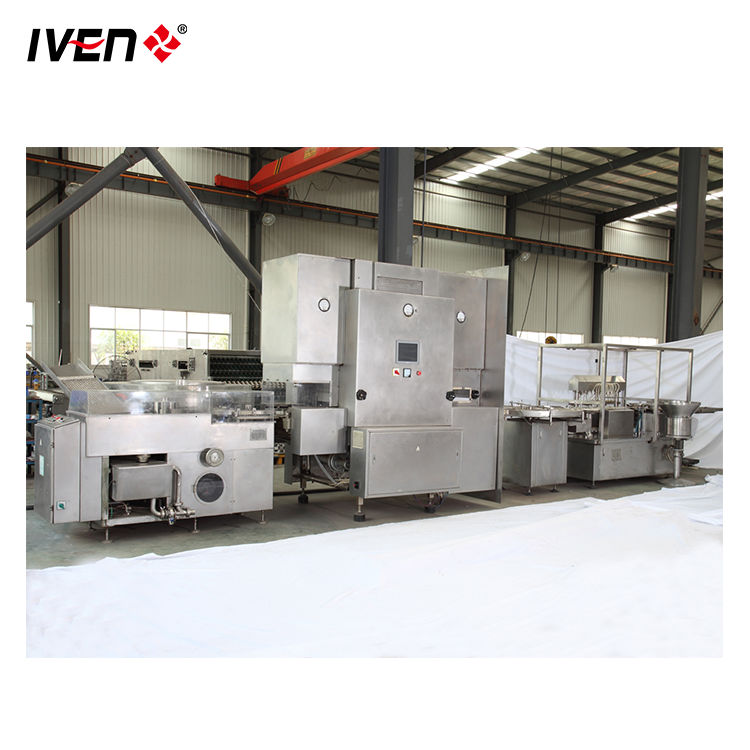

Glass Vial Liquid Powder Filling Sealing Washing and Capping Machine
-
Applicable vial:
-
2-100ml
-
Production capacity:
-
2ml:150 Vial/min~400 Vial/min
-
Filling head:
-
4~12
-
Filling error:
-
1
-
Broken rate:
-
0.1%
-
Stoppering rate:
-
99.9
-
After Warranty Service:
-
Field maintenance and repair service,Video technical support
-
Certification:
-
CE,GMP
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, 12000BPH, 6000BPH, 20000BPH, 16000BPH, 500BPH, 2000BPH, 1000BPH, customized
-
Packaging Material:
-
Wood
-
Filling Material:
-
Water
-
Filling Accuracy:
-
±2%
-
Voltage:
-
220 / 380 V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
IVEN
-
Dimension(L*W*H):
-
10830*2500*2340 mm
-
Weight:
-
3000 KG, 2700 Kg~3000 Kg
-
Product Name:
-
Glass Vial Liquid Powder Filling Sealing Washing and Capping Machine
-
Applicable vial:
-
2-100ml
-
Production capacity:
-
2ml:150 Vial/min~400 Vial/min
-
Filling head:
-
4~12
-
Filling error:
-
1
-
Broken rate:
-
0.1%
-
Stoppering rate:
-
99.9
-
After Warranty Service:
-
Field maintenance and repair service,Video technical support
-
Certification:
-
CE,GMP
|
Model
|
Production line
|
Suitable size
|
Output(max)
|
Power
|
Net weight
|
Overall size
|
|
BXKZ I
|
CLQ 40
|
2.25 ml
|
6000-12000 pcs/h
|
69.8 KW
|
7500 Kg
|
9930×2500×2340 mm
|
|
|
RSM 620/44
|
|
|
|
|
|
|
|
KGF 8
|
|
|
|
|
|
|
BXKZ II
|
CLQ 60
|
2.25 ml
|
8000-18000 pcs/h
|
85.8 KW
|
8000 Kg
|
10830×2500×2340 mm
|
|
|
RSM 620/60
|
|
|
|
|
|
|
|
KGF10
|
|
|
|
|
|
|
BXKZ III
|
CLQ 80
|
2.25 ml
|
10000-24000 pcs/h
|
123.8 KW
|
8100 Kg
|
10830×2500×2340 mm
|
|
|
RSM 900/100
|
|
|
|
|
|
|
|
KGF 12
|
|
|
|
|
|
Feature
1.The compact line realizes single linkage, continuous operation from washing, sterilizing & drying, filling & stoppering and capping. The whole production process realizes cleaning operation; protects products from contamination, meets the GMP production standard.
3.Transparent self-lifting protective cover with humid air outlet, electric screw control, safe and easy to maintenance.
4.For customers' liquid medicine and filling accuracy requirements, the ceramic pump filling system is selected, which can effectively ensure the filling accuracy and can be flexibly switched.
5.The stoppering form of inserting while rotating can effectively ensure the stoppering effect.
6.Capping machine: No Vial – No Capping, No Stopper – No Capping, Vacuum absorb aluminum scrap device.
2.Full servo control.
3.Transparent self-lifting protective cover with humid air outlet, electric screw control, safe and easy to maintenance.
4.For customers' liquid medicine and filling accuracy requirements, the ceramic pump filling system is selected, which can effectively ensure the filling accuracy and can be flexibly switched.
5.The stoppering form of inserting while rotating can effectively ensure the stoppering effect.
6.Capping machine: No Vial – No Capping, No Stopper – No Capping, Vacuum absorb aluminum scrap device.
