- Product Details
- {{item.text}}
Quick Details
-
Memory Type:
-
DDR4
-
Graphics Card Type:
-
Non-Integrated
-
Chipset:
-
q87
-
Brand Name:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
Model name:
-
X99 QD4+2650v3+16g
-
Socket:
-
lga 2011-3
-
Memory:
-
4*ddr4
-
LAN:
-
LAN 1000M
-
Condition:
-
New
-
USB:
-
4*USB2.0+2*USB3.0
-
Size:
-
245mm*190mm
-
Warranty:
-
1 year
-
Test condition:
-
100% Fully Test
-
SATA:
-
6*sata 3.0+1*m.2
Quick Details
-
Maximum Ram Capacity:
-
128 GB
-
Application:
-
Server/Workstation
-
Form Factor:
-
ATX
-
Memory Type:
-
DDR4
-
Graphics Card Type:
-
Non-Integrated
-
Chipset:
-
q87
-
Brand Name:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
Model name:
-
X99 QD4+2650v3+16g
-
Socket:
-
lga 2011-3
-
Memory:
-
4*ddr4
-
LAN:
-
LAN 1000M
-
Condition:
-
New
-
USB:
-
4*USB2.0+2*USB3.0
-
Size:
-
245mm*190mm
-
Warranty:
-
1 year
-
Test condition:
-
100% Fully Test
-
SATA:
-
6*sata 3.0+1*m.2

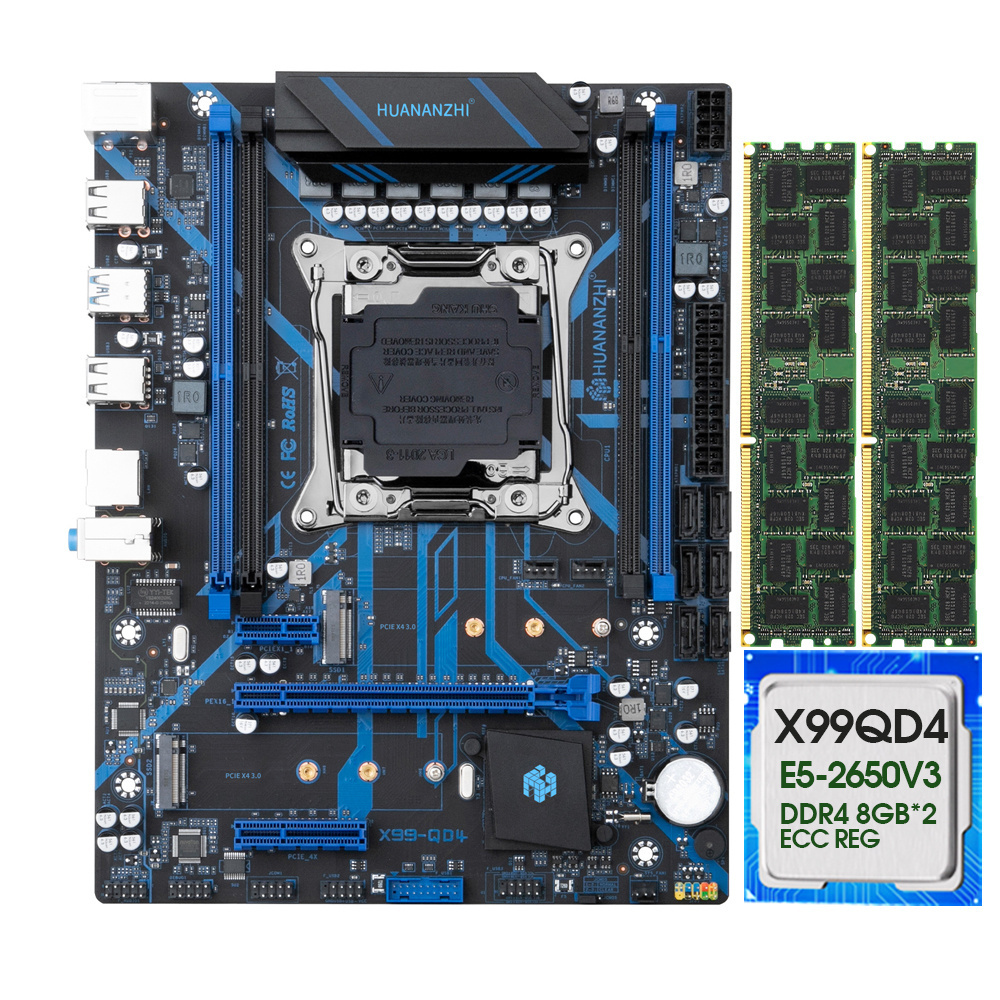

Package listing including
X99 QD4 Motherboard
*1pcs (brand new);
E5 2650V3 CPU * 1pcs (used)
ddr4 8g 2133mhz ecc reg memory *2 pcs
ddr4 8g 2133mhz ecc reg memory *2 pcs
Free gifts
:Baffle*1pcs;Sata cable*1pcs;Switch cable*1pcs (brand new)
Attention ,the Motherboard maybe with a few update in printing and outlook from different production,it not affect usage, if you mind please don't buy!!!!
Attention ,the Motherboard maybe with a few update in printing and outlook from different production,it not affect usage, if you mind please don't buy!!!!
Specification:
Model：HUANANZHI QD4 Motherboard
CPU Socket：Supports Intel LGA2011-3 platform processors
Main chipset: Q87 ... Etc chipset shipped randomly
Main chipset: shipped randomly
Ｍemory Socket：4*DDR4 memory socket，Maximum Memory Capacity 128G
Ｍemory Standard：Support Four channel DDR4 2400/2133/1866MHz
SATA Inderface：6 *SATA3.0 6Gb/s interface
Extended Inderface：2*M.2 2280 NVME PCIE X4 3.0 32Gb/s；4*USB2.0；2*USB3.0；1*network interface； 1*3-hole audio interface
Expansion Slots：1*PCI Express 3.0 x16；1*PCI Express 3.0 x4；1*PCI Express 2.0 x1
Soud Track：Realtek High Definition Audio
Network interface：Gigabit Ethernet
Power interface：24pin+8pin
Fan interface：2 *CPU_FAN + 1* SYS_FAN
PCB layer：6 layer PCB，6Phases power supply
Dimension：245*190MM M-ATX
Model：HUANANZHI QD4 Motherboard
CPU Socket：Supports Intel LGA2011-3 platform processors
Main chipset: Q87 ... Etc chipset shipped randomly
Main chipset: shipped randomly
Ｍemory Socket：4*DDR4 memory socket，Maximum Memory Capacity 128G
Ｍemory Standard：Support Four channel DDR4 2400/2133/1866MHz
SATA Inderface：6 *SATA3.0 6Gb/s interface
Extended Inderface：2*M.2 2280 NVME PCIE X4 3.0 32Gb/s；4*USB2.0；2*USB3.0；1*network interface； 1*3-hole audio interface
Expansion Slots：1*PCI Express 3.0 x16；1*PCI Express 3.0 x4；1*PCI Express 2.0 x1
Soud Track：Realtek High Definition Audio
Network interface：Gigabit Ethernet
Power interface：24pin+8pin
Fan interface：2 *CPU_FAN + 1* SYS_FAN
PCB layer：6 layer PCB，6Phases power supply
Dimension：245*190MM M-ATX
Product Description
Specification
|
Specification:
|
|
|
CPU
|
Supports LGA2011-3 Xeon CPU
|
|
Chipset
|
Q87 ... Etc chipset shipped randomly
|
|
Memory
|
DDR4 slots,2400/2133/1866MHz (server/normal memory) upto 128GB
|
|
I/O interface
|
1 x PS/2
4x USB2.0+2*USB3.0
1 x RJ45
1 x 3-in-1 Audio port (Line In/ Line Out/ MIC In) |
|
Onboard interface
|
1 x 24-pin ATX power connector
1 x 8-pin ATX power connector
2 x USB connectors, can support 2xUSB 2.0 1 x F_ AUDIO connector 1 x F_ PANEL connector 1 x SPEAKER connector 1 x JCMOS connector 1 x COM connector 1 x DEBUG connector 1 x LPC_EDBUG connector 2 x SATA2.0+2 x SATA3.0 connection ports 1 x PCI Express 3.0 16x slot 1 x PCI Express 4X slots |
|
Integrated sound
|
with 6-channel HD Audio Codec onboard
|
|
Integrated LAN
|
with 1000Mbps LAN onboard
|
|
Dimension
|
M-ATX architecture (245 x 190mm)
|
