Quick Details
-
BCD Curve:
-
C
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BAYM
-
Model Number:
-
BA47-125PV
-
Rated Frequency (Hz):
-
50/60 Hz
-
Number of Pole:
-
2
-
Network type:
-
DC
-
Rated current:
-
125A
-
Rated insulation voltage:
-
1000VDC
-
Number of Poles:
-
2
-
Breaking capacity:
-
6KA
-
Trip unit technology:
-
Thermal-magnetic
-
Function:
-
Short circuit protection/ Control Isolation/ Overload protection
-
Curve code:
-
C
-
Standards:
-
IEC 60947-2/ EN 60947-2
-
Rated breaking capacity(lcs):
-
100% of the lcu
Quick Details
-
Breaking Capacity:
-
High
-
Rated Voltage:
-
500V
-
Rated Current:
-
125A
-
BCD Curve:
-
C
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BAYM
-
Model Number:
-
BA47-125PV
-
Rated Frequency (Hz):
-
50/60 Hz
-
Number of Pole:
-
2
-
Network type:
-
DC
-
Rated current:
-
125A
-
Rated insulation voltage:
-
1000VDC
-
Number of Poles:
-
2
-
Breaking capacity:
-
6KA
-
Trip unit technology:
-
Thermal-magnetic
-
Function:
-
Short circuit protection/ Control Isolation/ Overload protection
-
Curve code:
-
C
-
Standards:
-
IEC 60947-2/ EN 60947-2
-
Rated breaking capacity(lcs):
-
100% of the lcu
* FUNCTIONS:
Used to protect power distribution facilities from overload and short-circuit damage, and can also be used for control and isolation.

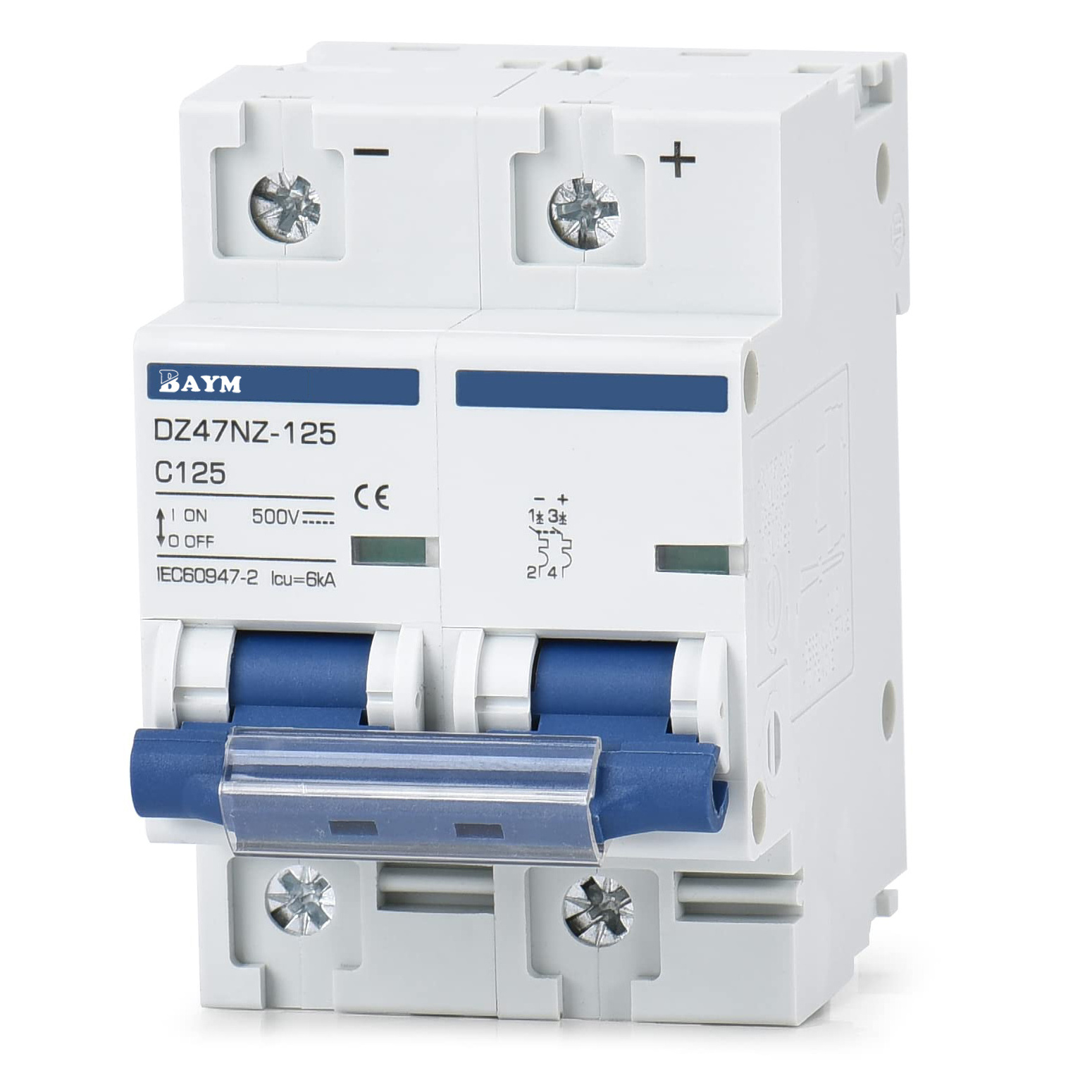

12-500V DC MCB Protected the - And + Pole of the battery
* ARC EXTINGUISHING: This DC circuit breaker has a magnetic system to assist arc extinguishing.
* QUALITY: Silver alloy contacts, flame retardant material shell, color indicator.
* APPLICATION: Widely used in 200-500V DC solar panel grid system to protect from damage caused by overcurrent caused by overload or short
circuit. It can also be used for on-off of household DC circuits
* INSTALLATION: Screw clamp wires, 35mm DIN rail mount.
* ARC EXTINGUISHING: This DC circuit breaker has a magnetic system to assist arc extinguishing.
* QUALITY: Silver alloy contacts, flame retardant material shell, color indicator.
* APPLICATION: Widely used in 200-500V DC solar panel grid system to protect from damage caused by overcurrent caused by overload or short
circuit. It can also be used for on-off of household DC circuits
* INSTALLATION: Screw clamp wires, 35mm DIN rail mount.
* Note：
If you find that the screw part of the circuit breaker is burned, 99% of it is because the screw is not tightened
Strong Temp Adaptability
It is very important to use flame-retardant enclosures for electrical equipment. If inexpensive non-flame-retardant enclosures are
used, fires are likely to occur.
Our DC circuit breakers feature high quality flame retardant housings
used, fires are likely to occur.
Our DC circuit breakers feature high quality flame retardant housings
Thermal Magnetic Trip
When the circuit current exceeds the rated current of the circuit breaker, the circuit breaker will heat up and disconnect. The
greater the current, the shorter the disconnection time.
The circuit breaker with thermal magnetic tripping characteristics will not trip instantaneously between 1-3 times the current
greater the current, the shorter the disconnection time.
The circuit breaker with thermal magnetic tripping characteristics will not trip instantaneously between 1-3 times the current
Adjustable Installation Buckle
* Suitable for 35mm DIN rail, easy to install and hard to fall off.
*
Large space, put the wire end in the middle of the terminal hole.
* Reduce the wear of the contacts.
* Improve electrical durability.
* Improve electrical durability.
DIN Rail
* Install the 35mm DIN rail horizontally in a stable environment.
Installation
* Hang the circuit breaker slot on the DIN rail
* Push the lower end of the circuit breaker into the DIN rail
* Push the lower end of the circuit breaker into the DIN rail
Dismounting
* Push the circuit breaker upward
* Turn the upper end of the circuit breaker out of the DIN rail
* Turn the upper end of the circuit breaker out of the DIN rail
Q: Is OEM available?
A: Yes, OEM and customization are available. Also, we can provide label printing service.
Q: Are samples available?
A: Free samples are available while freight is chargeable.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after recieving the advance payment;
For the customized product, 15-30 days after receiving the advance payment.
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
