Quick Details
-
Power:
-
1.5KW
-
Min. Lifting Height:
-
-300mm
-
Table Size:
-
2000*2000*600
-
Overall Dimensions:
-
2000*2000*600
-
Weight:
-
650 kg
-
Specified Load:
-
Reference 8 tons
-
Equipment Size(Customizable):
-
L:2000mm/2500mm, W:2000mm, H:600mm
-
Thickness and Length of the Base Plate:
-
16mm, 400mm + 8mm thickness 600mm (expansion stroke 1000mm)
-
Main Board Thickness:
-
8mm pattern plate (provide full countertop pattern board)
-
Power of Motor:
-
Domestic ks pump station with 2 solenoid valves (380v,50hz, 1.5KW )
-
Main Board Skeleton:
-
4mm thick U-type (Can be understood as double C steel)
-
Anti-collision Rubber:
-
Specification: L300 * W 200 * H100mm belt stamping manufacturing
-
RAL Color (optional):
-
Black 9017/Gray 7016/Blue 5005
-
Spray Surface Treatment:
-
Steel sand spray after rust removal
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Panda
-
Power:
-
1.5KW
-
Min. Lifting Height:
-
-300mm
-
Table Size:
-
2000*2000*600
-
Overall Dimensions:
-
2000*2000*600
-
Weight:
-
650 kg
-
Specified Load:
-
Reference 8 tons
-
Equipment Size(Customizable):
-
L:2000mm/2500mm, W:2000mm, H:600mm
-
Thickness and Length of the Base Plate:
-
16mm, 400mm + 8mm thickness 600mm (expansion stroke 1000mm)
-
Main Board Thickness:
-
8mm pattern plate (provide full countertop pattern board)
-
Power of Motor:
-
Domestic ks pump station with 2 solenoid valves (380v,50hz, 1.5KW )
-
Main Board Skeleton:
-
4mm thick U-type (Can be understood as double C steel)
-
Anti-collision Rubber:
-
Specification: L300 * W 200 * H100mm belt stamping manufacturing
-
RAL Color (optional):
-
Black 9017/Gray 7016/Blue 5005
-
Spray Surface Treatment:
-
Steel sand spray after rust removal
Products Description

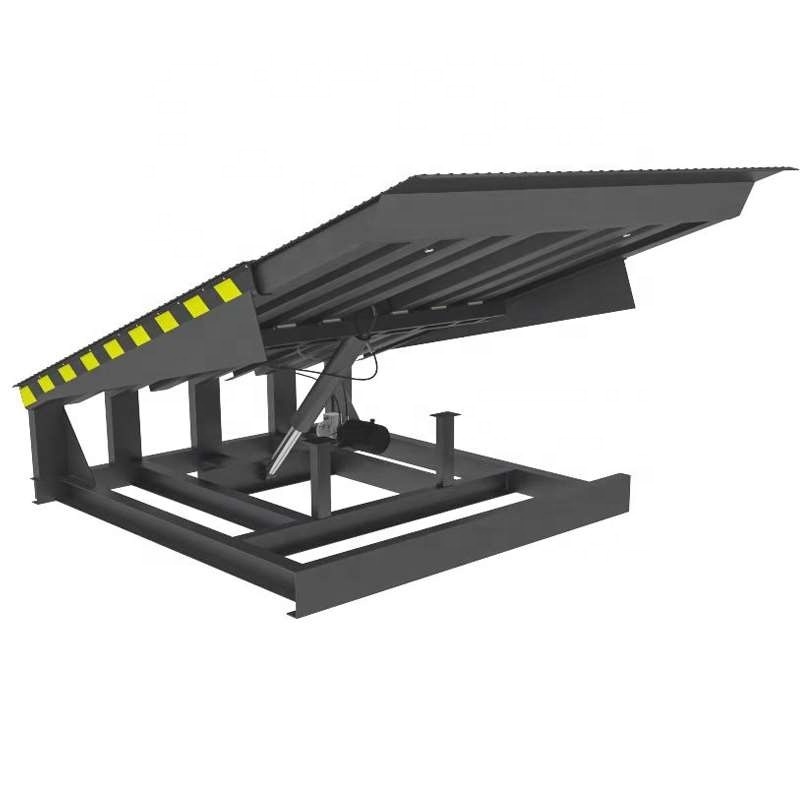

Hydraulic Dock leveler/Platform
With the rapid development of the logistics industry, modern multi-functional loading and unloading areas need advanced loading and unloading systems to support, so that the link between warehouses and vehicles is smoother, thereby greatly increasing the flow rate of goods. Unloading platforms are widely used in warehouses, logistics centers, etc. It has become the first choice for warehousing and logistics supporting equipment for many enterprises.
We have advanced production equipment, including a 12,000W large laser cutting machine, robotized welding platforms, and a large-scale assembly line painting system. Specializing in hydraulic unloading platforms, telescopic platforms, edge platforms, inflatable door seals, mechanical door seals, sponge door seals, and industrial doors for logistics and transportation equipment, these products are widely used in sectors with high operational demands, such as logistics, warehousing, precision machinery, cold chain, automotive, factories, food, pharmaceuticals, and printing.
Telescopic
Dock Leveler
Hydraulic telescopic platform is a kind of cargo transportation equipment with good stability, large carrying capacity and wide application range. Achieving loading and unloading operations at warehouse shipping points over longer distances by utilizing the extended telescopic range of the pallet, enhancing operational efficiency.
Product Details
External platform foundation pit drawing (Product dimensions L*W*H)
1. Electric control device (power supply
380v
, three -phase five-wire power
0.75kw-1.1kw
)
2. Wire pipe diameter
32mm
, no dead Angle distribution pipe (supplied/installed by buyer)
3. Foundation pit protection Angle adopts 75 Angle steel wall thickness
8mm
(provided/installed by the buyer)
4. Angle steel is configured with
10mm
steel bars to strengthen the structure (provided/installed by the buyer)
5. The overall depth of foundation pit bottom is
610mm
6. The diagonal cannot be larger than
10mm
7. The buried pipe is
150mm
above the ground
Built-in platform foundation pit drawing (Product dimensions L*W*H)
1.Electric control device (power supply
380v
, three-phase four-wire)
2.Wire pipe diameter
32mm
, no dead Angle distribution pipe (supplied/installed by the buyer)
3.Foundation pit protection Angle with 75 Angle steel wall thickness
8mm
(provided/installed by the buyer)
4.Angle steel with
10mm
steel bars to strengthen the structure (provided/installed by the buyer)
5.The overall depth of foundation pit bottom is
400mm
Attention!
- Do not deviate from the provided hole size requirements
- Pit walls must be vertical
- Pit angles must be square (diagonal lines must be equal)
- Pit to be prepared by buyer
- The horizontal impact pressure must be borne by the wall and cannot
Supported by the framework of the platform
Circuit Schematic Diagram
Telescopic dock leveler/platform
Product Paramenters
|
Manufacturer
|
Jiangsu Panda Logistics Equipment Co., LTD
|
|
Specified Load
|
Static load of 12 tons, moving load of 8 tons;
We ensure the plate surface will not deform and depress
|
|
Equipment size
|
L:2000/2500mm, W:2000mm, H:600mm
|
|
Pit Size
|
L:2000/2500mm, W:2030mm, H:610mm
|
|
Power Form
|
Electric hydraulic
|
|
Highly Regulated Range
|
-300/+300mm
|
|
Accommodation Time
|
<30 seconds (Any position to the corresponding maximum limit range)
|
|
Thickness and Length of the Base Plate
|
16mm, 400mm + 8mm thickness 600mm (expansion stroke 1000mm)
|
|
Main Board Thickness
|
8mm pattern plate (provide full countertop pattern board)
|
|
Installation Method of the Electric Control Box
|
Four-key operation, optional including emergency stop lock (stop go)
|
|
Power of Motor
|
Domestic ks pump station with 2 solenoid valves (380v、50hz、 1.5KW ）
|
|
Seal Components
|
Imported
|
|
Main Board Oil Cylinder (main oil cylinder)
|
1 with 76 * 50 * 350mm
|
|
Plate oil cylinder (auxiliary oil cylinder)
|
1 with 55 * 30 * 1050mm
|
|
Main Board Skeleton
|
4mm thick U-type (Can be understood as double C steel)
|
|
High Pressure Oil Pipe
|
GB / T3683-2001; 40 mpa (Qingdao Qingxiang hydraulic oil pipe)
|
|
Body protection baffle on both sides
|
Automatic expansion to ensure safety
|
|
Hydraulic oil Specification \ Model
|
The 32 # compression-resistant grinding oil
|
|
Working Pressure of the Hydraulic Oil
|
8Mpa ±1Mpa
|
|
Hydraulic Tank Capacity
|
5L-6L
|
|
Operating Temperature of the Hydraulic System
|
-20℃~+50℃
|
|
Anti-collision Rubber
|
Specification: L300 * W 200 * H100mm belt stamping manufacturing
|
|
Pattern Steel Plate and Other Profiles
|
Q235B steel
|
|
Spray Surface Treatment
|
The surface is sprayed by steel sand spraying and rust removal, with 200℃ high temperature baking, to ensure that the product
paint has good adhesion, high hardness and better rust prevention performance. |
|
Color (optional)
|
Black 9017 Gray 7016 Blue 5005
|
|
The Power Supply
|
380V
|
|
Number of Use
|
200,000 times
|
|
Equipment availability
|
≥99%
|
|
Work Noise
|
＜50dB （±5Db）
|
|
Warranty Time
|
The whole machine is repaired free of charge for one year
|
|
Warranty Time
|
The whole machine is repaired free of charge for one year
|
Similar Products
Company Introduction
Jiangsu PANDA Logistics Equipment Co., Ltd. is a modern production enterprise that integrates design, manufacturing, sales, installation, and after-sales service. Since its establishment in 2013, PANDA Logistics has continuously expanded its presence in the international market, with products exported to
over 20 countries and regions
, including South Korea, Germany, Italy, Vietnam, Laos, Bangladesh, Pakistan, Mongolia, Tajikistan, Myanmar, Russia, Finland, Singapore, Afghanistan, Mexico, Malaysia, India, Indonesia, Cambodia, the Philippines, and Australia.
The company has established long-term cooperative relationships with over 500 global clients, earning a reputation for top-notch quality.
As of 2023, Jiangsu PANDA
boasts a factory area of 15,000 square meters, over 100 employees, and advanced production equipment, including a 12,000W large laser cutting machine, robotized welding platforms, and a large-scale assembly line painting system.
Specializing in hydraulic unloading platforms, telescopic platforms, edge platforms, inflatable door seals, mechanical door seals, sponge door seals, and industrial doors for logistics and transportation equipment, these products are widely used in sectors with high operational demands, such as logistics, warehousing, precision machinery, cold chain, automotive, factories, food, pharmaceuticals, and printing.
Jiangsu PANDA is committed to elevating product research and development, ensuring quality, and upholding a strong reputation. Over the years, the company has earned prestigious honors, including
"China's Top Ten Recommended Brands," "Jiangsu High-Quality and Integrity Door Business Unit," "National Quality Credit Service AAA Grade Member Demonstration Unit," and "Jiangsu Trustworthy Enterprise."
With multiple research and development patents, the company has laid a solid foundation for sustainable development.
Exporting country
Asia:
China、Thailand、 Malaysia、Indonesia、Singapore、Myanmar、Philippine、India、 Sri-lanka、Vietnam、UAE、Bahrain、F、Cambodia、Dubai、Pakistan、Mongolia、South Korea
Europe:
Poland、Russia、Holland、England、Norway、Germany、Swedish、ltaly、Denmark、Ukraine
South America:
Colombia、Brazil、Chile、Argentina、Brazil、Peru
North America:
Jamaica
Africa:
Nigeria、Angola、Luanda、South Africa、Zambia、Ghana
Oceania:
Australia、New Zealand
Successful Project
FAQ
Q1：
Are you a trading company or a factory?
We are a chinese Logistics equipment manufacturer.
We have our own production plant as the background and top three in the production scale in China. Have a strong technical team / R & D team. Our
products are very good in quality and competitive in price. so they sell well.
Q2：
Can you do the full set products according to my project drawing?
Of course,
we have our own design parameters.
we can design and product the whole set Logistics equipment, also support all kinds of customization.If you need,
our engineer will check your project drawings to make sure its accuracy for each different fittings and quantity.
Q3：
Do you produce other products? Do you also produce accessories?
Yes, we also produce
various types of hydraulic platforms and loading
dock leveler,
mobile boarding bridge,
industrial
dock seal,
high speed pvc Door, l
ifting door, v
ehicle restraint, a
nti-collision block and other
logistics transportation equipment
; We produce parts by ourselves in order to control quality and cost.
Q4：
Can you give us a discount?
Because we have the most advanced production equipment, so in improving the quality of products but also effectively control the cost, you can buy at a very affordable price to your satisfaction.
If you need a large quantity or consider long-term cooperation, the price will be more favorable.
Q5：
How is the delivery time?
We will ship the goods after 25 working days after receiving the full payment.
