Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Qingli
-
Liquid Flow Rate:
-
0.1~10 M/s
-
Maximum Working Pressure:
-
1.6Mpa
-
Weight:
-
40 KG
-
Dimension(L*W*H):
-
Request
-
Warranty:
-
1 Year
-
Working Temperature Range:
-
Based on the model
-
After-sales Service Provided:
-
No overseas service provided
-
Material:
-
Aluminum/copper/steel
-
Application:
-
water cooling or heating air
-
Connection type:
-
Loose Flange or welding Thread
-
Product Name:
-
Stainless Steel Tube Cooling Type Air Steam Heat Exchanger Coil
-
Tube material:
-
Aluminum Stainless Steel
-
Fin material:
-
Auminum
-
Fin Type:
-
Extruded
-
Plate material:
-
SS304/SS316/SS316L/Titanium
-
Color:
-
Silver
Quick Details
-
Structure:
-
heat exchanger coil
-
Voltage:
-
no request
-
Core Components:
-
fin tube
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Qingli
-
Liquid Flow Rate:
-
0.1~10 M/s
-
Maximum Working Pressure:
-
1.6Mpa
-
Weight:
-
40 KG
-
Dimension(L*W*H):
-
Request
-
Warranty:
-
1 Year
-
Working Temperature Range:
-
Based on the model
-
After-sales Service Provided:
-
No overseas service provided
-
Material:
-
Aluminum/copper/steel
-
Application:
-
water cooling or heating air
-
Connection type:
-
Loose Flange or welding Thread
-
Product Name:
-
Stainless Steel Tube Cooling Type Air Steam Heat Exchanger Coil
-
Tube material:
-
Aluminum Stainless Steel
-
Fin material:
-
Auminum
-
Fin Type:
-
Extruded
-
Plate material:
-
SS304/SS316/SS316L/Titanium
-
Color:
-
Silver
|
||
|
|
|

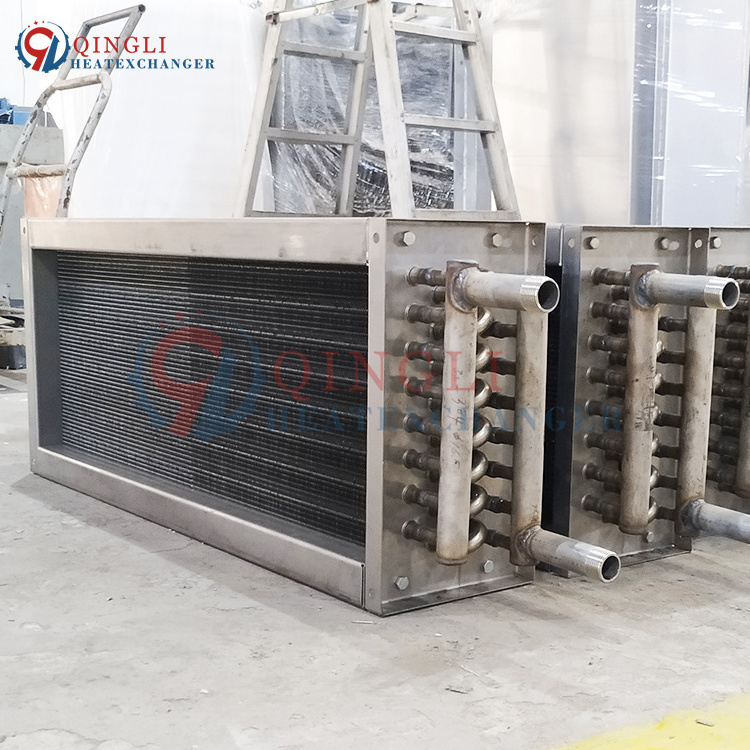

The heat exchanger is made of copper pipe sets of aluminum, the hydraulic tube after the formation of the heat exchanger, the product has a light weight, fin and steel pipe close contact, heat transfer performance and air flow performance is good for water-cooled, Cooling system, suitable for centralized cooling, heating air heat exchanger, so in the heating, cooling air conditioning, washing and drying equipment, dehumidification project is widely used.
High Efficiency pipe
Material: Copper
Tuber OD: 9.52MM 12.7MM,15.88mm.
Material: Stainless steel ,Tuber OD: 16.0MM.
Fin type
Material: Aluminum
Fin Size 1.9MM-6MM
Advantages: Fin pitchs can be customized by user.
Dimension of Heat Exchanger(
can be customized,
pls contact us
)
The Basic Parameter of Heat Exchanger(can be customized, pls contact us )
Heat Exchanger Features:
♦
Quality copper tube and aluminum fin, it achieves a high heat transfer coefficient. After treatment of oil removal, rust removal, phosphating, passivation, spray coating and drying, the casing enjoys excellent corrosion-proof performance.
♦
Automatic molding process ensures dry and clean interior of the copper tube.
♦
Close conjunction of aluminum fin and copper tube achieves a good effect of heat transfer.
♦
Loop design prevents pressure loss as possible.
♦
Multi-loop crossspread contributes to better heat dispersion effect.
♦
Having passed 2.6mpa air tightness test, the coil satisfies the requirements for tightness.
♦
Customized service (specific material, space) is available.
The product is widely used in refrigeration unit, cold storage unit and industrial refrigeration unit.
