Best Price Cream Dairy Juice Homogenizer For Milk industry Bean Beater Best Food grinder automatic electric Circulation Pump

Best Price Cream Dairy Juice Homogenizer For Milk industry Bean Beater Best Food grinder automatic electric Circulation Pump

FOB Reference Price: Get Latest Price

≥1 Sets

US $500

≥5 Sets

US $490

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Max. Loading Capacity:: 100-100T

Weight (KG):: 45 KG

Place of Origin:: Zhejiang, China

Brand Name:: LENO

Voltage:: 120V/220V/380V/440V

Dimension(L*W*H):: customized

Power (kW):: 22 kW

Product name:: homogenizer mix emulsify pump

Usage:: Mixing Products

Capacity:: 0-130TON/H

pressure:: 2bar

Speed:: 2900RPM/3400RPM

agitator speed:: high speed

Discharge:: sanitary valve

Homogenizer:: Stator Homogenizing

Power(W):: 1.5kw-30kw

Quick Details

Barrel Volume (L):: 800

Max. Loading Volume (L):: 100 L

Range of Spindle Speed(r.p.m):: 1400 - 3400 r.p.m

Max. Loading Capacity:: 100-100T

Weight (KG):: 45 KG

Place of Origin:: Zhejiang, China

Brand Name:: LENO

Voltage:: 120V/220V/380V/440V

Dimension(L*W*H):: customized

Power (kW):: 22 kW

Product name:: homogenizer mix emulsify pump

Usage:: Mixing Products

Capacity:: 0-130TON/H

pressure:: 2bar

Speed:: 2900RPM/3400RPM

agitator speed:: high speed

Discharge:: sanitary valve

Homogenizer:: Stator Homogenizing

Power(W):: 1.5kw-30kw

Products Description

material	SS304 or SS316L
Capacity	0-130T (Customized)
pressure	0-2Bar
Viscosity	1-1000000pas
rotors teeth	Fine/Middle/rough
temperature	0-100 celsius degree
installation	Movebale or Fixed
connection	Clamp union flange
motor type	Normal	Ex-proof	inverter
Speed	0-3400RPM

Technical Parameters
Model	capacity (T/H)	Speed(RPM)	out Pressure(bar)	power(KW)
LNP-1-80	0-1.5	2900/3400	≤2Bar	1.5
LNP-1-100	0-3	2900/3400			2.2
LNP-1-130	0-4	2900/3400			4.0
LNP-1-140	0-5	2900/3400			5.5
LNP-1-165	0-8	2900/3400			7.5
LNP-1-180	0-12	2900/3400			11
LNP-1-185	0-18	2900/3400			15
LNP-1-200	0-25	2900/3400			22
LNP-1-210	0-35	2900/3400			30
LNP-1-230	0-50	1450/1700			45
LNP-1-245	0-75	1450/1700			55
We can customize the equipment according to customer requirements.

Description
The emulsification pump (also called in-line high-shear dispersion mixer) is a high-efficient fine mixing equipment which
integrates mixing, dispersion, crushing, dissolution, fine, depolymerizing, homogenization and emulsification, whose working components are mainly stator and rotator. The rotor rotates rapidly to produce centrifugal force and hydraulic force and the stator remains stationary. Through the precise combination of the rotor and the stator, a strong shear force is generated during high-speed rotation, and the material is subjected to strong shear, centrifugal extrusion, impact rupture, liquid friction, and uniform turbulence. Thus, various media such as immiscible solid phase, liquid phase, and gas phase are uniformly and finely dispersed and emulsified in an instant. After a reciprocating cycle, a stable and high-quality product is finally obtained.

Model	L2(mm)	L(mm)	H(mm)	A(mm)	H2(mm)	H3(mm)	DΦ(mm)	BΦ
LNP-1-80	74	528	367	240	180	126.5	38	32
LNP-1-100	74	528	367	240	180	126.5	38	32
LNP-1-130	76	611	413	290	202	135	51	38
LNP-1-140	80	660	490	340	222	152.5	63.5	51
LNP-1-165	80	700	490	340	222	152.5	63.5	51
LNP-1-180	92	847	554	382	260	167.5	63.5	63.5
LNP-1-185	92	847	554	382	260	167.5	76.2	63.5
LNP-1-200	96.5	957	585	410	290	181	76.2	63.5
LNP-1-210	109	1035	659	460	310	186	89	76.2
LNP-1-230	115	1090	705	460	323	196	102	89
LNP-1-245	132	1160	750	570	370	204	102	102

Application

Applicable to the fields of food, dairy, beverage, cosmetic etc industry.
1. Chemical Industry: Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc.
2. Food Industry: Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc.
3. Daily Chemicals: Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish etc.

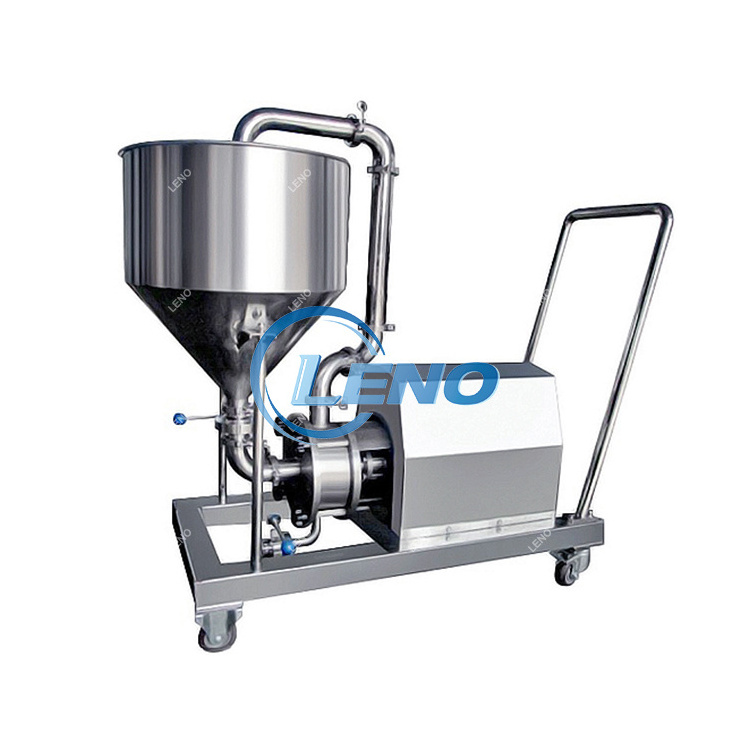

Product Image
