Quick Details
-
Dimension(L*W*H):
-
1920x795x1135
-
Weight:
-
550 kg
-
Working Pressure:
-
1.2 bar
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hengda
-
Model Number:
-
WH-1.2/30
-
Dimension(L*W*H):
-
1920x795x1135
-
Weight:
-
550 kg
-
Working Pressure:
-
1.2 bar
High pressure air compressor introduction
“ hengda ” COMPRESSOR , WH-1.2/30 MOD , reciprocating,stationary,in “ W ” frame arrangement,balanced,single-acting, two-stage compression, with crossheads, air-cooled,with cylinders lubrication,equipped with three-cylinder compressor body.
technical parameter
|
Item |
technical parameter |
Remark |
|
model |
WH-1.2/30 |
|
|
Fluid to be compressed |
AIR |
|
|
Speed |
76 0 rpm |
|
|
Discharge pressure |
30 bar(g) |
|
|
Effectively produce volume |
1.2 Nm 3 /min |
|
|
electric motor power |
15 kw |
3-phase ,Squirrel Cage Rotor ; “ V ” -Belt Transmission |
|
Nr.cylinders |
3 |
In “ W ” Frame Arrangement, Air Cooled,Single Effect |
|
Nr.stages |
2 |
|
|
Stroke |
102 mm |
|
|
1st stage cylinder dia. |
130 mm |
|
|
2nd stage cylinder dia. |
76.2 mm |
|
|
Dimension(L × W × H) |
1920 × 795 × 1135 mm |
|
|
Weight |
550 kg |
|
|
Delivery connector |
1/2 ” N PT |
Check Valve On Outlet |
Guaranteed value of compressor performanc e
+/-2% rate of flow , +/-4% Power consumption
Equipment introduction
1. Automatic Pressure Unloading System,For No Load Starting
2. Motocompressor On Mentallic Skid
3. Set Bullt According To EU Standards
Three-cylinder Compressor
Equipment features
In “ W ” Frame Arrangement, Air Cooled,Single Effect,Three-stage Compression,Fitted With:
1. Intake Removable Filter, With Silencer
2. Normal Inertia Flywheel,For V Belts Transmission
3. Splashing Lubrication To All Moving Parts
4. Light Alloy Pistons,With PTFE Based Segments
5. Cylinder Heads,With Indi v idual Valve Pockets
6. Hoerbiger Type Automatic Valves,Big Flow Area,Operating Much Below Their Nominal Characteristics.
7. SKF Main Ball Bearing On The End Of The Crankshaft
8. Two Chamber Blocks Between Casing And Cylinders.Cylinder Side Chamber Is Large Enough To Avoid The Piston Rod Part In Contact With The Mechanical Element Could Get In Contact With The Packing
9. Air-cooled A ftercooler,Furnished With Safety Valve.

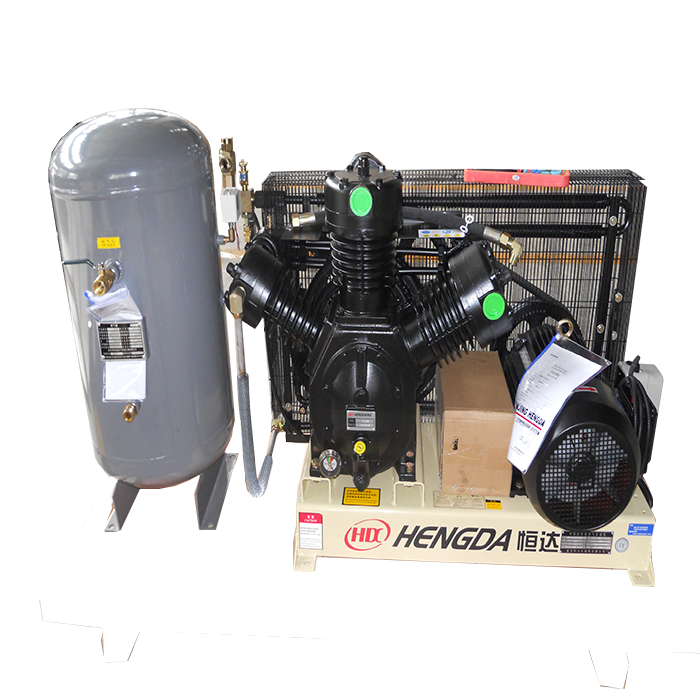

Pictures for reference
