Quick Details
-
Instruction for use:
-
Installation Drawing
-
Model Number:
-
ST8X50
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Tunnel greenhouse
-
Application:
-
Growing Tomato, cucumber, peper
-
Features:
-
Easy Assembled
-
Width:
-
6m-10m
-
Length:
-
10-100m
-
Height:
-
3.5-5M
-
Frame material:
-
Hot Dip Galvanized Steel Tube
-
Covering:
-
150/200micro Film
-
Ventilation:
-
Roof Ventilation+side Ventilation
-
Optional system:
-
Cooling System,irrigation System
Quick Details
-
Size:
-
Small
-
Type:
-
Single-Span Agricultural Greenhouses
-
Manufacturer:
-
Shine-tech
-
Instruction for use:
-
Installation Drawing
-
Model Number:
-
ST8X50
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Tunnel greenhouse
-
Application:
-
Growing Tomato, cucumber, peper
-
Features:
-
Easy Assembled
-
Width:
-
6m-10m
-
Length:
-
10-100m
-
Height:
-
3.5-5M
-
Frame material:
-
Hot Dip Galvanized Steel Tube
-
Covering:
-
150/200micro Film
-
Ventilation:
-
Roof Ventilation+side Ventilation
-
Optional system:
-
Cooling System,irrigation System
Product Description

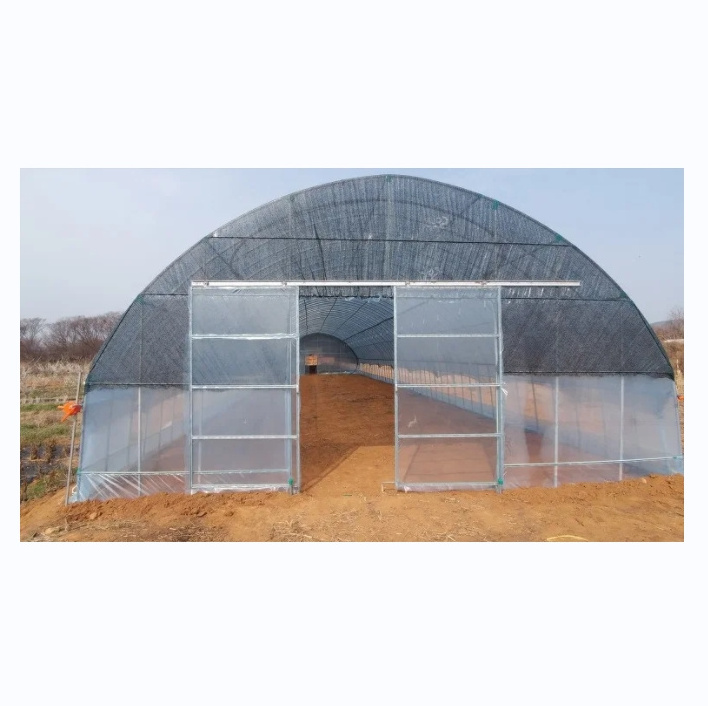

High tunnel greenhouse
Tunnel film greenhouse
is a simple and practical protective cultivation facility, widely be used all over the world because of its easy construction, easy use and low investment for vegetable and flower productions.
Specification
|
Single-Span PE Plastic Film Greenhouses Poly tunnel greenhouse for sale
|
|
|
|
Product Name
|
Single Span Tunnel Greenhouse
|
|
|
Span width
|
8m
|
|
|
Arch distance
|
50m
|
|
|
Height of Greenhouse
|
3.5-5m (customization)
|
|
|
Covering
|
150/200 micron PE/PO Film
|
|
|
Wind load
|
45km/m2
|
|
|
Snow load
|
0.25~0.30KN/m2
|
|
|
Max. rainfall
|
140mm/h
|
|
|
Hanging load
|
14kgkg/m2
|
|
|
Optional system
|
Side ventilation, roof ventilation, shading net, drip irrigation system, fogging system, cooling system, etc.
|
|
Details Images
Frame
25mm/32mm/ 42mm /60mm diameter, thick 1.5mm, 2.0mm, hot dip galvanized steel pipe
The greenhouse structure is installed directly by screws or self drill screws.
The warranty period of frame is 15~20 years
The warranty period of frame is 15~20 years
Covering
Thickness: 120/150/200 microns.
It has function of anti-UV, anti-aging and anti-drip.
Light transmission:>89%
Light transmission:>89%
Diffusion≤20%
UV transmission 300%-390%
Warranty: 4-5 years
UV transmission 300%-390%
Warranty: 4-5 years
Ventilation System
The side ventilation or top ventilation system are both available according to your requirement .
40mesh insect net will be offered for vents
Locking profile system
The film lock accessories is mainly including lock channel and wiggle wire, self drill screw.
Lock channel is usually 5m/5.8m/6m
wiggle wire is 2meter, packed by cartoon. each cartoon is 500pcs.
wiggle wire is 2meter, packed by cartoon. each cartoon is 500pcs.
Anti-insect net
The Anti Insect Net is made by 100% virgin HDPE with stable UV. It provides protection from range of insects that can be harmful. This preventive method reduces the cost of pesticides to grow organic and natural cultivation.
Other options for tunnel greenhouse
Shading system---Black shade net
Cooling System--- Exhaust fan
Spraying system
Drip irrigation system
