Quick Details
-
Brick size:
-
Other, can be cut as required, 600x100x200, 600x125x200, 600x150x200
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hongfa
-
Voltage:
-
220V-415V
-
Dimension(L*W*H):
-
6.0*1.2*0.6M
-
Weight (KG):
-
400000 kg
-
cutting machine technical:
-
Germany YTONG technical
-
mould material:
-
U Steel 140mm
-
material:
-
Sand AAC & Flyash AAC
-
Capacity:
-
from 30,000-300,000m3
-
mold weight:
-
2.8T
-
AAC block body size:
-
4.2-4.8-6M
-
mold thickness:
-
10mm
-
side plate thickness:
-
12mm
-
working area:
-
10000m2-20000m2
Quick Details
-
Type:
-
Autoclaved aerated concrete block (AAC), AAC Block Making Machine
-
Brick Raw Material:
-
sand
-
Production Capacity (Pieces/8 hours):
-
50000~300000M3/Year
-
Brick size:
-
Other, can be cut as required, 600x100x200, 600x125x200, 600x150x200
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hongfa
-
Voltage:
-
220V-415V
-
Dimension(L*W*H):
-
6.0*1.2*0.6M
-
Weight (KG):
-
400000 kg
-
cutting machine technical:
-
Germany YTONG technical
-
mould material:
-
U Steel 140mm
-
material:
-
Sand AAC & Flyash AAC
-
Capacity:
-
from 30,000-300,000m3
-
mold weight:
-
2.8T
-
AAC block body size:
-
4.2-4.8-6M
-
mold thickness:
-
10mm
-
side plate thickness:
-
12mm
-
working area:
-
10000m2-20000m2
Product Description
AAC (Autoclave aerated concrete) block Main raw materials of AAC are siliceous material (sand, fly ash and Silicon) and Calcium materials (lime and cement) mixed with foaming agent (aluminum powder). It is the product of light porous silicate through the following processes: batching, mixing, pouring, hardening, cutting, autoclave and steaming etc. Because of large amount of well-distributed tiny pores after foaming, it is named autoclave aerated concrete.. It's a new type building materials of light,environmental,energy saving and so on. They could be used industry building and common building.Now,it is welcomed by more and more countries.
Advantages
Production process
AAC Gas Block Plant Running Process
1.
AAC block raw material process and storage
To make a the rational design of the raw materials process treatment and storage areas.
2. Batching&Weighing and Pouring
Batching and Weighing the dry powder material and sand slurry ,then
by the corresponding automatic metering metering, Batching and Weighing the dry powder material and sand slurry ,then by the corresponding automatic metering，high-speed mixing by inside of pouring mixer. after pouring into the mold box. The entire system PLC automated control to ensure material metering accurate and efficient operation.
by the corresponding automatic metering metering, Batching and Weighing the dry powder material and sand slurry ,then by the corresponding automatic metering，high-speed mixing by inside of pouring mixer. after pouring into the mold box. The entire system PLC automated control to ensure material metering accurate and efficient operation.
3. Curing hardening and cutting
Static stop curing in the curing room with temperature is 40-50degree. usually curing 3 hours for Sand slurry,the flyash curing time will be shorter about 1.5~2hours
4. Aerated steaming and finished products package system
After autoclave steaming , AAC finished blocks obtain the finalstrength and performance.
the separator will running and make the sticky finished block separately, then go into the finished blocks packaging system.
AAC Block Introduction
Technical Paramenters
Ball Mill : Milling Lime into dry powder and sand into wet slurry
|
Type
|
Diameter mm
|
Length mm
|
Productivity
|
Feeeding size
|
Power(KW)
|
|
Φ1200x4500mm
|
1200
|
4500
|
3-4t/h
|
≤20mm
|
55
|
|
Φ1500x5700mm
|
1500
|
5700
|
6-8t/h
|
≤20mm
|
130
|
|
Φ1830x7000mm
|
1830
|
7000
|
8-17t/h
|
≤20mm
|
245
|
|
Φ2200x8000mm
|
2200
|
8000
|
18-20t/h
|
≤20mm
|
380
|
|
|
|
|
|
|
|
2. Slurry Pouring Mixer
To mix the sand ,slurry,lime,cement and aluminium paste into balance after measuring
|
Mixer type
|
Motor power
|
Mixer drum volume
|
Blade diameter
|
Blade speed
|
|
Diversion drum type
|
30kw
|
V=3.6m3
|
Φ560mm
|
560r/min
|
|
Diversion drum type
|
37kw
|
V=4.5m3
|
Φ630mm
|
560r/min
|
Mold Box
There are 4.2 M,4.8M ,6.0M there types sizes mold box can meet different capacity
|
Mold Inner Size (AAC block body net size)
|
Maximum overall size
|
|
|
||
|
|
Length(mm)
|
Width(mm)
|
Height(mm)
|
||
|
4.2x1.2x0.6M
|
4720
|
1735
|
1078
|
||
|
4.8x1.2x0.6M
|
5320
|
1735
|
1078
|
||
|
6x1.2x0.6M
|
6550
|
1750
|
1085
|
||

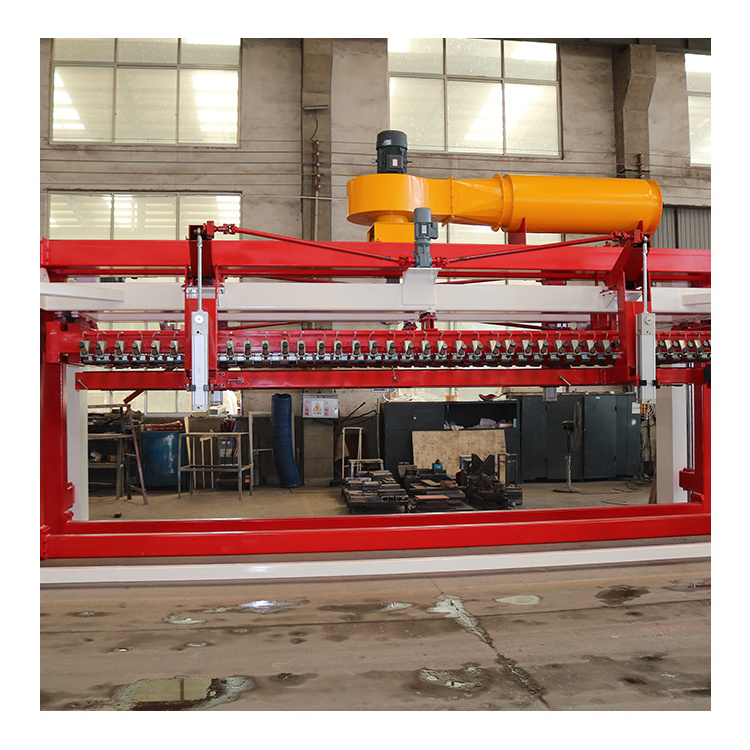

Cutting Machine
Horizontal cutting machine
|
SIZE (Meter)
|
Min spacing of wires(mm)
|
Range of swing(mm)
|
Diameter of cutting wire(mm)
|
|
4.2X1.2X0.6
|
10mm
|
7.5
|
Diameter 0.6~1.0
|
|
4.8X.1.2X0.6
|
10mm
|
7.5
|
Diameter0.6~1.0
|
|
6.0x1.2x0.6
|
10mm
|
7.5
|
Diameter 0.6~1.0
|
Vertical Cutting Machine
Vertical cutting Machine technical parameter
|
SIZE (Meter)
|
Min spacing of wires (mm)
|
Diameter of cutting wires(mm)
|
|
|
|
|
|
diameter of wires(mm)
|
For side trimming(mm)
|
|
|
4.2x1.2x0.6
|
5
|
0.6~0.8
|
0.8
|
|
|
4.8X.12.X0.6
|
5
|
0.6~0.8
|
0.8
|
|
|
6.0X1.2X0.6
|
5
|
0.6~0.8
|
0.8
|
|
Flip Crane Hoist
overturning crane hoist transfer the cured AAC block body to cutting area
Finished AAC blocks Separator
Separating each sticky layers AAC blocks
Autoclave
Steaming cut AAC blocks to reach the required strength
