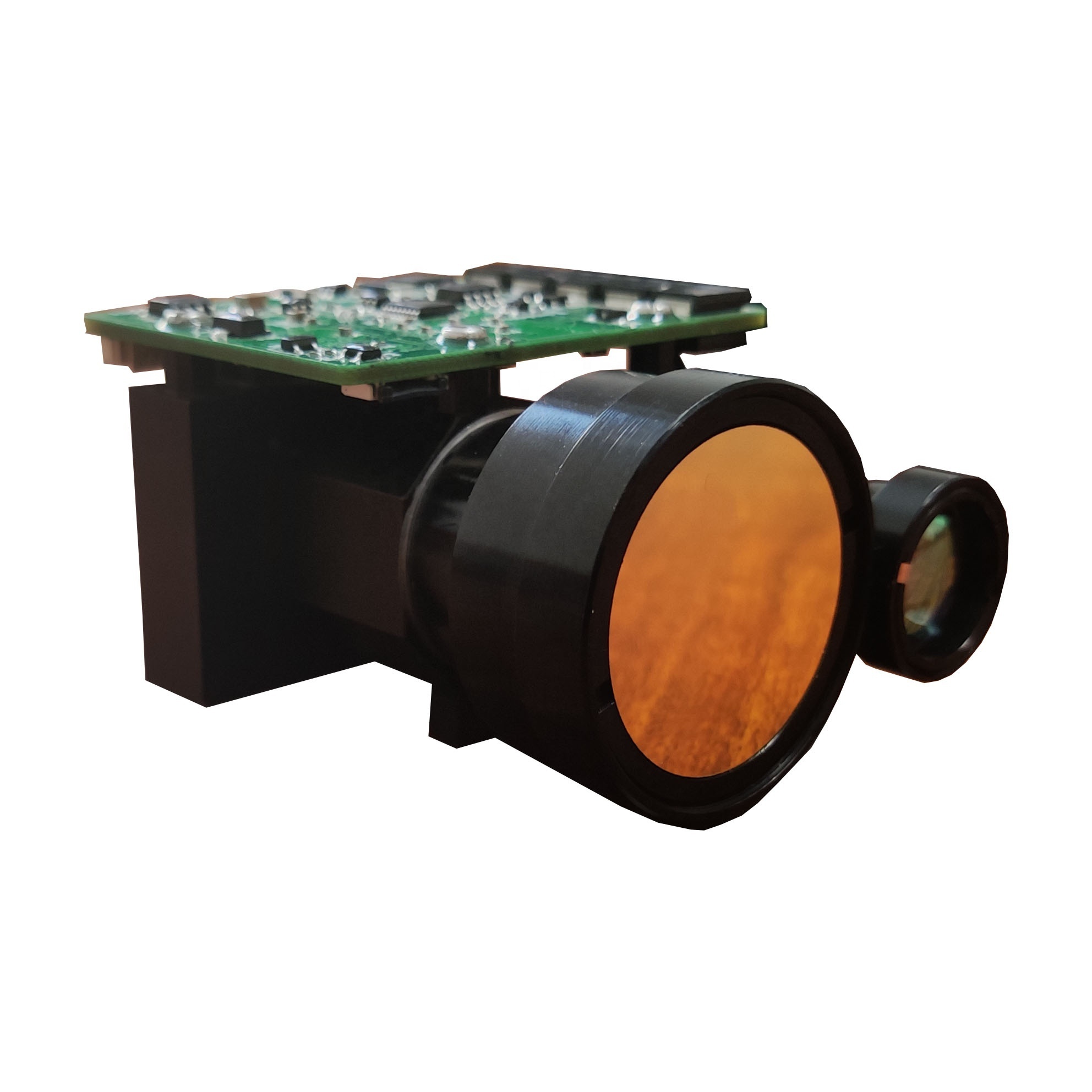

1535nm wave length class 1 laser, human eye safety, 10km laser rangefinder module

1535nm wave length class 1 laser, human eye safety, 10km laser rangefinder module

FOB Reference Price: Get Latest Price

≥1 Sets

US $4500

≥5 Sets

US $4100

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Gloryvision

Model Number:: HSH-GV LFR-10

Ranging accuracy:: <1m(RMS)

Ranging ability:: 10km

Min range finding:: < 50m

Repetition frequency:: Once,1Hz ,5Hz,10Hz optional

Measurement accuracy::: > 98%

Power supply:: DC12V

Wave length:: 1535nm

Weight:: 100g

Quick Details

Warranty:: 1 years

Size:: 66.5mmx37mmx53mm

Place of Origin:: Shandong, China

Brand Name:: Gloryvision

Model Number:: HSH-GV LFR-10

Ranging accuracy:: <1m(RMS)

Ranging ability:: 10km

Min range finding:: < 50m

Repetition frequency:: Once,1Hz ,5Hz,10Hz optional

Measurement accuracy::: > 98%

Power supply:: DC12V

Wave length:: 1535nm

Weight:: 100g

Product Description

Model	HSH-LRF1535-10K
Wave-length	1535nm
Type of light source	Semiconductor pumping
Ranging Ability	50m～10000m (Refers to visibility>16km, reflectivity>0.5, ranging ability of natural objects)
Distance gate	Communication command
Accuracy	±1m
Frequency	1Hz/5Hz/10Hz

Accuracy rate	98%
Dimension	66.5mm × 37mm × 53.5 mm
Weight	100g
Power	DC12V
Communication	RS422
Working Temperature	-40℃～+60℃
Storage Temperature	-55℃～+75℃
Anti-impact	30g

Environmental Rating	IP67
Battery Type	2 x CR123A/RCR123A
Battery Life	7 hrs
Battery Life Display	Support
Reserve charging	Support
Interface	Type-C
Dimension	varies for different config(please contact us)
Net Weight	＜600g
Working temperature	-20°C - +55°C

Packing&Shipping

The thermal hunting scope is packaged with safety case.

After Sales Service

Our service

1. We offer 1 years warranty to the devices.

2. No MOQ required, sample order welcomed to see our device effect.

3. OEM/ODM available from us.

4. In time pre-sale & after-sale serivce, any of your inquiry/RFQ will be highly attentioned.

FAQ

How to get the latest price?

You can contact sales online to get latest price; Or you can leave message to us. Our sales will contact you as soon as possible. And the price we provide is normally FOB price.

What is MOQ?

Our minimum order quantity is 1 pc.

What is the lead time?

Please contact sales to confirm if we still have goods in stock. If yes, we will ship goods to you in one week time after we receive your payment. If not, please confirm with sales.

How to ship goods to customer?

Usually we ship goods to customer via express, such as DHL, FedEx, UPS, TNT or airway transportation. You can also ask us to send goods to your forwarder in China. And we will pay domestic freight.

Do you provide customization service?

Yes, we provide OEM/ODM service. Lead time of customized products need to be confirmed with sales. Usually we will ship products after 2 months time after we receive customer's payment.

Our Advantages

Various configurations are optional and customizable

1. Cameras can be configured according to the specific requirements of the project;

2. Different modules can be selected according to the project budget;

3. OEM and ODM are available;

4. New products can also be jointly developed

Modular design, easy maintenance

1. Device firmware can be upgraded remotely, and engineers can remotely solve device program failures

2. Hardware modular assembly, people with basic electrical knowledge can realize the replacement of faulty modules. Greatly saves the time and cost of maintenance. 3. In normal use, cleaning and maintenance are simple, and there is almost no additional cost
