Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1200 mm
-
Travel (Y Axis)(mm):
-
1800 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
1.5KW/ 2.2KW /3.0KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LINTCNC
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
230*175*145cm
-
Power (kW):
-
3
-
Weight (KG):
-
750
-
Warranty of core components:
-
9 months
-
Core Components:
-
Spindle
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Control system:
-
NcStudio Control System
-
Spindle:
-
1.5 Kw Water Cooling Spindle
-
Application:
-
Engraving
-
Working area:
-
1200*1800mm
-
Motor:
-
Stepper Motor 450B
-
Name:
-
Advertising Cnc Engraving Machine
-
Spindle power:
-
1..5KW
-
Transmission:
-
Axis Ball Screw
-
Software:
-
Ucancam / ArtCam/TYPE3
Quick Details
-
Working Table Size(mm):
-
1200*1800
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1200 mm
-
Travel (Y Axis)(mm):
-
1800 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
1.5KW/ 2.2KW /3.0KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LINTCNC
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
230*175*145cm
-
Power (kW):
-
3
-
Weight (KG):
-
750
-
Warranty of core components:
-
9 months
-
Core Components:
-
Spindle
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Control system:
-
NcStudio Control System
-
Spindle:
-
1.5 Kw Water Cooling Spindle
-
Application:
-
Engraving
-
Working area:
-
1200*1800mm
-
Motor:
-
Stepper Motor 450B
-
Name:
-
Advertising Cnc Engraving Machine
-
Spindle power:
-
1..5KW
-
Transmission:
-
Axis Ball Screw
-
Software:
-
Ucancam / ArtCam/TYPE3

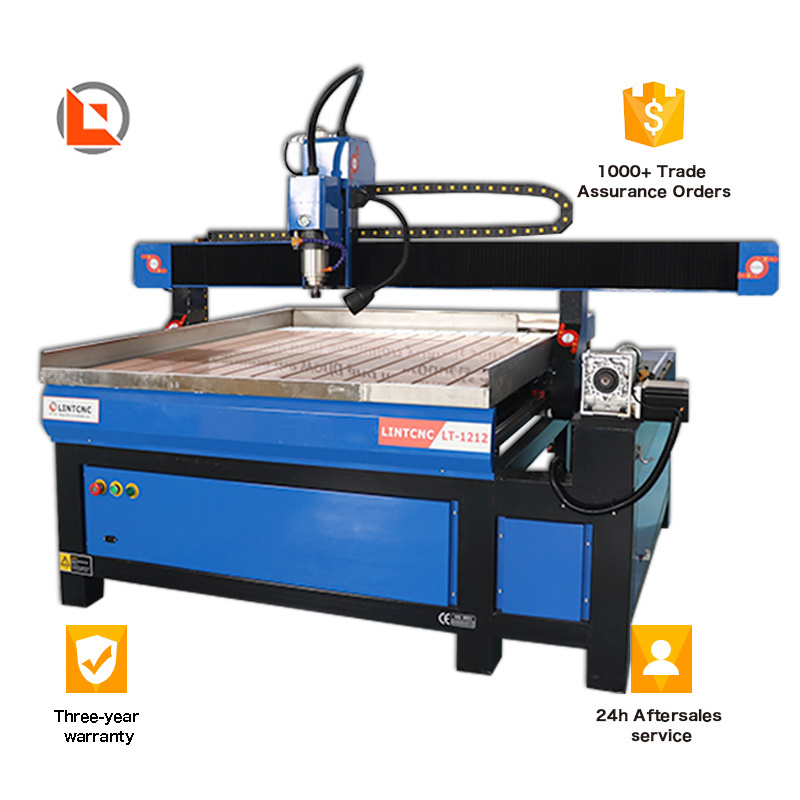

Product Description
Specification
|
Model
|
LT-1212 /LT-1218 /LT-1224 /LT-1325
|
|
Effective working area
|
1200*1800*200mm
|
|
Machine body structure
|
Welded steel tube structure
|
|
Table style
|
Aluminum T-slot table with PVC
|
|
Guide rail
|
Hiwin linear square guide rail
|
|
Driving method
|
Taiwan original TBI ball screw
|
|
Spindle
|
1.5 KW water cooling spindle
|
|
Inverter
|
ET inverter
|
|
Collect size
|
ER16
|
|
Spindle speed
|
0-24000rpm
|
|
Motors and drivers
|
86BYG-450B Stepper motors and MA860H Leadshine drivers
|
|
Control system
|
Ncstudio control system
|
|
Working accuracy
|
<0.03/300mm
|
|
Working speed
|
<7000mm/min
|
|
Traveling speed
|
0-7000mm/min
|
|
Instruction format
|
G code *.u00 *.mmg *.plt
|
|
Working voltage
|
AC220V, Single phase, 50-60Hz
|
|
Standard software
|
Artcam 2010
|
|
Compatible software
|
Type3/Castmate/Coreldraw/AutoCAD or other CAM/CAD software
|
|
Environment temperature
|
0-45℃
|
|
Environment humidity
|
30%-75% No coagulate water
|
|
Tool sensor
|
Yes
|
Feedback and Sample
1. Furniture Industry:
Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Mold Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Mold Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
Feedback
Please
click
and view the feedback video from our customers.
Our services
1.Guarantee:
3 years guarantee of the whole machine+1.5 years warranty for motor and spindle
2.Software issue:
Supply technical support for machine lifetime free.
3.Hardware issue:
Main parts(excluding the consumables) shall be replaced/ repaired free of charge if there is any problem during the warranty period.
4.Support online:
our engineer give 1 hours to solve question online.
5.Training in LINTCNC factory:
We are able to train your staff after placed order in our factory for free.
6.Oversea service:
We are able to send technician to your workshop to do the installation and training. You will need bear the
related costs. (flight,visa,hotel,training costs, etc.)
2.Software issue:
Supply technical support for machine lifetime free.
3.Hardware issue:
Main parts(excluding the consumables) shall be replaced/ repaired free of charge if there is any problem during the warranty period.
4.Support online:
our engineer give 1 hours to solve question online.
5.Training in LINTCNC factory:
We are able to train your staff after placed order in our factory for free.
6.Oversea service:
We are able to send technician to your workshop to do the installation and training. You will need bear the
related costs. (flight,visa,hotel,training costs, etc.)
