- Product Details
- {{item.text}}
Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, LAS, DXP, CDR
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KT Laser
-
Dimension(L*W*H):
-
140*57*97cm
-
Weight (KG):
-
107 KG
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
Function:
-
Cutting Engraving Non-metal Materials
-
Laser power:
-
60W/80W/100W/130W/150W
-
After-sales Service Provided:
-
Online Support
-
Laser tube:
-
RECI EFR
-
Support material:
-
MDF Acrylic Glass Wood Plastic
-
After Warranty Service:
-
Online Video Technology
-
Engraving materials:
-
Wood Plastic Acrylic Leather Fabric
-
Power supply:
-
220V/50HZ 110V/60HZ
-
Laser tube type:
-
CO2 Sealed Glass Laser Table
Quick Details
-
Engraving Area:
-
400mm*600mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
500mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, LAS, DXP, CDR
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KT Laser
-
Dimension(L*W*H):
-
140*57*97cm
-
Weight (KG):
-
107 KG
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
Function:
-
Cutting Engraving Non-metal Materials
-
Laser power:
-
60W/80W/100W/130W/150W
-
After-sales Service Provided:
-
Online Support
-
Laser tube:
-
RECI EFR
-
Support material:
-
MDF Acrylic Glass Wood Plastic
-
After Warranty Service:
-
Online Video Technology
-
Engraving materials:
-
Wood Plastic Acrylic Leather Fabric
-
Power supply:
-
220V/50HZ 110V/60HZ
-
Laser tube type:
-
CO2 Sealed Glass Laser Table
Product Description

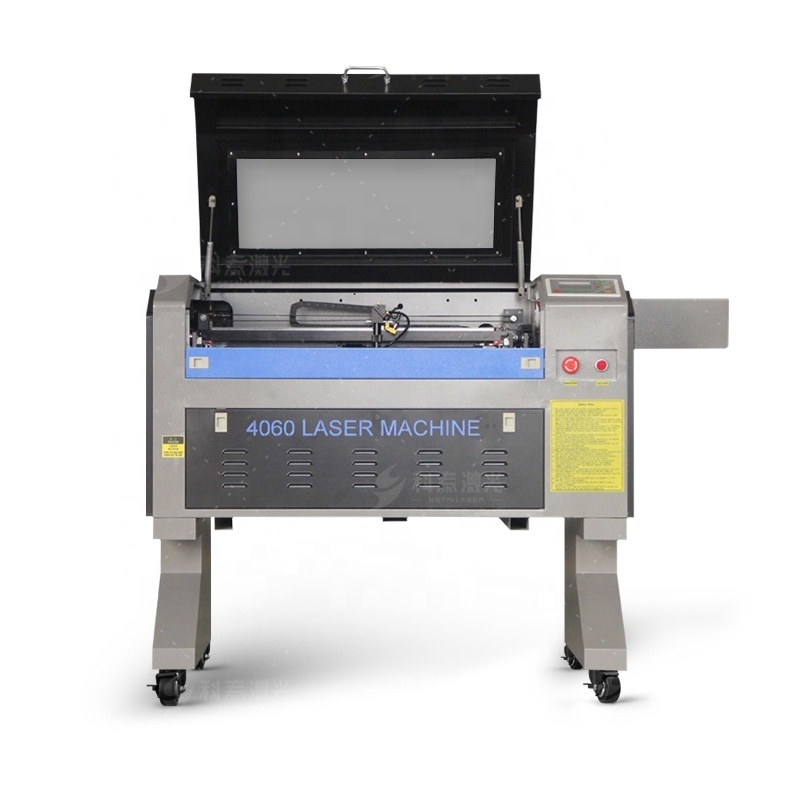

4060/6040 Laser engraving and cutting machine
CO2 laser cutter can engrave and cut non metal materials such as paper, acrylic, wood, double-color board, ABS board, rubber, plastic, glass, leather, etc. it is widely used in acrylic processing, cloth, leather, toys, computer embroidery cutting, mould, crafts, bamboo and wood, advertising and building decoration, packaging and printing, paper products industries.
1.
Adopting the imported laser head, it has the advantages of high processing accuracy, high speed and low noise.
2.
Equipped with the protection cover, it not only guarantees the personal safety of the operator, and also makes the entire processing production more environmentally friendly.
3.
With High processing accuracy and the processing accuracy can reach 0.02 mm.
4.
The wiring is professional and firm, clean and tidy, and the conduction quality is high.
5.
Worktable: electric lifting worktable,the worktable can be up and down.
6.
Auxiliary blowing system, which quickly reduces the temperature of the material cutting part and prevents the material from smearing and cutting the deformation
Specification
|
Model
|
KT-4060
|
|
Worktable
|
Honeycomb
|
|
Eneraving area
|
400mm*600mm
|
|
Laser Power
|
60W/80W/100W/50W/130W/150W
|
|
Engraving Speed
|
500mm/s Max
|
|
Engraving Depth
|
3mm-10mm（depends）
|
|
Cutting Speed
|
500mm/s
|
|
Up and down work table
|
Ec Up and down 250mm adjustable
|
|
Minimum Shaping Character
|
1 mm*1mm
|
|
Resolution Ratio
|
0.0254mm (1000dpi)
|
|
Power Supply
|
220V(or110V)+/-10% 50Hz
|
|
Resetting Positioning
|
Accuracy less than or equal to 0.01mm
|
|
Water protecting sensor and alarm
|
Yes
|
|
Graphic Format Supported
|
PLT/DXF/BMP/JPG/GIF/PGN/TIF
|
|
Operation System
|
Windows XP/VISTA/Windows 7/8/10
|
|
Software
|
RDWORKS
|
|
Control Configuration
|
RUIDA 6445G
|
|
Water Cooling(Yes/No)
|
Yes
|
Details
Accessories
Sample
Application range of 4060/6040 laser engraving machine
This machine is suitable to seal engraving, advertisement, art gift, garment, leather, toy, building upholster, computerized embroidery, packing and printing, paper product, garments sampling, large width tailoring, , shoemaking, furniture model industry, craftwork and other industries.
Packing & Delivery
1.We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam,to protect the machine from shaking.For the inside layer, the machine is covered by thickening plastic bag for waterproof.
2.Air-WorthyPacking or Sea Packing which comply with international standard.
